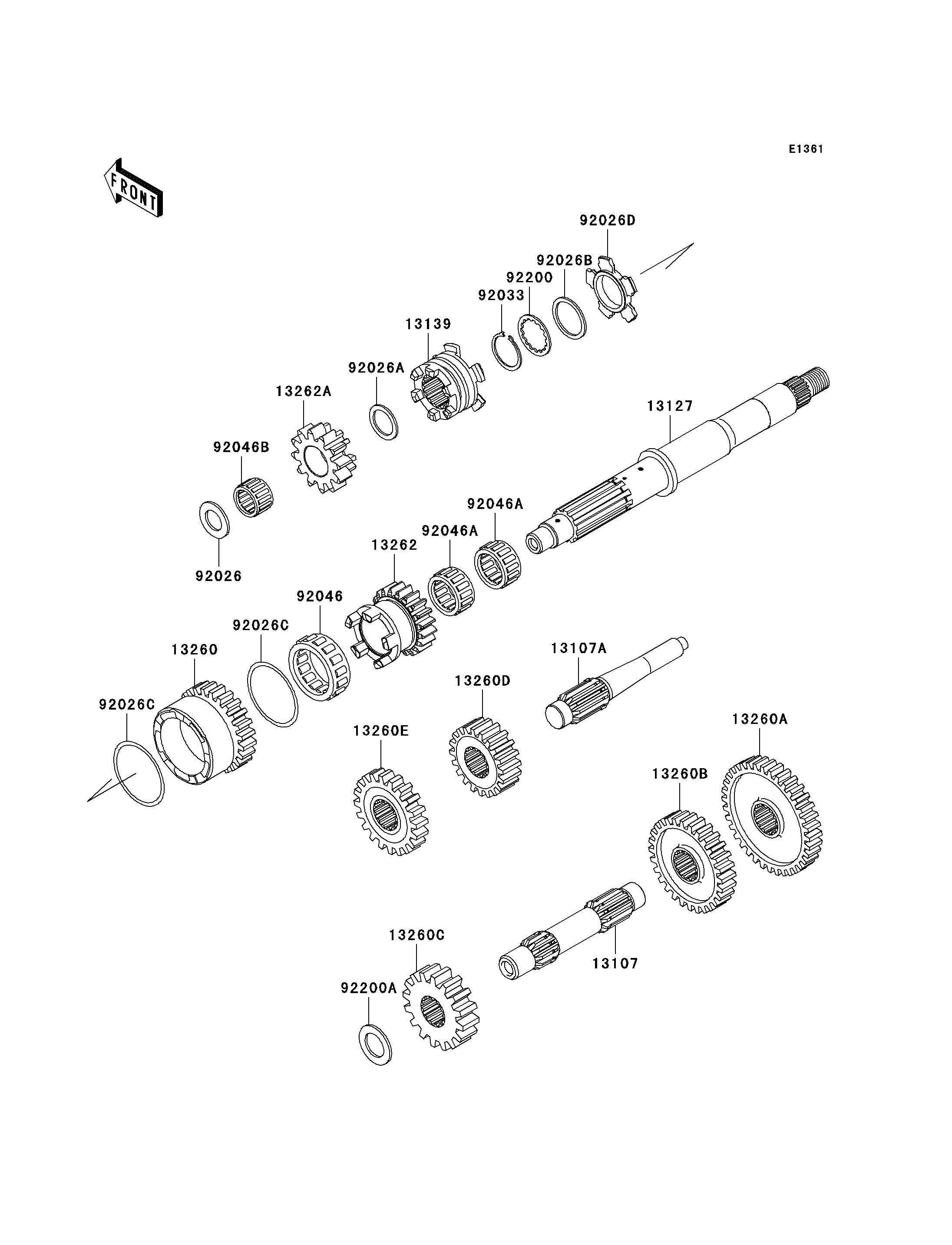

2007 Brute Force 650 4x4 Hardwoods Green HD - Transmission
13107
13107A
13127
13139
13260
13260A
13260B
13260C
13260D
13260E
13262
13262A
92026
92026A
92026B
92026C
92026C
92026D
92033
92046
92046A
92046A
92046B
92200
92200A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SHAFT,COUNTER | 13107 | 13107-0113 | 1 | ||
SHAFT,REVERSE,IDLE | 13107A | 13107-1437 | 1 | ||
SHAFT-TRANSMISSION INPUT | 13127 | 13127-1282 | 1 | ||
SHIFTER | 13139 | 13139-0003 | 1 | ||
GEAR,INPUT HIGH,26T | 13260 | 13260-1867 | 1 | ||
GEAR,DRIVEN LOW,36T | 13260A | 13260-1869 | 1 | ||
GEAR,DRIVEN HIGH,30T | 13260B | 13260-1870 | 1 | ||
GEAR,OUTPUT DRIVE,18T | 13260C | 13260-1871 | 1 | ||
GEAR,OUTPUT REVERSE,16T | 13260D | 13260-1872 | 1 | ||
GEAR,DRIVEN REVERSE,16T | 13260E | 13260-1873 | 1 | ||
GEAR,INPUT LOW,20T | 13262 | 13262-0234 | 1 | ||
GEAR,INPUT REVERSE,12T | 13262A | 13262-0235 | 1 | ||
SPACER,17.3X30X2.0 | 92026 | 92026-1415 | 1 | ||
SPACER,21.2X29X1.6 | 92026A | 92026-1568 | 1 | ||
SPACER,28.2X34.5X1.6 | 92026B | 92026-1587 | 1 | ||
SPACER,48.2X54.3X1.0 | 92026C | 92026-1599 | 2 | ||
SPACER,HI&LOW | 92026D | 92026-1600 | 1 | ||
RING-SNAP,25.9X30.6X1.2 | 92033 | 92033-1037 | 1 | ||
BEARING-NEEDLE,HIGH GEAR | 92046 | 92046-1276 | 1 | ||
BEARING-NEEDLE,FWF-283317 | 92046A | 92046-1278 | 2 | ||
BEARING-NEEDLE,REVERSE GEAR | 92046B | 92046-1279 | 1 | ||
WASHER,28.5X34.0X1.5 | 92200 | 92200-1240 | 1 | ||
WASHER,20.3X33X2.0 | 92200A | 92200-1351 | 1 |
