Parts Diagrams

customer service agent speaking with a customer

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

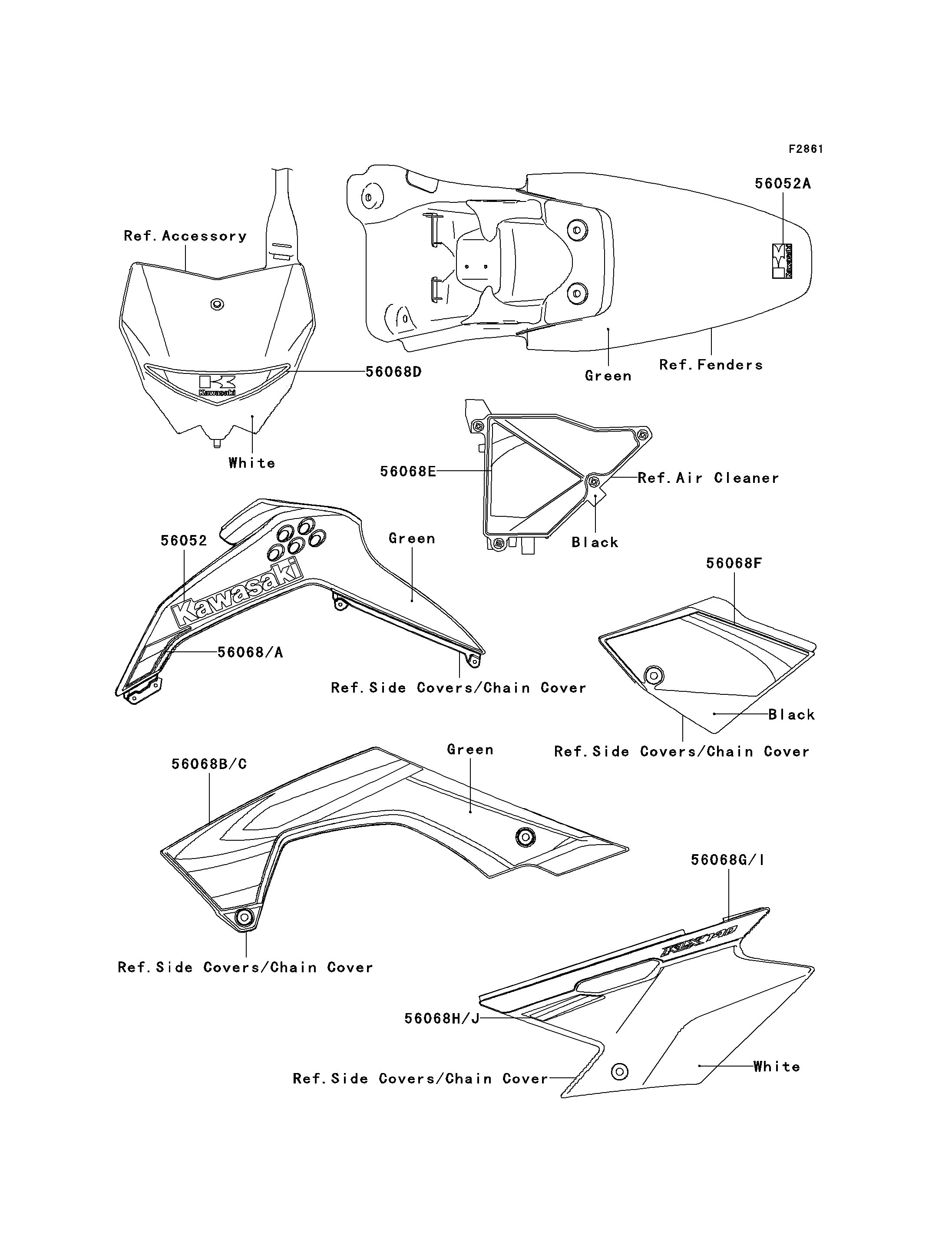

56052
56052A
56068
56068A
56068B
56068C
56068D
56068E
56068F
56068G
56068H
56068I
56068J
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,SHROUD,KAWASAKI 56052 56052-0431 2
MARK,RR FENDER,KAWASAKI 56052A 56052-0968 1
PATTERN,SHROUD,LH 56068 56068-0778 1
PATTERN,SHROUD,RH 56068A 56068-0779 1
PATTERN,SHROUD,LH 56068B 56068-0780 1
PATTERN,SHROUD,RH 56068C 56068-0781 1
PATTERN,NUMBER PLATE 56068D 56068-0782 1
PATTERN,AIR CLEANER,LH 56068E 56068-0783 1
PATTERN,SIDE COVER,FR,RH 56068F 56068-0784 1
PATTERN,SIDE COVER,UPP,LH 56068G 56068-0785 1
PATTERN,SIDE COVER,LWR,LH 56068H 56068-0786 1
PATTERN,SIDE COVER,UPP,RH 56068I 56068-0787 1
PATTERN,SIDE COVER,LWR,RH 56068J 56068-0788 1
