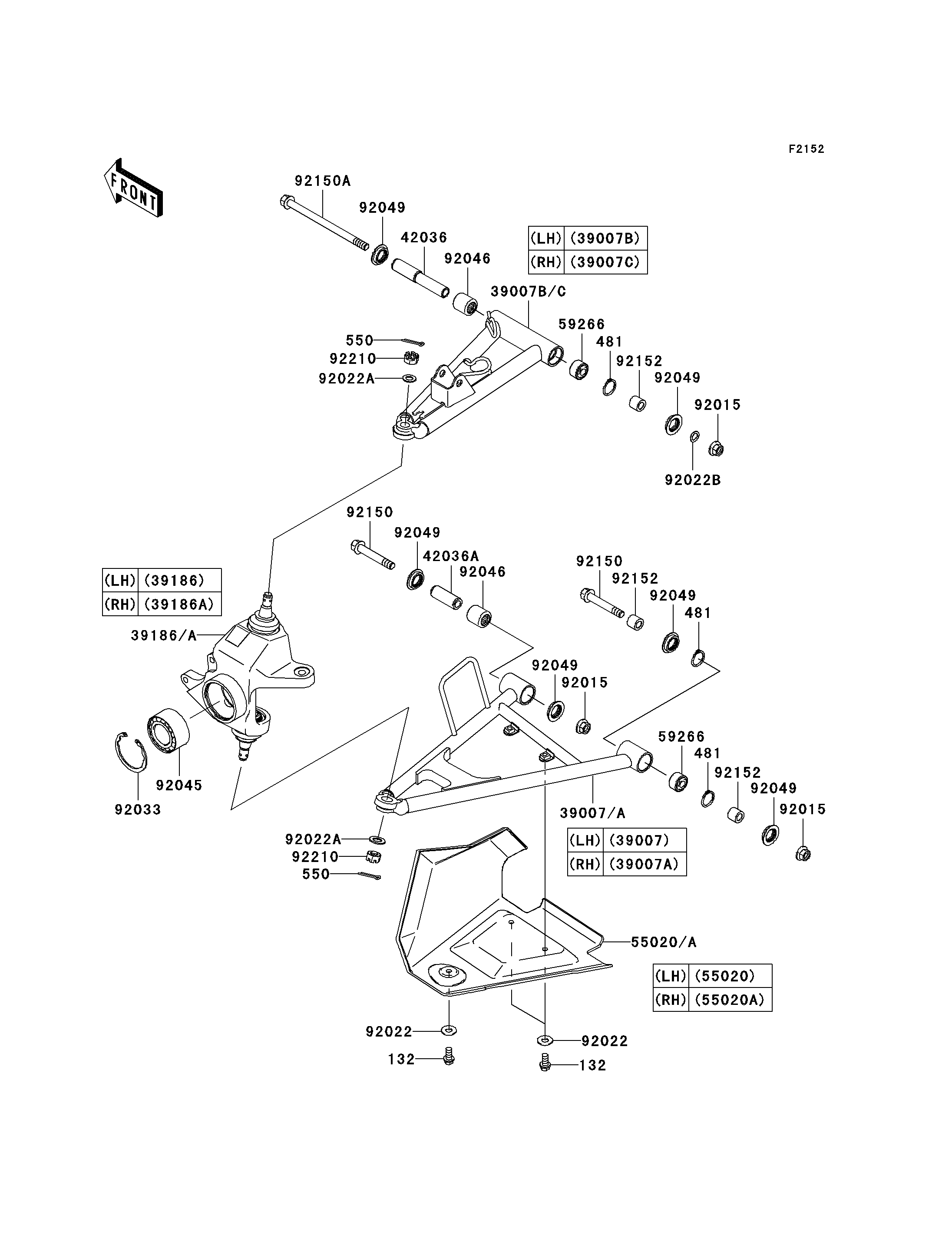

2007 Brute Force 650 4x4i Hardwoods Green HD - Front Suspension
132
132
481
481
481
550
550
39007
39007A
39007B
39007C
39186
39186A
42036
42036A
55020
55020A
59266
59266
92015
92015
92015
92022
92022
92022A
92022A
92022B
92033
92045
92046
92046
92049
92049
92049
92049
92049
92049
92150
92150
92150A
92152
92152
92152
92210
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL,6X12 | 132 | 132BB0612 | 6 | ||
CIRCLIP | 481 | 481J2400 | 6 | ||
PIN-COTTER,3.0X25 | 550 | 550AA3025 | 4 | ||
ARM-SUSP,FR,LWR,LH | 39007 | 39007-0064 | 1 | ||
ARM-SUSP,FR,LWR,RH | 39007A | 39007-0065 | 1 | ||
ARM-SUSP,FR,UPP,LH | 39007B | 39007-0066 | 1 | ||
ARM-SUSP,FR,UPP,RH | 39007C | 39007-0067 | 1 | ||
KNUCKLE ASSY,FR,LH | 39186 | 39186-0033 | 1 | ||
KNUCKLE ASSY,FR,RH | 39186A | 39186-0034 | 1 | ||
SLEEVE,SUSPENSION ARM | 42036 | 42036-0016 | 2 | ||
SLEEVE | 42036A | 42036-1376 | 2 | ||
GUARD,FRONT ARM,LH,F.BLACK | 55020 | 55020-0109-6Z | 1 | ||
GUARD,FRONT ARM,RH,F.BLACK | 55020A | 55020-0110-6Z | 1 | ||
JOINT-BALL | 59266 | 59266-0013 | 4 | ||
NUT,FLANGED,10MM | 92015 | 92015-1415 | 6 | ||
WASHER,7X16X1.2 | 92022 | 92022-024 | 6 | ||
WASHER,12.3X22X1.6 | 92022A | 92022-1065 | 4 | ||
WASHER,10.2X16X1 | 92022B | 92022-1829 | AR | ||
RING-SNAP,55MM | 92033 | 92033-1274 | 2 | ||
BEARING-BALL,30BWD08ACA13 | 92045 | 92045-0095 | 2 | ||
BEARING-NEEDLE | 92046 | 92046-1046 | 4 | ||
SEAL-OIL,MHA17245.7F | 92049 | 92049-1223 | 12 | ||
BOLT,FLANGED,10X63 | 92150 | 92150-1384 | 4 | ||
BOLT,FLANGED,10X150 | 92150A | 92150-1686 | 2 | ||
COLLAR,10X17X14.5 | 92152 | 92152-1455 | 6 | ||
NUT,CASTLE,12MM | 92210 | 92210-0395 | 4 |
BOLT-FLANGED-SMALL,6X12 | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
CIRCLIP | |
REF # | 481 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
PIN-COTTER,3.0X25 | |
REF # | 550 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
ARM-SUSP,FR,LWR,LH | |
REF # | 39007 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ARM-SUSP,FR,LWR,RH | |
REF # | 39007A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ARM-SUSP,FR,UPP,LH | |
REF # | 39007B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ARM-SUSP,FR,UPP,RH | |
REF # | 39007C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
KNUCKLE ASSY,FR,LH | |
REF # | 39186 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
KNUCKLE ASSY,FR,RH | |
REF # | 39186A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SLEEVE,SUSPENSION ARM | |
REF # | 42036 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SLEEVE | |
REF # | 42036A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GUARD,FRONT ARM,LH,F.BLACK | |
REF # | 55020 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUARD,FRONT ARM,RH,F.BLACK | |
REF # | 55020A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
JOINT-BALL | |
REF # | 59266 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT,FLANGED,10MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
WASHER,7X16X1.2 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
WASHER,12.3X22X1.6 | |
REF # | 92022A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER,10.2X16X1 | |
REF # | 92022B |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
RING-SNAP,55MM | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BEARING-BALL,30BWD08ACA13 | |
REF # | 92045 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE | |
REF # | 92046 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SEAL-OIL,MHA17245.7F | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 12 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,10X63 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,10X150 | |
REF # | 92150A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR,10X17X14.5 | |
REF # | 92152 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
NUT,CASTLE,12MM | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
