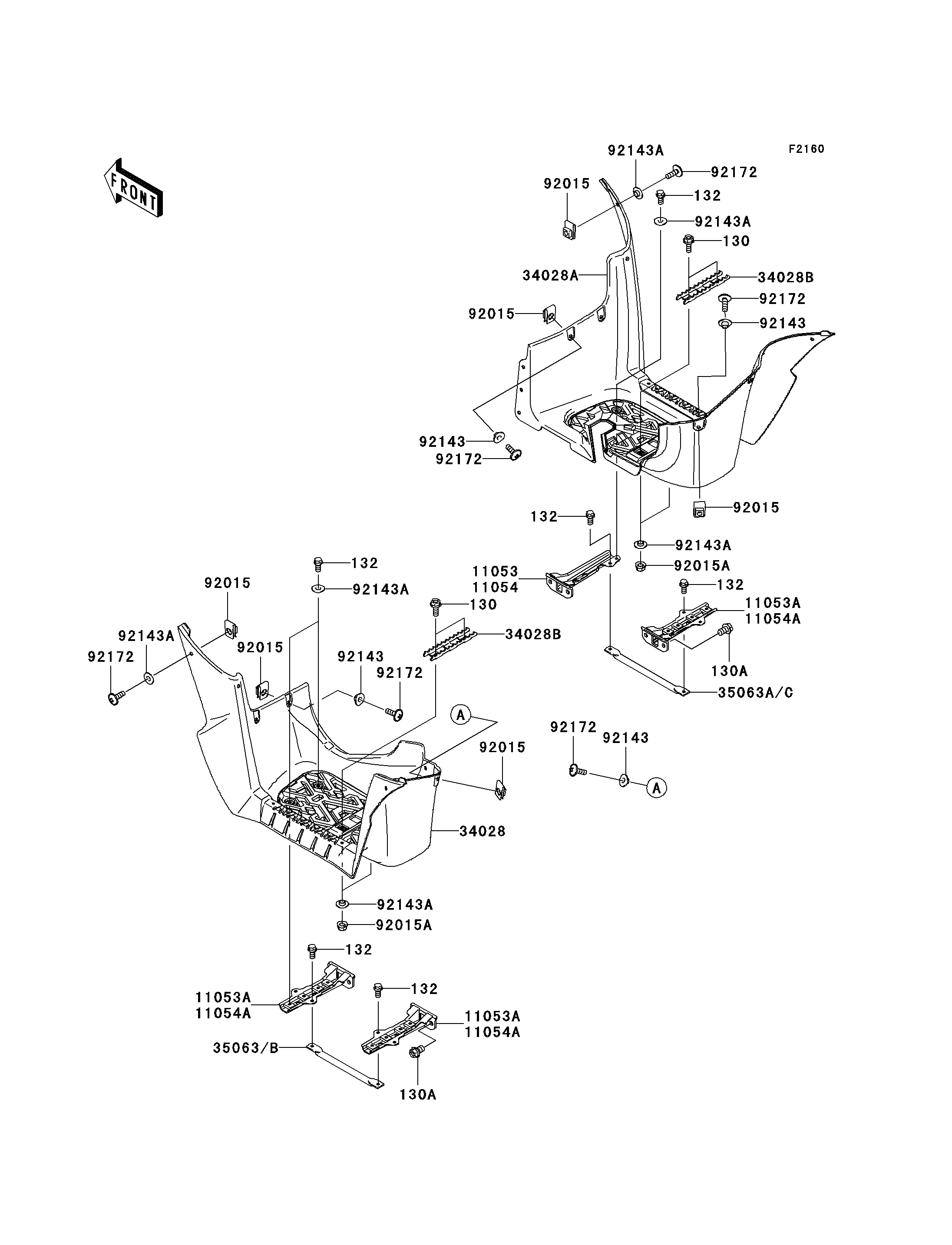

2009 Brute Force 650 4x4i Hardwoods Green HD - Footrests

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
130A
132
132
132
132
132
132
11054
11054A
11054A
11054A
34028
34028A
34028B
34028B
35063B
35063C
92015
92015
92015
92015
92015
92015
92015A
92015A
92143
92143
92143
92143
92143A
92143A
92143A
92143A
92143A
92143A
92172
92172
92172
92172
92172
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16 130 130BB0616 4
BOLT-FLANGED,10X16 130A 130CB1016 8
BOLT-FLANGED-SMALL,6X12 132 132BB0612 11
BRACKET,FOOT BOARD,RH 11054 11054-1229 1
BRACKET,FOOT BOARD 11054A 11054-1232 3
STEP,FOOT BOARD,LH,F.BLACK 34028 34028-0054-6Z 1
STEP,FOOT BOARD,RH,F.BLACK 34028A 34028-0055-6Z 1
STEP,FOOT PEG,F.BLACK 34028B 34028-1487-21 2
STAY,STEP,LH 35063B 35063-0394 1
STAY,STEP,RH 35063C 35063-0395 1
NUT,6MM 92015 92015-1602 17
NUT,LOCK,FLANGED,6MM 92015A 92015-1603 4
COLLAR 92143 92143-1057 4
COLLAR 92143A 92143-1087 24
SCREW,6X18 92172 92172-0002 17
