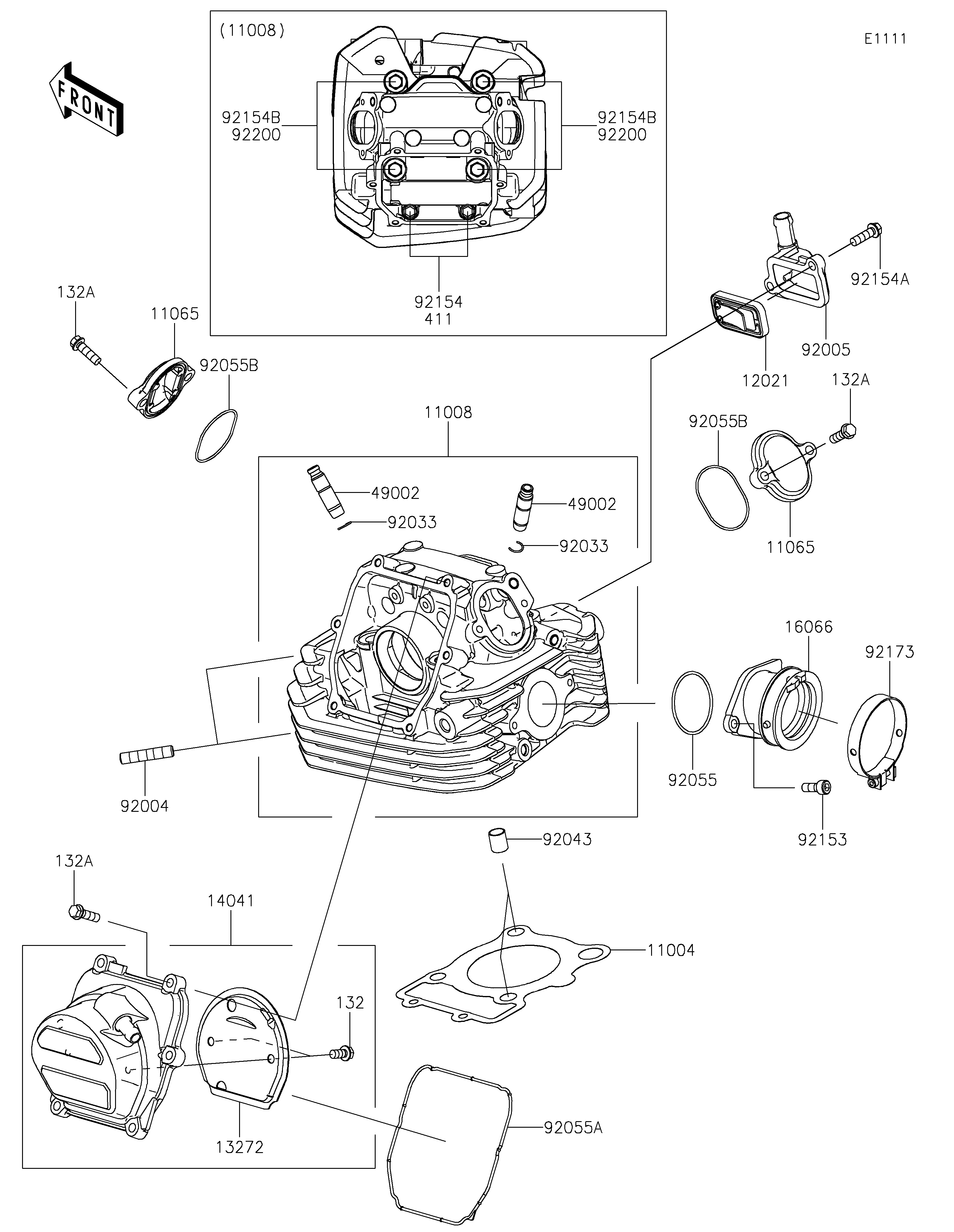

2020 KLX®230R - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
11004
11008
11065
11065
12021
132
13272
132A
132A
132A
14041
16066
411
49002
49002
92004
92005
92033
92033
92043
92055
92055A
92055B
92055B
92153
92154
92154A
92154B
92154B
92173
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-HEAD 11004 11004-0784 1
HEAD-COMP-CYLINDER 11008 11008-0927 1
CAP,VALVE,ADJUSTING 11065 11065-0800 2
VALVE-ASSY-REED 12021 12021-0050 1
BOLT-FLANGED-SMALL,6X12 132 132BD0612 2
PLATE 13272 13272-2616 1
BOLT-FLANGED-SMALL,6X20 132A 132BD0620 10
COVER-COMP,CAM CHAIN 14041 14041-0619 1
HOLDER-THROTTLE BODY 16066 16066-0021 1
WASHER-PLAIN,6MM 411 411AA0600 2
GUIDE-VALVE 49002 49002-0047 2
STUD,8X25 92004 92004-0731 2
FITTING 92005 92005-0911 1
RING-SNAP 92033 92033-1247 2
PIN,10.1X12X14 92043 92043-4009 2
RING-O,42X1.9 92055 92055-0186 1
RING-O 92055A 92055-0897 1
RING-O,ADJUST CAP 92055B 92055-1655 2
BOLT,SOCKET,6X16 92153 92153-1344 2
BOLT,FLANGED,6X130 92154 92154-0993 2
BOLT,FLANGED,6X20 92154A 92154-3802 2
BOLT,FLANGED,10X190 92154B 92154-3910 4
CLAMP 92173 92173-2191 1
WASHER,10.5X19X2.3 92200 92200-0257 4
