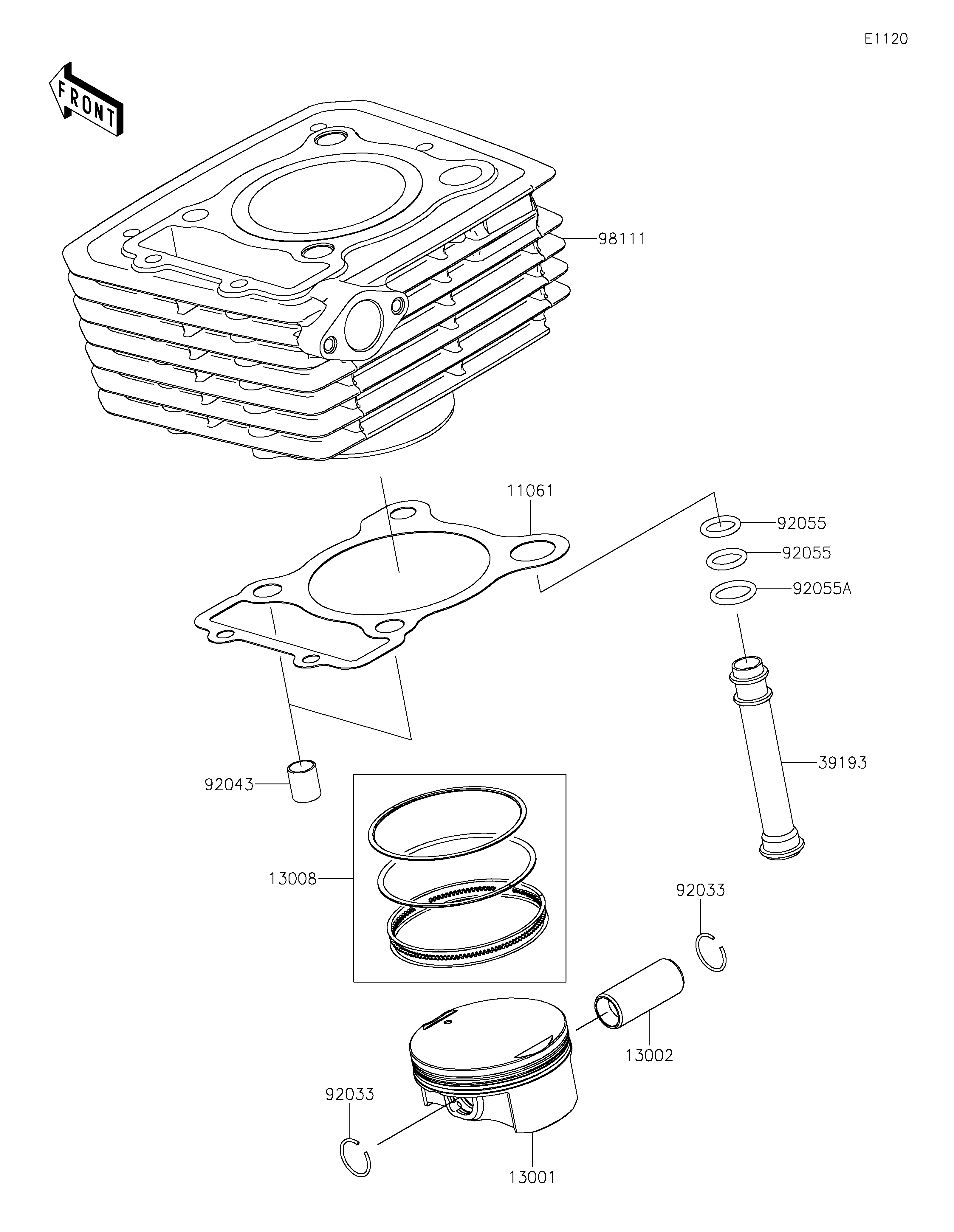

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,CYLINDER BASE 11061 11061-1298 1
PISTON-ENGINE 13001 13001-0804 1
PIN-PISTON 13002 13002-0718 1
RING-SET-PISTON 13008 13008-0580 1
PIPE-OIL 39193 39193-0586 1
RING-SNAP,PISTON PIN 92033 92033-0732 2
PIN,10.1X12X14 92043 92043-4009 2
RING-O,12.3X2.4 92055 92055-0918 2
RING-O,14.8X2.4 92055A 92055-0919 1
CYLINDER-COMP-ENGINE 98111 98111-0046 1
