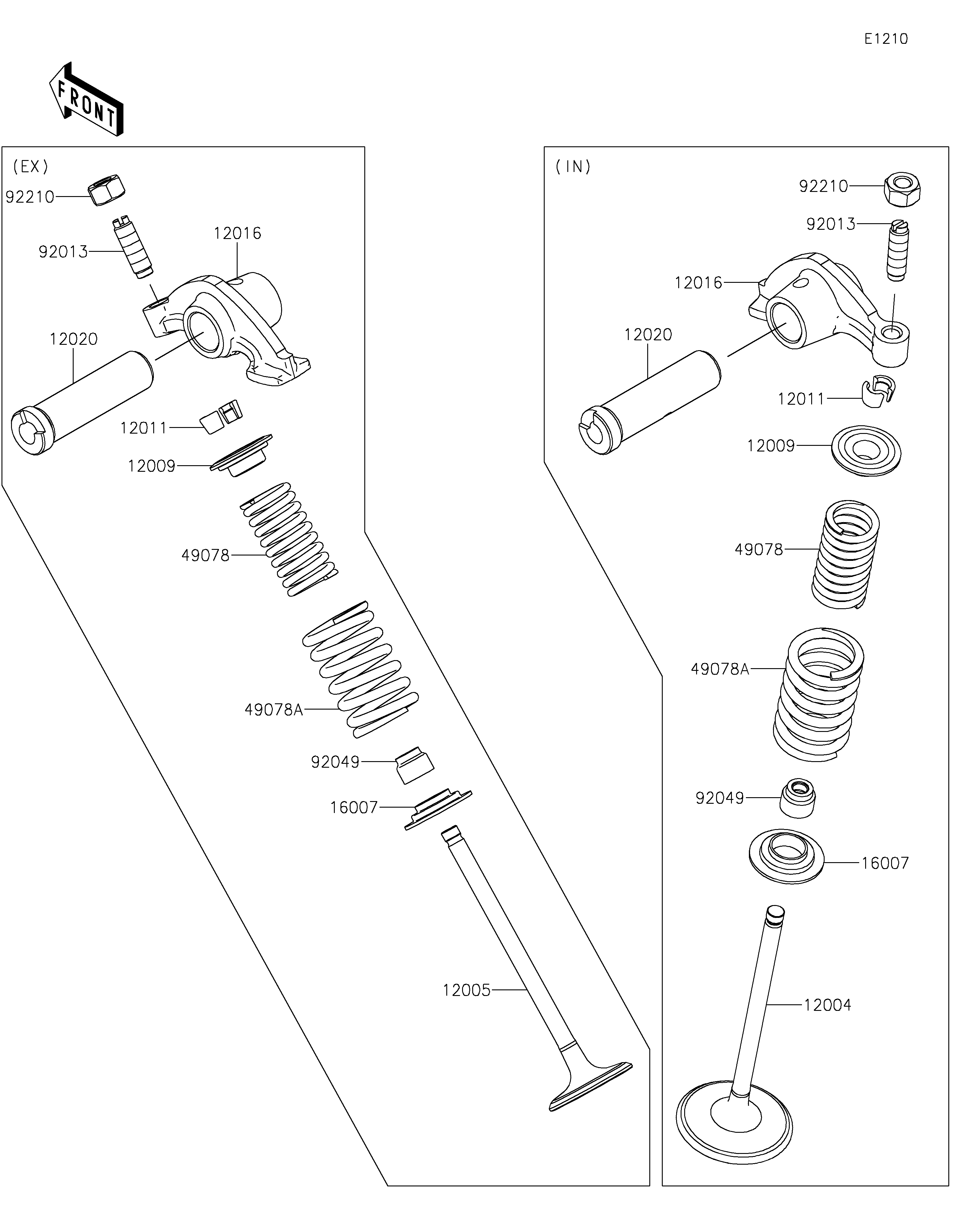

2020 KLX®230R - Valve(s)

DOWNLOAD PDF
SELECT A NEW PART
12004
12005
12009
12009
12011
12011
12016
12016
12020
12020
16007
16007
49078
49078
49078A
49078A
92013
92013
92049
92049
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE-INTAKE 12004 12004-0765 1
VALVE-EXHAUST 12005 12005-0790 1
RETAINER-VALVE SPRING 12009 12009-1054 2
COLLET 12011 12011-1003 4
ARM-ROCKER 12016 12016-0728 2
SHAFT-ROCKER 12020 12020-0027 2
SEAT-SPRING 16007 16007-1163 2
SPRING-ENGINE VALVE 49078 49078-0756 2
SPRING-ENGINE VALVE 49078A 49078-0757 2
SCREW,6MM 92013 92013-009 2
SEAL-OIL,RVC2-5.5X8.5X8.3 92049 92049-1062 2
NUT,6MM 92210 92210-1490 2
