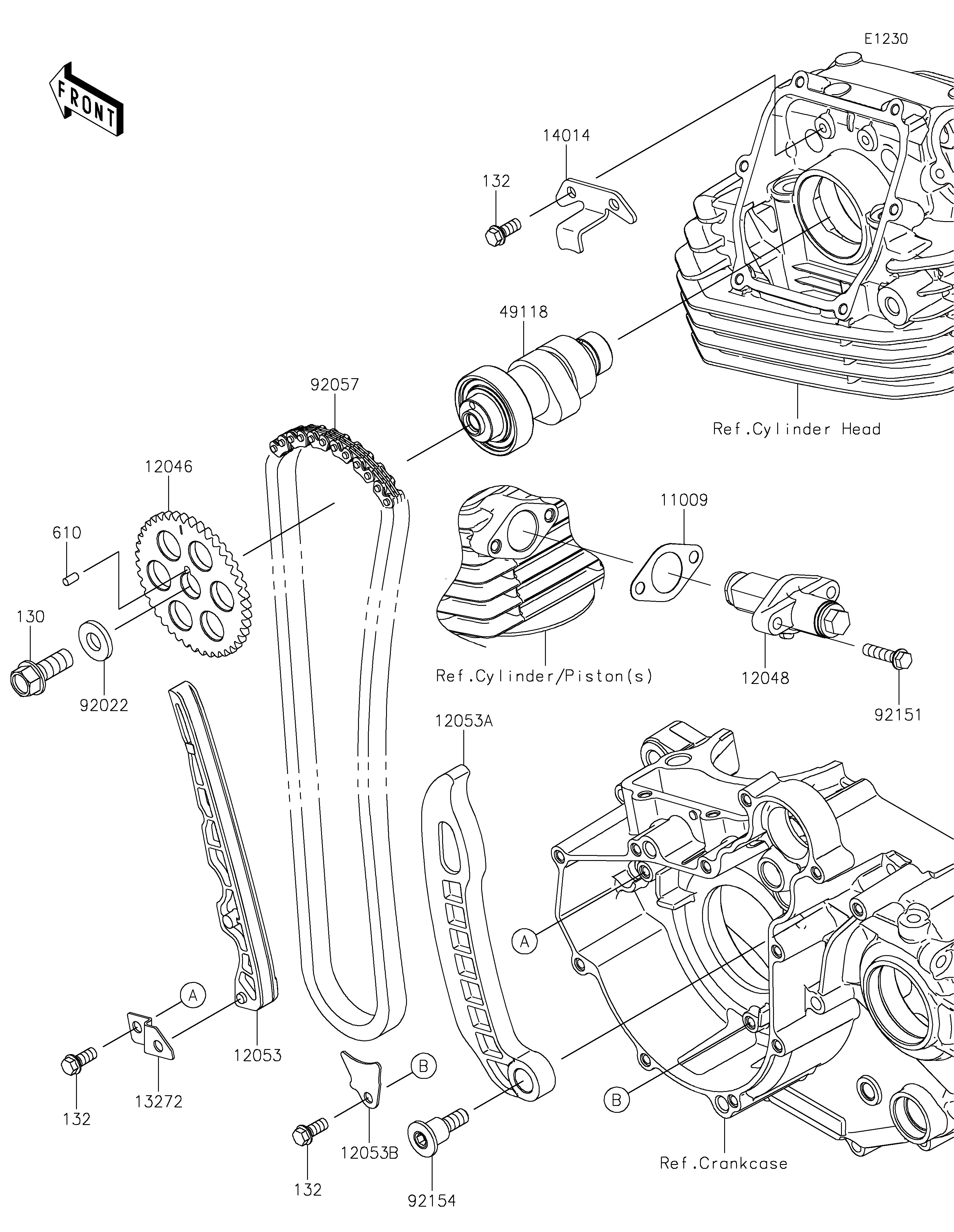

11009
12046
12048
12053
12053A
12053B
130
132
132
132
13272
14014
49118
610
92022
92057
92151
92154
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,TENSIONER 11009 11009-1858 1
SPROCKET,42T 12046 12046-0615 1
TENSIONER-ASSY 12048 12048-1113 1
GUIDE-CHAIN,FR 12053 12053-0273 1
GUIDE-CHAIN,RR 12053A 12053-0274 1
GUIDE-CHAIN,LWR 12053B 12053-0275 1
BOLT-FLANGED,10X25 130 130BA1025 1
BOLT-FLANGED-SMALL,6X14 132 132BD0614 4
PLATE,CHAIN GUIDE 13272 13272-2626 1
PLATE-POSITION 14014 14014-0578 1
CAMSHAFT-COMP 49118 49118-0970 1
ROLLER,4X8 610 610A0408 1
WASHER,10X22X3 92022 92022-1365 1
CHAIN,CAM,92RH2010-110M 92057 92057-0764 1
BOLT,FLANGED-SMALL,6X25 92151 92151-1930 2
BOLT 92154 92154-1307 1
