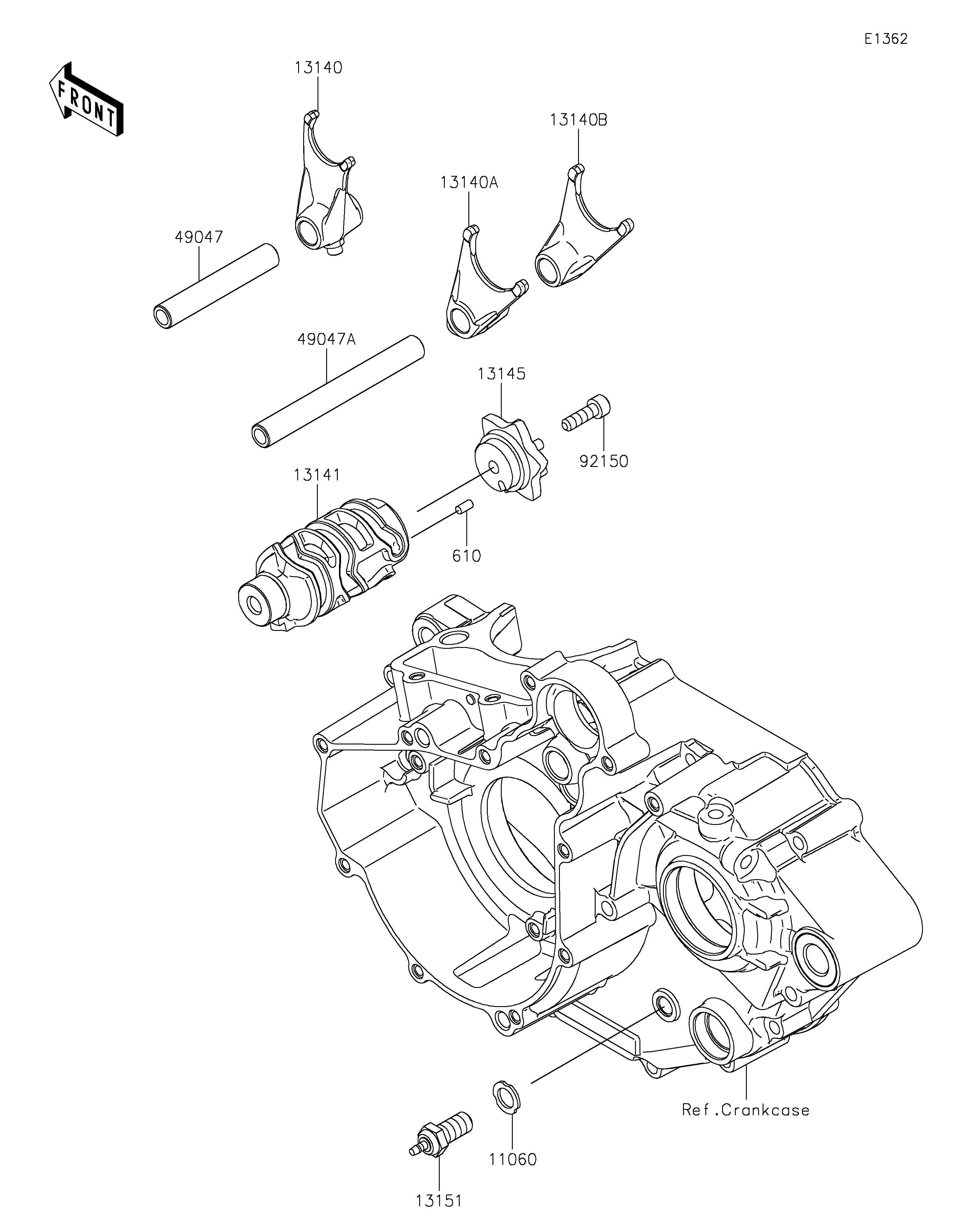

2020 KLX®230R - Gear Change Drum/Shift Fork(s)

11060
13140
13140A
13140B
13141
13145
13151
49047
49047A
610
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,10.5X16X1.5 11060 11060-1676 1
FORK-SHIFT,INPUT 13140 13140-0678 1
FORK-SHIFT,OUTPUT LH 13140A 13140-0679 1
FORK-SHIFT,OUTPUT RH 13140B 13140-0680 1
DRUM-CHANGE 13141 13141-0602 1
CAM-CHANGE DRUM 13145 13145-0574 1
SWITCH-COMP,NEUTRAL 13151 13151-0589 1
ROD-SHIFT,INPUT 49047 49047-0642 1
ROD-SHIFT,OUTPUT 49047A 49047-0643 1
ROLLER,4X8 610 610A0408 1
BOLT,SOCKET,6X20 92150 92150-1880 1
