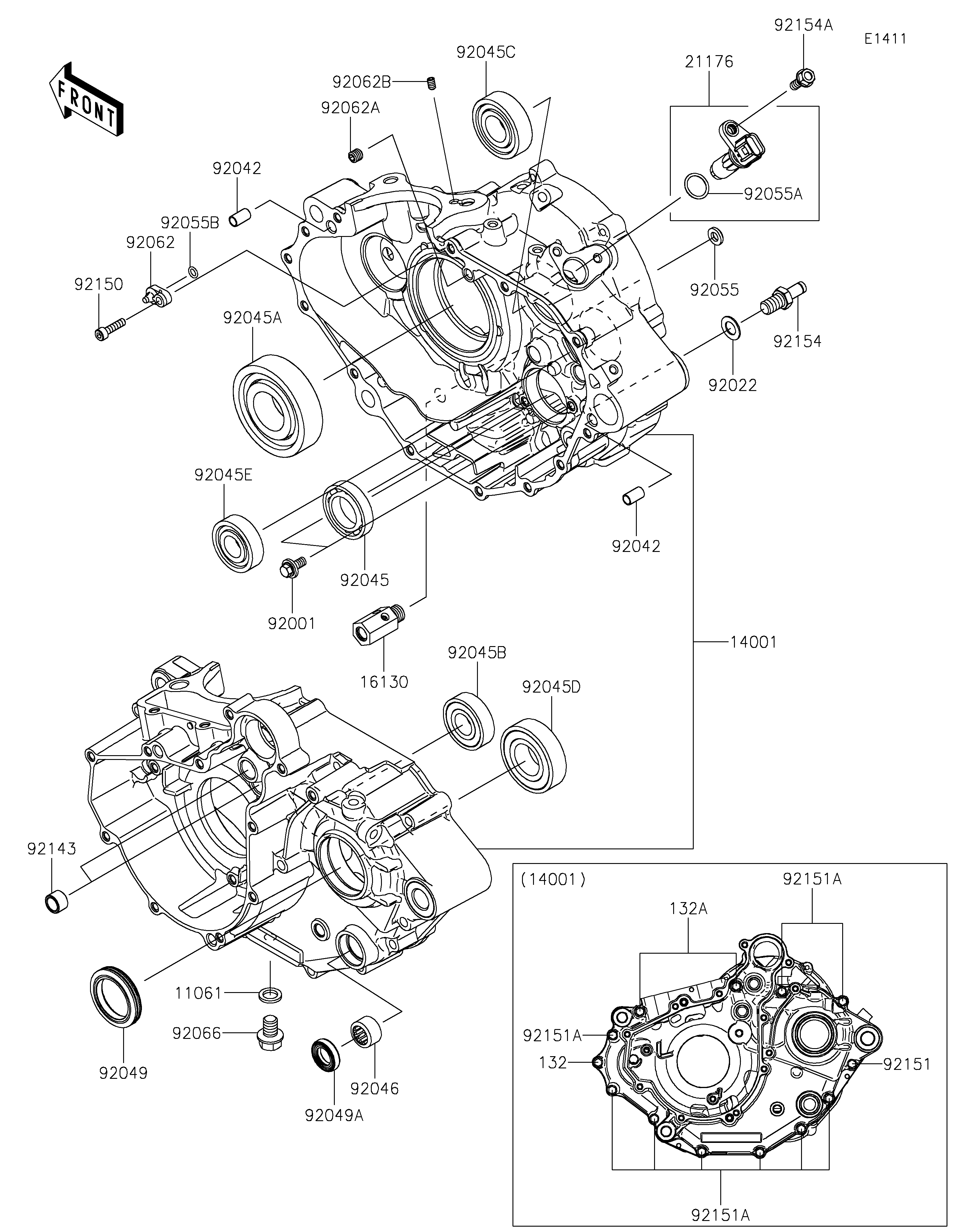

2020 KLX®230R - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
11061
132
132A
14001
16130
21176
92001
92022
92042
92042
92045
92045A
92045B
92045C
92045D
92045E
92046
92049
92049A
92055
92055A
92055B
92062
92062A
92062B
92066
92143
92150
92151
92151A
92151A
92151A
92154
92154A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,10.5X16X2 11061 11061-0222 1
BOLT-FLANGED-SMALL,6X30 132 132BC0630 1
BOLT-FLANGED-SMALL,6X70 132A 132BC0670 2
SET-CRANKCASE 14001 14001-0707 1
VALVE-ASSY-RELIEF 16130 16130-0002 1
SENSOR,SPEED 21176 21176-0894 1
BOLT,W/WASHER,6X14 92001 92001-1829 2
WASHER,10.2X18X1.0,SK5 92022 92022-1415 1
PIN,DOWEL,6.3X8X14 92042 92042-007 2
BEARING-BALL,25X42X9 92045 92045-0881 1
BEARING-BALL,6306CM 92045A 92045-0907 1
BEARING-BALL,6203NSE9C3 92045B 92045-0908 1
BEARING-BALL,6204C3 92045C 92045-0909 1
BEARING-BALL,6205NSE9C3 92045D 92045-0910 1
BEARING-BALL,6203C3 92045E 92045-0911 1
BEARING-NEEDLE,HK1412FM 92046 92046-0043 1
SEAL-OIL,32X45X7.5 92049 92049-0825 1
SEAL-OIL,TC14245 92049A 92049-1520 1
RING-O,OD=13 92055 92055-074 1
RING-O 92055A 92055-0958 1
RING-O,5.5X1.5 92055B 92055-1339 1
NOZZLE 92062 92062-0050 1
NOZZLE,8X8 92062A 92062-0567 1
NOZZLE,6X8,SILVER 92062B 92062-1081 1
PLUG,DRAIN 92066 92066-0143 1
COLLAR 92143 92143-1263 2
BOLT,SOCKET,5X20 92150 92150-1019 1
BOLT,6X65 92151 92151-1199 1
BOLT,6X50 92151A 92151-1234 9
BOLT,RETURN SPRING 92154 92154-1306 1
BOLT,FLANGED,6X16 92154A 92154-2895 1
