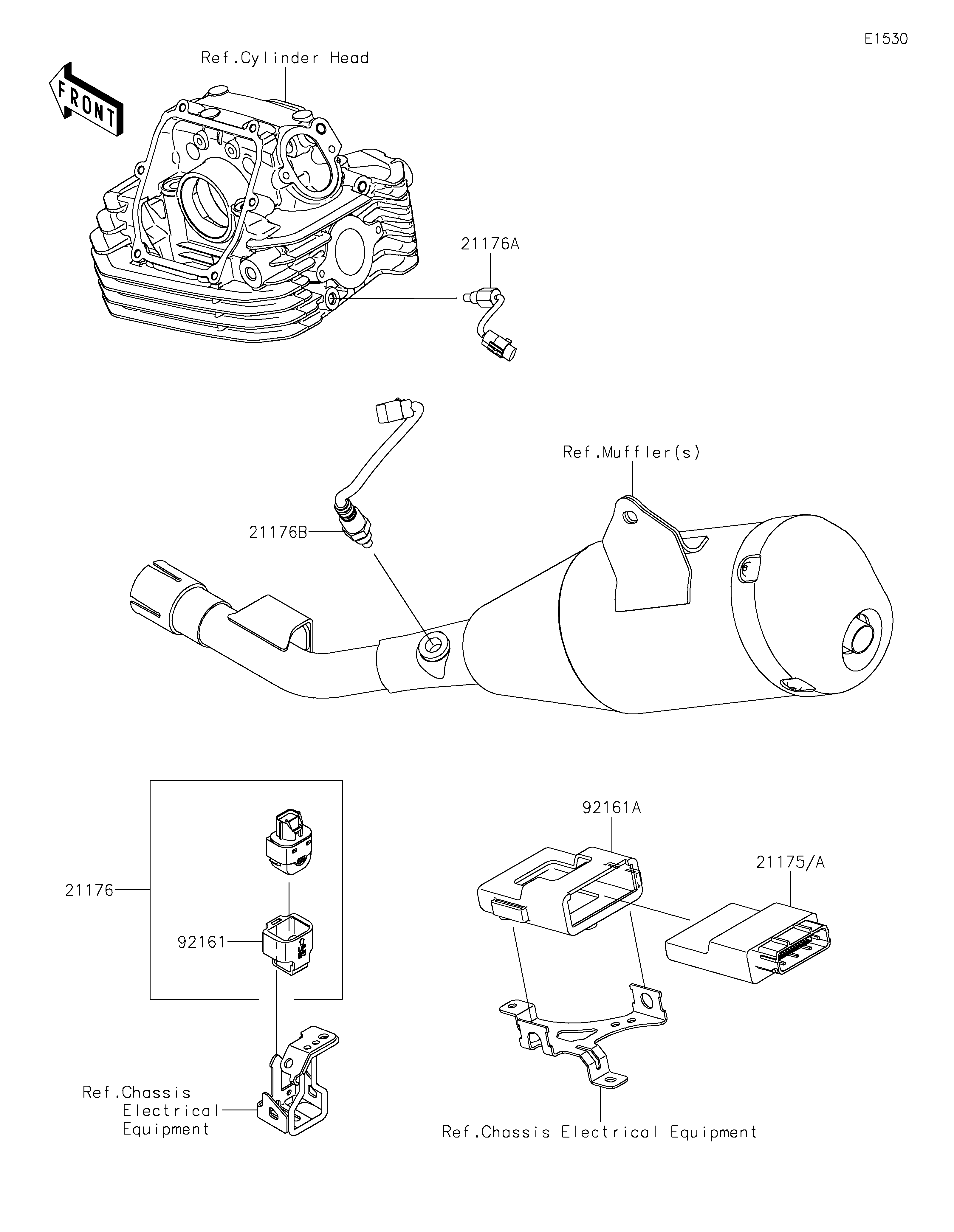

21175
21175A
21176
21176A
21176B
92161
92161A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CONTROL UNIT-ELECTRONIC 21175 21175-1480 1 CN,US
CONTROL UNIT-ELECTRONIC 21175A 21175-1485 1 CA
SENSOR,VEHICLE-DOWN 21176 21176-0704 1
SENSOR,ENGINE TEMP 21176A 21176-0898 1
SENSOR,OXYGEN 21176B 21176-0899 1
DAMPER 92161 92161-0951 1
DAMPER,ECU 92161A 92161-2101 1
