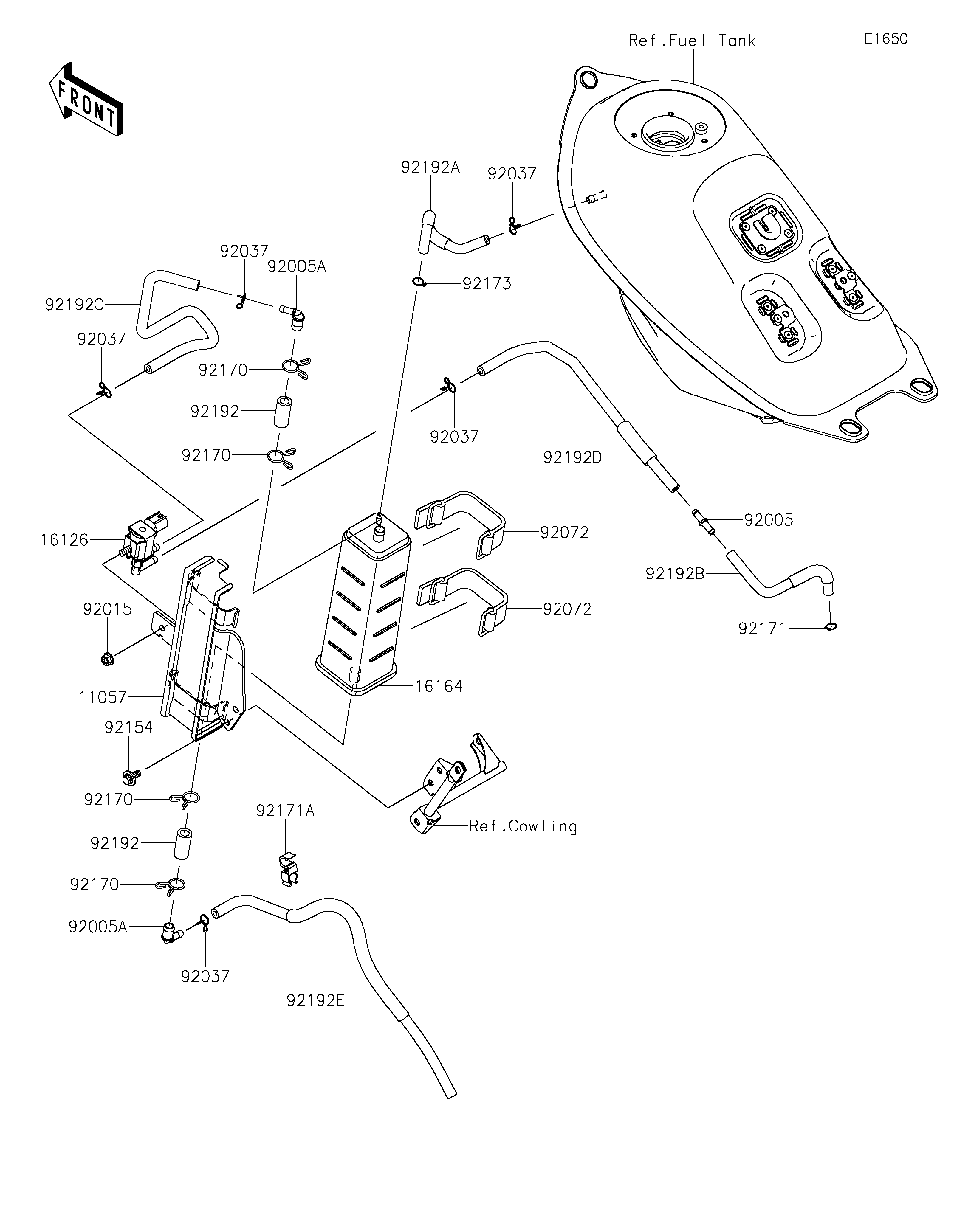

2020 KLX®230R - Fuel Evaporative System(CA)
11057
16126
16164
92005
92005A
92005A
92015
92037
92037
92037
92037
92037
92072
92072
92154
92170
92170
92170
92170
92171
92171A
92173
92192
92192
92192A
92192B
92192C
92192D
92192E
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,CANISTER | 11057 | 11057-2130 | 1 | CA | |
| VALVE,SOLENOID | 16126 | 16126-0705 | 1 | CA | |
| CANISTER | 16164 | 16164-0009 | 1 | CA | |
| FITTING | 92005 | 92005-0721 | 1 | CA | |
| FITTING | 92005A | 92005-0753 | 2 | CA | |
| NUT,FLANGED,6MM | 92015 | 92015-1367 | 1 | CA | |
| CLAMP | 92037 | 92037-1712 | 5 | CA | |
| BAND,L=90 | 92072 | 92072-0135 | 2 | CA | |
| BOLT,FLANGED,WP,6X14 | 92154 | 92154-1289 | 2 | CA | |
| CLAMP | 92170 | 92170-1695 | 4 | CA | |
| CLAMP | 92171 | 92171-0573 | 1 | CA | |
| CLAMP | 92171A | 92171-1709 | 1 | CA | |
| CLAMP | 92173 | 92173-1190 | 1 | CA | |
| TUBE,9X14.4X30 | 92192 | 92192-1757 | 2 | CA | |
| TUBE,TANK-CANISTER | 92192A | 92192-1938 | 1 | CA | |
| TUBE,PCV-THB | 92192B | 92192-1939 | 1 | CA | |
| TUBE,FITTING-PCV | 92192C | 92192-1940 | 1 | CA | |
| TUBE,FITTING-PCV | 92192D | 92192-1987 | 1 | CA | |
| TUBE,DRAIN | 92192E | 92192-2309 | 1 | CA |
| BRACKET,CANISTER | |
| REF # | 11057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| VALVE,SOLENOID | |
| REF # | 16126 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CANISTER | |
| REF # | 16164 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| FITTING | |
| REF # | 92005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| FITTING | |
| REF # | 92005A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CA |
| REMARKS | |
| NUT,FLANGED,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | CA |
| REMARKS | |
| BAND,L=90 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CA |
| REMARKS | |
| BOLT,FLANGED,WP,6X14 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP | |
| REF # | 92170 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP | |
| REF # | 92171A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP | |
| REF # | 92173 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,9X14.4X30 | |
| REF # | 92192 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,TANK-CANISTER | |
| REF # | 92192A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,PCV-THB | |
| REF # | 92192B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,FITTING-PCV | |
| REF # | 92192C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,FITTING-PCV | |
| REF # | 92192D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,DRAIN | |
| REF # | 92192E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
