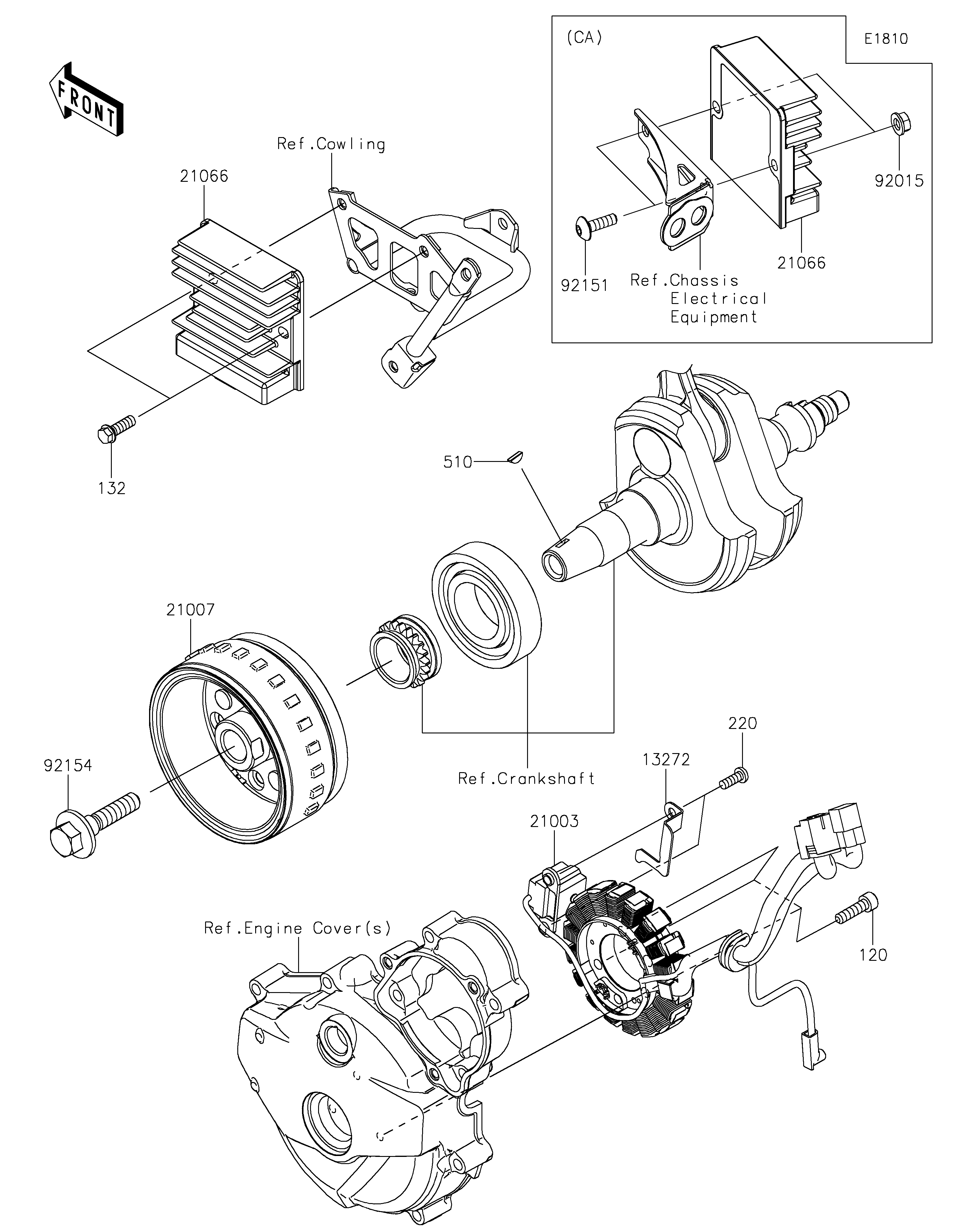

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X22 120 120CA0622 3
BOLT-FLANGED-SMALL,6X18 132 132BA0618 2 _________________________________________CN,US
PLATE,PULSING COIL 13272 13272-2615 1
STATOR 21003 21003-0199 1
ROTOR 21007 21007-0680 1
REGULATOR-VOLTAGE 21066 21066-0775 1
SCREW-PAN-CROS,5X14 220 220AA0514 2
KEY-WOODRUFF 510 510A3100 1
NUT,FLANGED,6MM 92015 92015-1367 2 CA
BOLT,SOCKET,6X20 92151 92151-1750 2 CA
BOLT 92154 92154-1309 1
