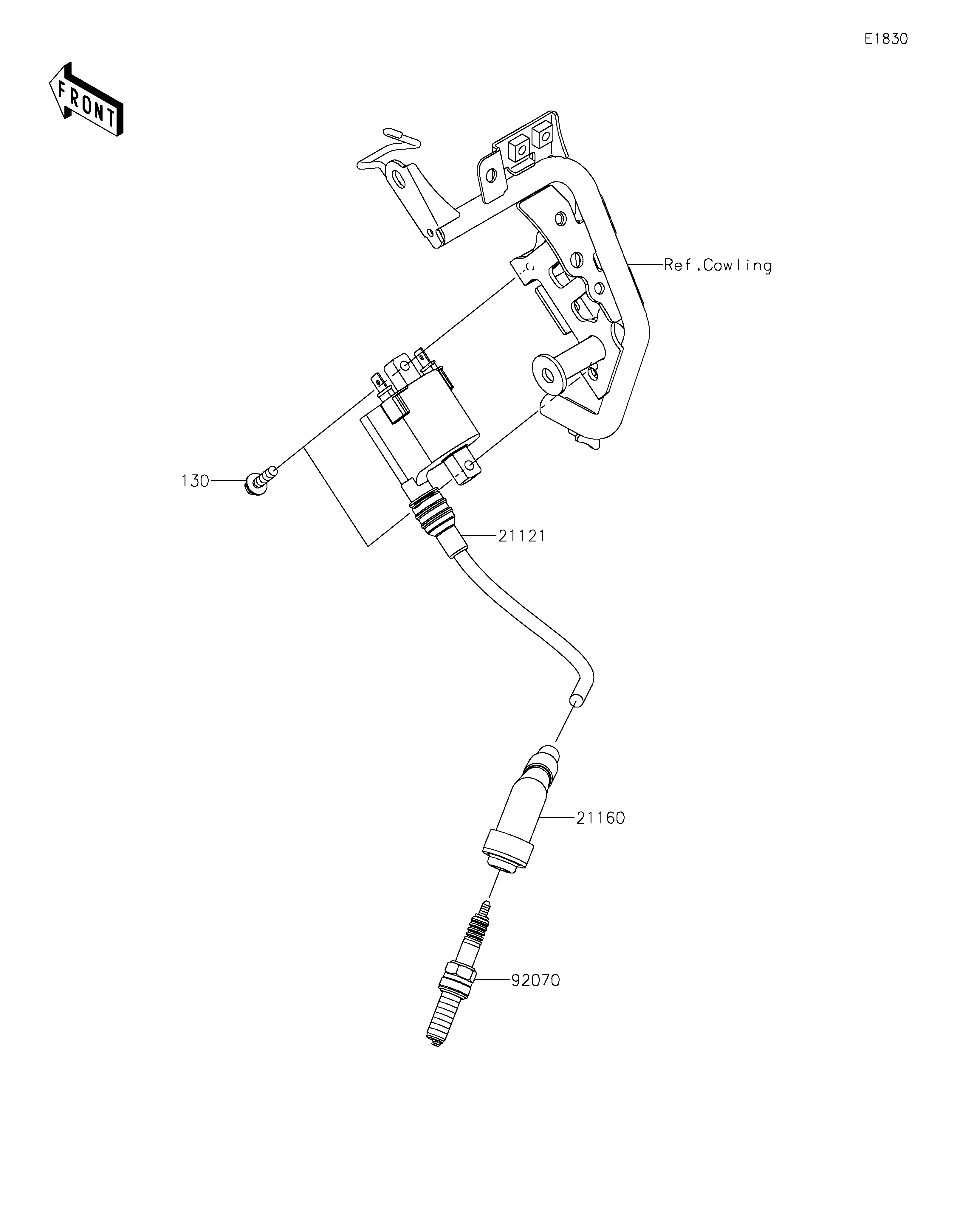

130
21121
21160
92070
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,5X18 130 130BB0518 2
COIL-IGNITION 21121 21121-0735 1
CAP-ASSY-PLUG 21160 21160-0026 1
PLUG-SPARK,LMAR9G(NGK) 92070 92070-0716 1
