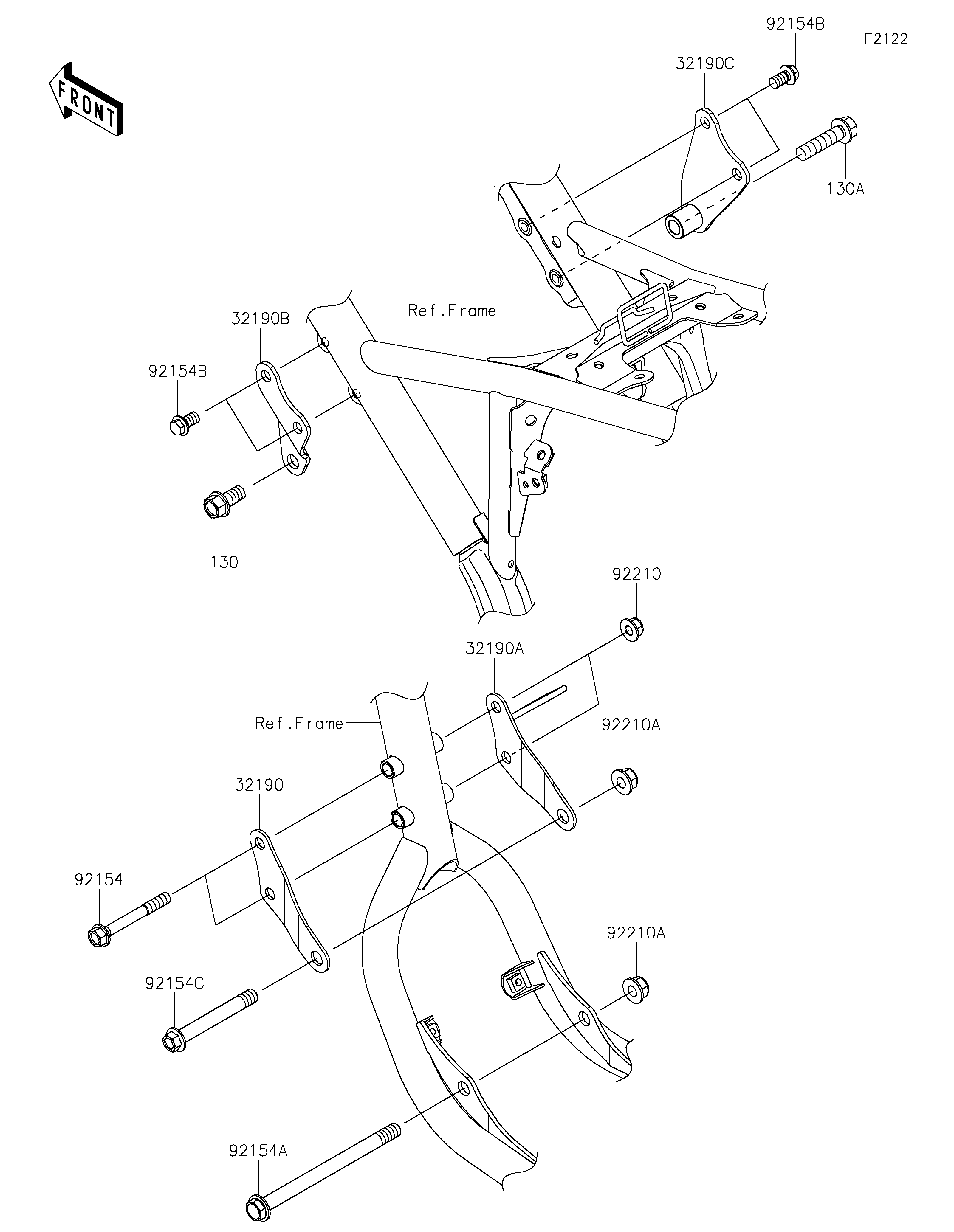

130
130A
32190
32190A
32190B
32190C
92154
92154A
92154B
92154B
92154C
92210
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,10X20 130 130CA1020 1
BOLT-FLANGED,10X40 130A 130CA1040 1
BRACKET-ENGINE,FR,LH 32190 32190-0793 1
BRACKET-ENGINE,FR,RH 32190A 32190-0794 1
BRACKET-ENGINE,HEAD,LH 32190B 32190-0796 1
BRACKET-ENGINE,HEAD,RH 32190C 32190-0797 1
BOLT,FLANGED,8X65 92154 92154-3896 2
BOLT,FLANGED,10X137 92154A 92154-3897 1
BOLT,FLANGED,8X14 92154B 92154-3913 4
BOLT,FLANGED,10X77 92154C 92154-4041 1
NUT,8MM 92210 92210-0570 2
NUT,LOCK,FLANGED,10MM 92210A 92210-1080 2
