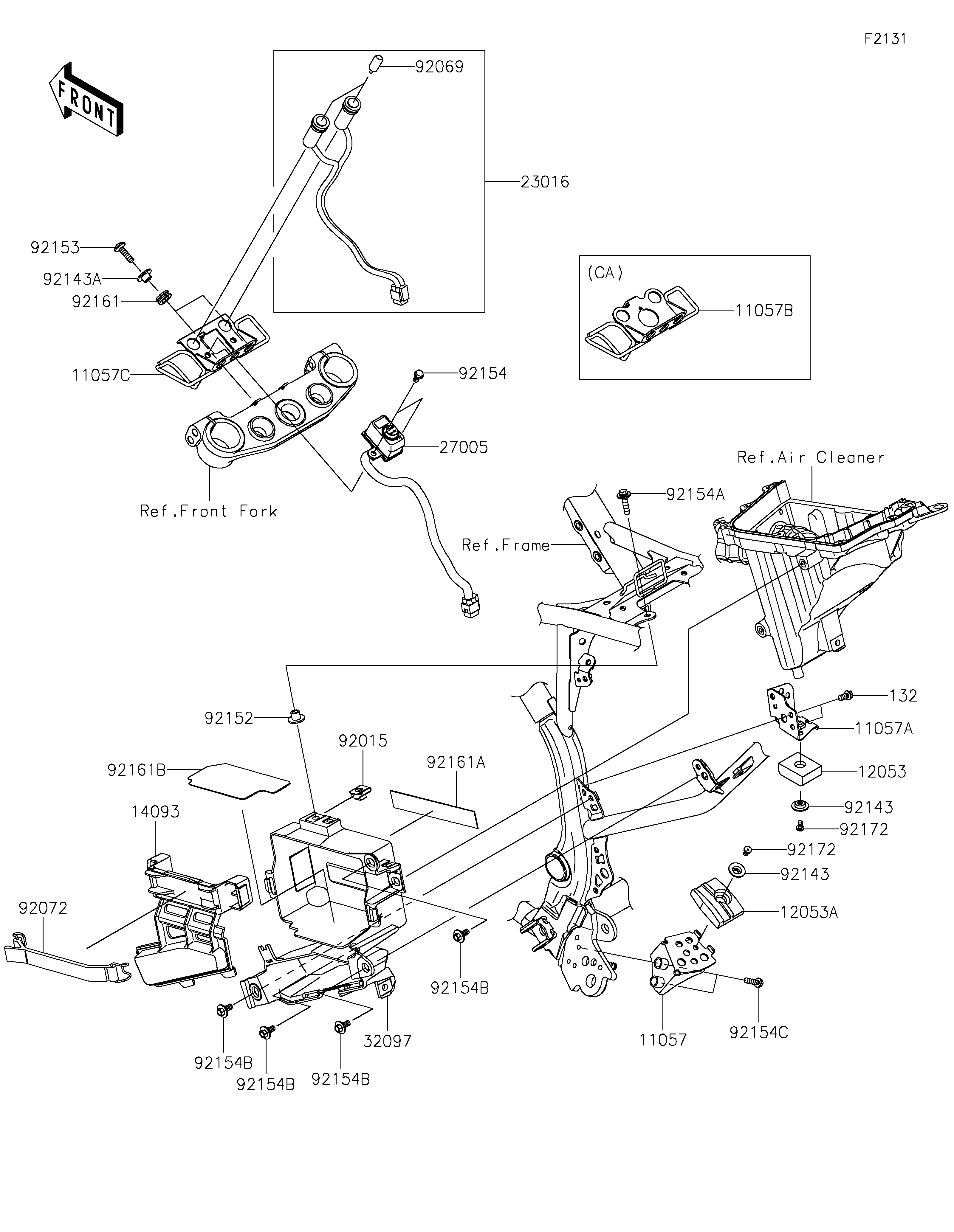

2020 KLX®230R - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
11057
11057A
11057B
11057C
12053
12053A
132
14093
23016
27005
32097
92015
92069
92072
92143
92143
92143A
92152
92153
92154
92154A
92154B
92154B
92154B
92154B
92154C
92161
92161A
92161B
92172
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LWR 11057 11057-2065 1
BRACKET,UPP 11057A 11057-2067 1
BRACKET,INDICATOR 11057B 11057-2082 1 CA
BRACKET,INDICATOR&IGNITION 11057C 11057-2976 1 CN,US
GUIDE-CHAIN,UPP 12053 12053-0270 1
GUIDE-CHAIN,LWR 12053A 12053-0271 1
BOLT-FLANGED-SMALL,6X12 132 132BA0612 2
COVER,CASE-BATTERY 14093 14093-0785 1
LAMP-ASSY,INDICATOR 23016 23016-0626 1
SWITCH-ASSY-IGNITION 27005 27005-0677 1 CN,US
CASE-BATTERY 32097 32097-0048 1
NUT,6MM 92015 92015-1602 1
BULB,12V 3.4W,T10 92069 92069-1007 2
BAND,BATTERY 92072 92072-0839 1
COLLAR 92143 92143-1676 2
COLLAR 92143A 92143-1833 2
COLLAR,6.5X10X10.4 92152 92152-1688 1
BOLT,SOCKET,6X22 92153 92153-0574 2
BOLT,FLANGED,6X10 92154 92154-0459 2 CN,US
BOLT,6X25 92154A 92154-0467 1
BOLT,FLANGED,6X9 92154B 92154-0546 5
BOLT,FLANGED,6X20 92154C 92154-2757 2
DAMPER,10X18X6.5 92161 92161-2091 2
DAMPER,146X22X1 92161A 92161-2210 1
DAMPER,BATTERY 92161B 92161-2294 1
SCREW,5X8 92172 92172-0119 2
