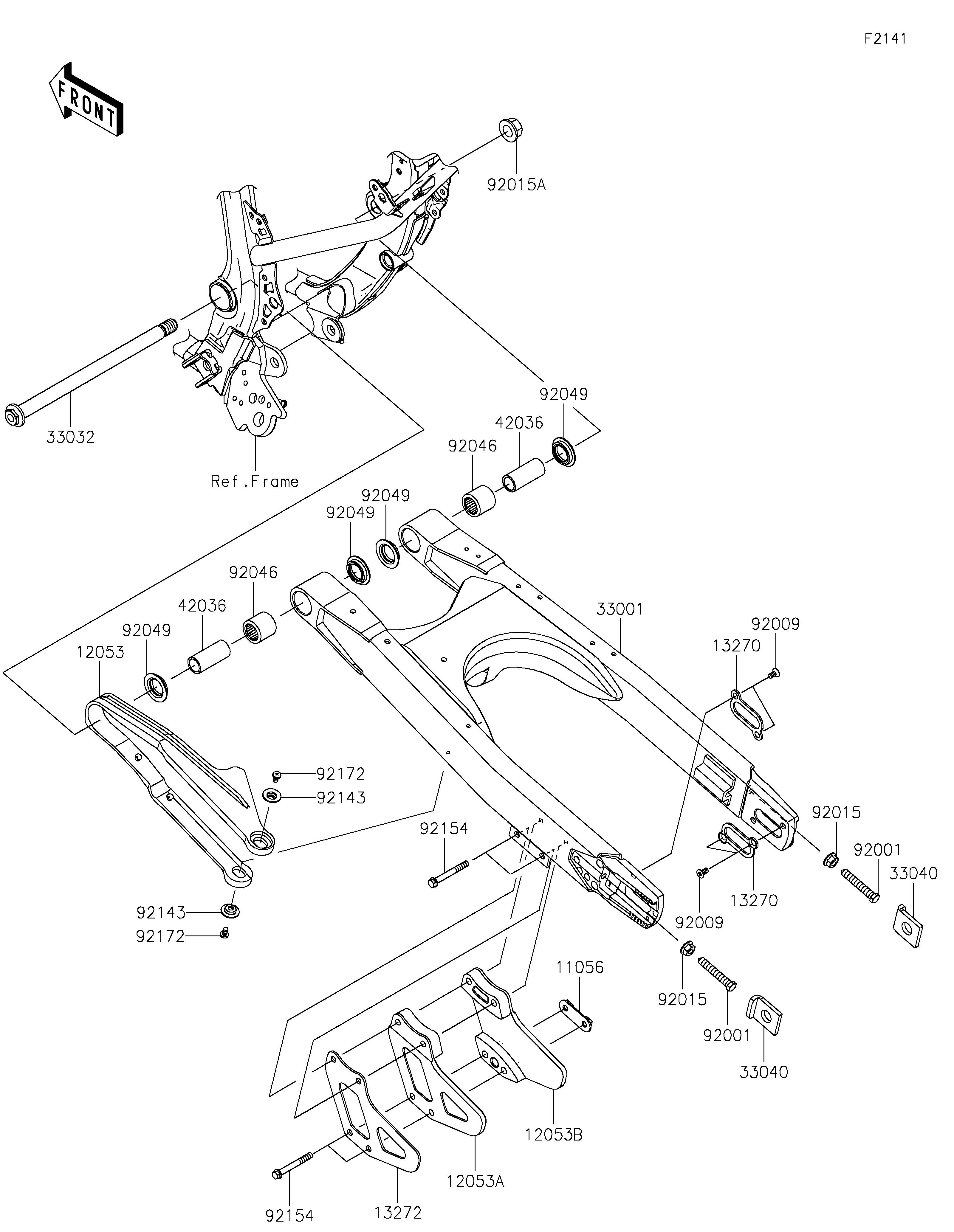

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11056
12053
12053A
12053B
13270
13270
13272
33001
33032
33040
33040
42036
42036
92001
92001
92009
92009
92015
92015
92015A
92046
92046
92049
92049
92049
92049
92143
92143
92154
92154
92172
92172
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,WITH NUT | 11056 | 11056-2396 | 1 | ||
| GUIDE-CHAIN | 12053 | 12053-0267 | 1 | ||
| GUIDE-CHAIN,OUTER | 12053A | 12053-0268 | 1 | ||
| GUIDE-CHAIN,INNER | 12053B | 12053-0269 | 1 | ||
| PLATE | 13270 | 13270-1899 | 2 | ||
| PLATE,GUIDE-CHAIN | 13272 | 13272-2610 | 1 | ||
| ARM-COMP-SWING | 33001 | 33001-0709 | 1 | ||
| SHAFT-SWING ARM,15X243 | 33032 | 33032-0060 | 1 | ||
| ADJUSTER-CHAIN | 33040 | 33040-0032 | 2 | ||
| SLEEVE,15X20X46 | 42036 | 42036-0831 | 2 | ||
| BOLT,8X46 | 92001 | 92001-1179 | 2 | ||
| SCREW,5X10 | 92009 | 92009-1828 | 4 | ||
| NUT,FLANGED,8MM | 92015 | 92015-1014 | 2 | ||
| NUT,14MM | 92015A | 92015-1407 | 1 | ||
| BEARING-NEEDLE,BM202726 | 92046 | 92046-1110 | 2 | ||
| SEAL-OIL,ARM | 92049 | 92049-1109 | 4 | ||
| COLLAR | 92143 | 92143-1676 | 2 | ||
| BOLT,FLANGED,6X50 | 92154 | 92154-1193 | 4 | ||
| SCREW,5X8 | 92172 | 92172-0119 | 2 |
| BRACKET,WITH NUT | |
| REF # | 11056 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE-CHAIN | |
| REF # | 12053 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE-CHAIN,OUTER | |
| REF # | 12053A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE-CHAIN,INNER | |
| REF # | 12053B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE | |
| REF # | 13270 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PLATE,GUIDE-CHAIN | |
| REF # | 13272 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ARM-COMP-SWING | |
| REF # | 33001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT-SWING ARM,15X243 | |
| REF # | 33032 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ADJUSTER-CHAIN | |
| REF # | 33040 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SLEEVE,15X20X46 | |
| REF # | 42036 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,8X46 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X10 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,8MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,14MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,BM202726 | |
| REF # | 92046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,ARM | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X50 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X8 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
