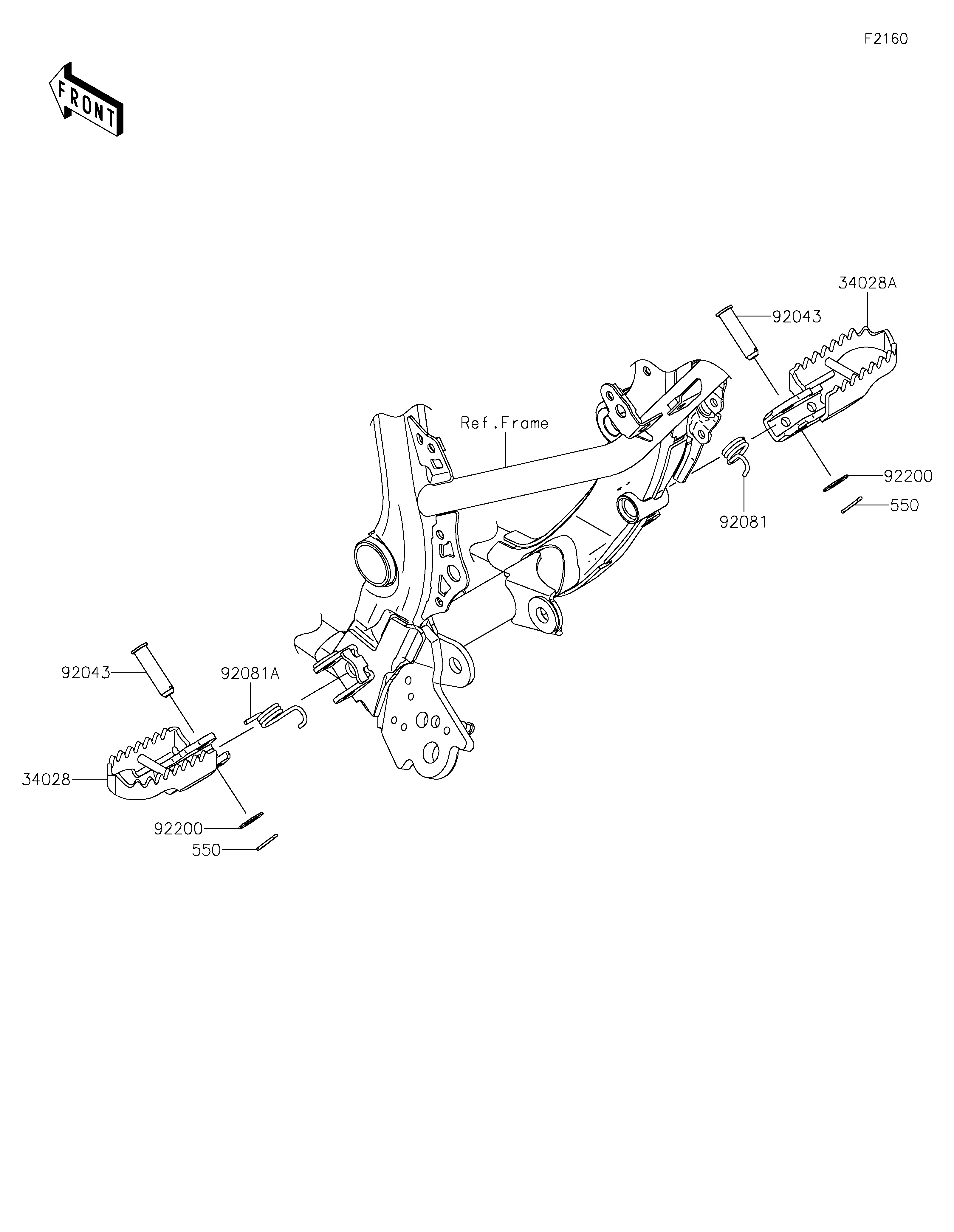

34028
34028A
550
550
92043
92043
92081
92081A
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STEP,LH 34028 34028-0369 1
STEP,RH 34028A 34028-0371 1
PIN-COTTER,2.0X18 550 550AA2018 2
PIN,10X35 92043 92043-0744 2
SPRING,STEP,RH 92081 92081-1606 1
SPRING,STEP,LH 92081A 92081-1607 1
WASHER,10.5X20X1.0 92200 92200-0870 2
