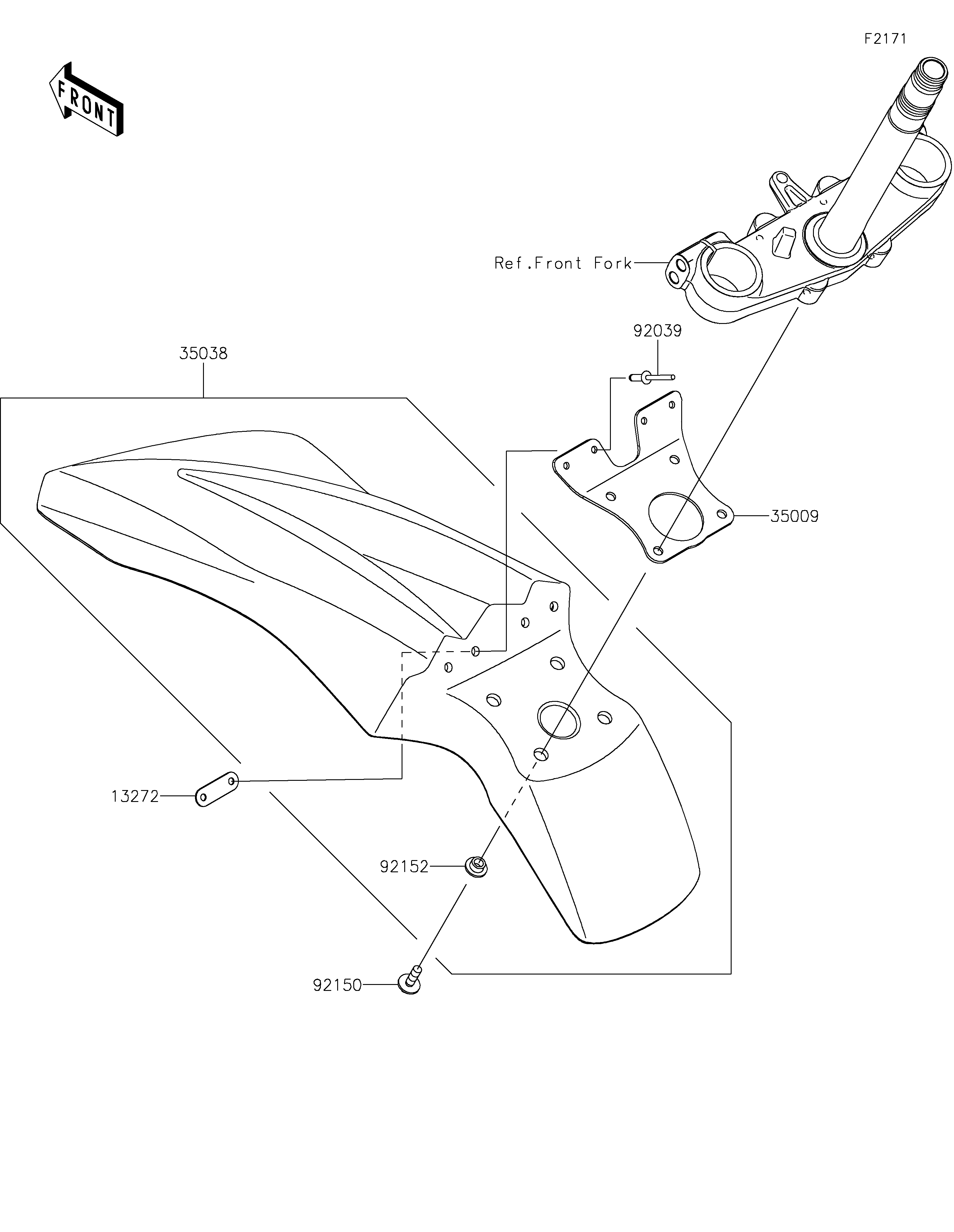

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE 13272 13272-2832 2
BRACE 35009 35009-0046 1
FENDER-FRONT,L.GREEN 35038 35038-0013-290 1
RIVET 92039 92039-1281 4
BOLT,FLANGED,6X20 92150 92150-1339 4
COLLAR,6.8X10(16)X6.6 92152 92152-0842 4
