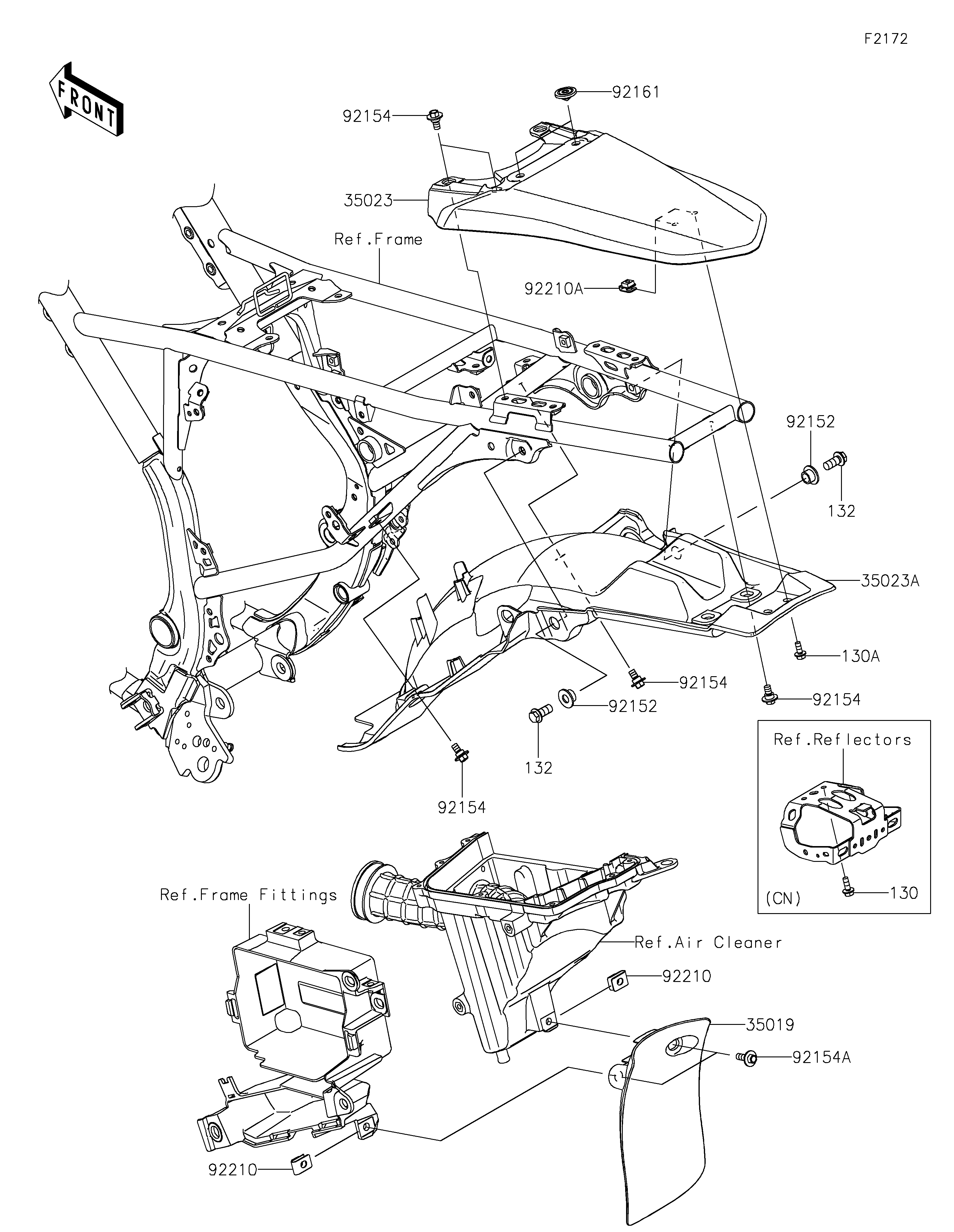

Parts Diagrams |
130
130A
132
132
35019
35023
35023A
92152
92152
92154
92154
92154
92154
92154A
92161
92210
92210
92210A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,5X14 | 130 | 130BA0514 | 2 | CN | |
| BOLT-FLANGED,5X12 | 130A | 130BB0512 | 2 | CA,US | |
| BOLT-FLANGED-SMALL,8X18 | 132 | 132BA0818 | 2 | ||
| FLAP | 35019 | 35019-0664 | 1 | ||
| FENDER-REAR,L.GREEN | 35023 | 35023-0451-290 | 1 | ||
| FENDER-REAR | 35023A | 35023-0452 | 1 | ||
| COLLAR | 92152 | 92152-2542 | 2 | ||
| BOLT,FLANGED,6X9 | 92154 | 92154-0546 | 8 | ||
| BOLT,FLANGED,6X28 | 92154A | 92154-1739 | 2 | ||
| DAMPER,8X22X10 | 92161 | 92161-1685 | 2 | ||
| NUT,6MM | 92210 | 92210-0218 | 2 | ||
| NUT,PLATE,5MM | 92210A | 92210-0262 | 2 |
