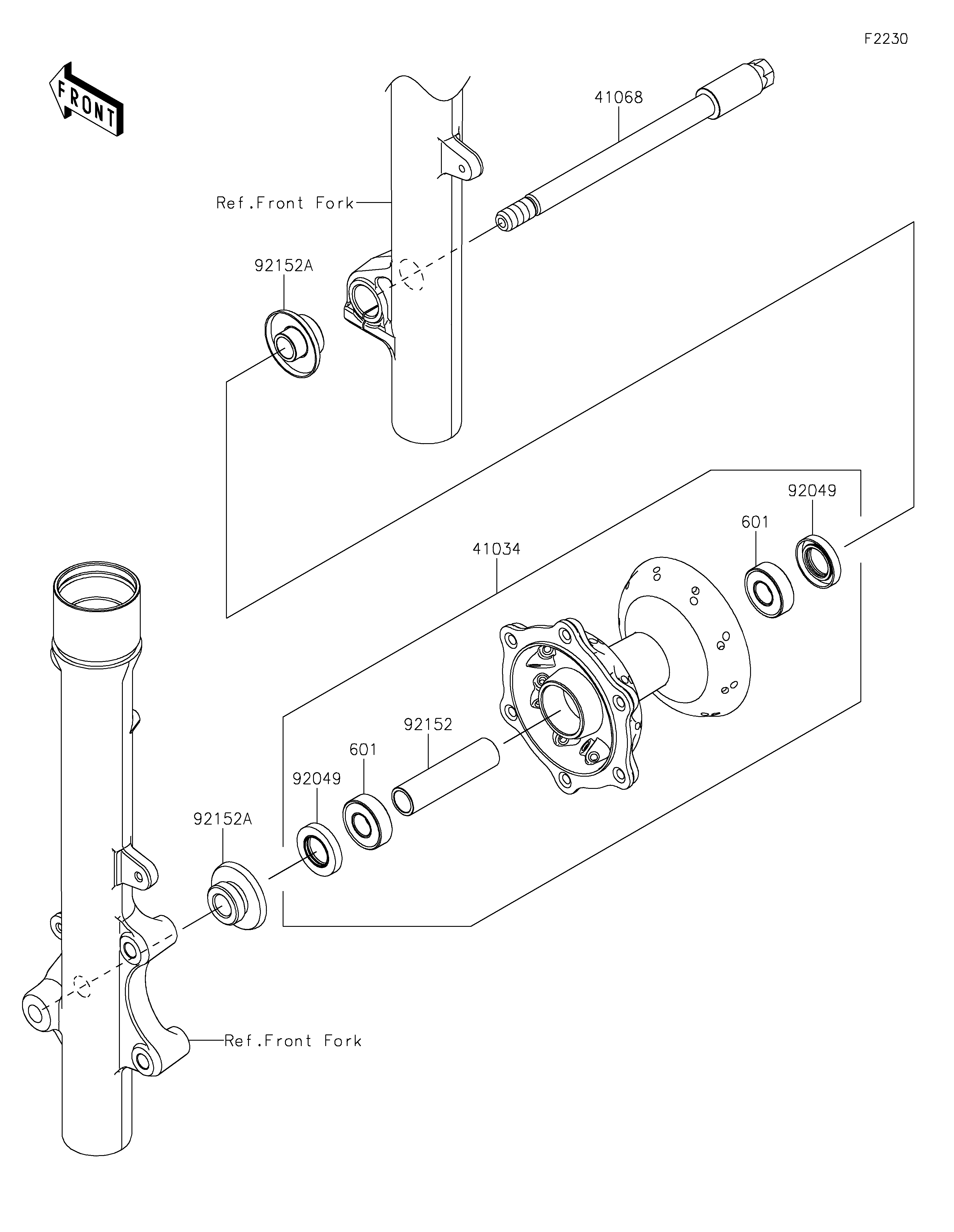

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DRUM-ASSY,FR 41034 41034-0600 1
AXLE,FR,15X188 41068 41068-0646 1
BEARING-BALL 601 601B6202UU 2
SEAL-OIL 92049 92049-0114 2
COLLAR,15.2X20X9 92152 92152-2543 1
COLLAR 92152A 92152-2544 2
