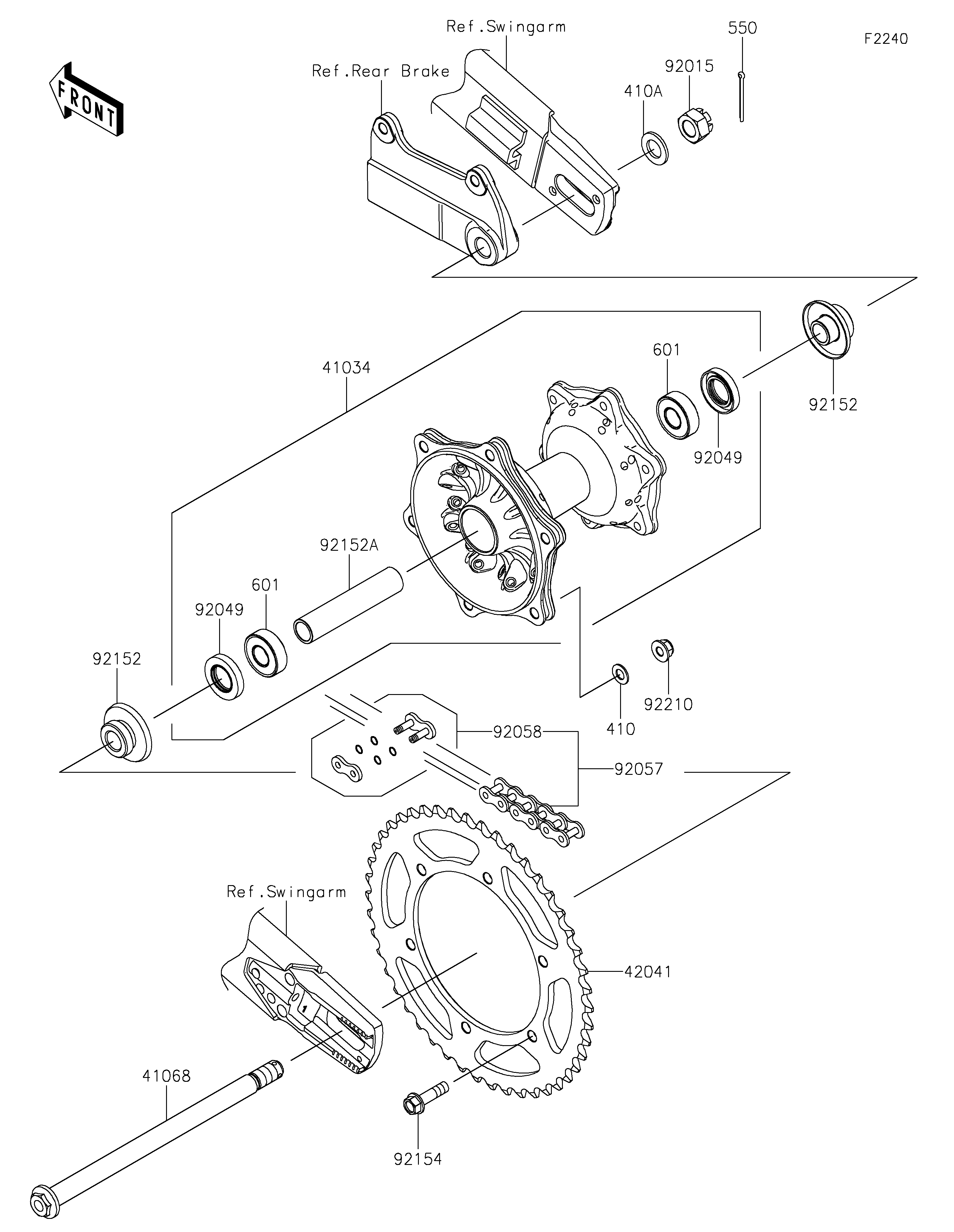

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WASHER-PLAIN-SMALL,8MM 410 410AA0800 6
DRUM-ASSY,RR 41034 41034-0601 1
AXLE,RR,15X244 41068 41068-0647 1
WASHER-PLAIN-SMALL,14MM 410A 410AA1400 1
SPROCKET-HUB,46T 42041 42041-0171 1
PIN-COTTER,3.0X35 550 550AA3035 1
BEARING-BALL 601 601B6202UU 2
NUT,CASTLE,14MM 92015 92015-1765 1
SEAL-OIL 92049 92049-0114 2
CHAIN,DRIVE,520VF2X106L 92057 92057-0800 1
JOINT-CHAIN 92058 92058-0069 1
COLLAR 92152 92152-2544 2
COLLAR,15.2X20X96.2 92152A 92152-2546 1
BOLT,FLANGED,8X30 92154 92154-3918 6
NUT,8MM 92210 92210-0570 6
