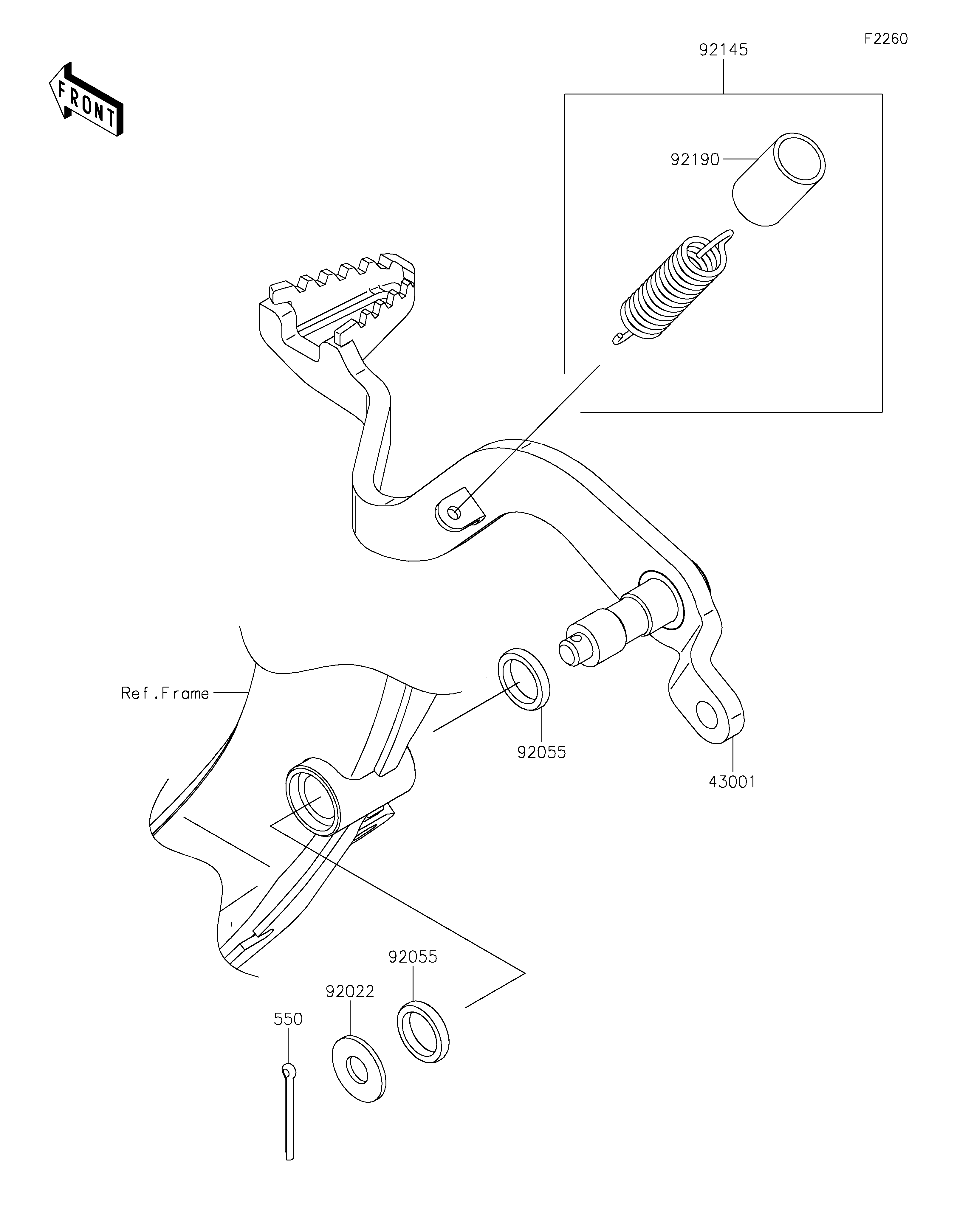

43001
550
92022
92055
92055
92145
92190
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-BRAKE 43001 43001-0766 1
PIN-COTTER,2.5X25 550 550AA2525 1
WASHER,8.5X20X1.6 92022 92022-1561 1
RING-O,13.1X2.7 92055 92055-0768 2
SPRING,BRAKE PEDAL RETURN 92145 92145-0684 1
TUBE,13X16X25 92190 92190-1488 1
