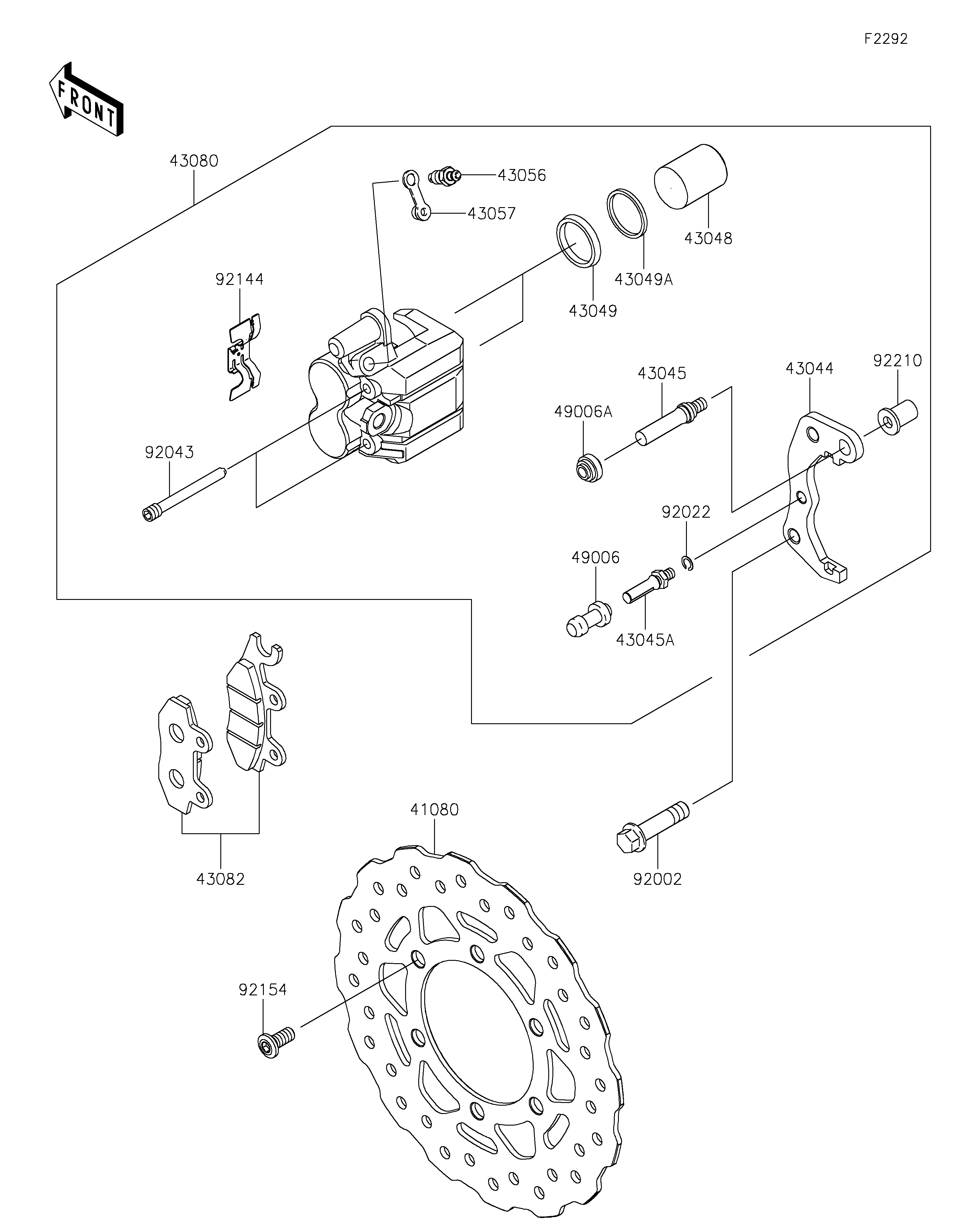

2020 KLX®230R - Front Brake

DOWNLOAD PDF
SELECT A NEW PART
41080
43044
43045
43045A
43048
43049
43049A
43056
43057
43080
43082
49006
49006A
92002
92022
92043
92144
92154
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DISC,FR 41080 41080-0701 1
HOLDER-COMP-CALIPER 43044 43044-0049 1
SHAFT-CALIPER 43045 43045-0004 1
SHAFT-CALIPER 43045A 43045-1010 1
PISTON-CALIPER 43048 43048-0010 2
PACKING,PISTON SEAL 43049 43049-1060 2
PACKING,PISTON SEAL 43049A 43049-1061 2
BREATHER-BRAKE 43056 43056-1056 1
CAP-BREATHER 43057 43057-1001 1
CALIPER-SUB-ASSY,FR 43080 43080-0124 1
PAD-ASSY-BRAKE 43082 43082-0100 1
BOOT,CALIPER 49006 49006-1088 1
BOOT,CALIPER 49006A 49006-1242 1
BOLT,FLANGED,10X41 92002 92002-1468 2
WASHER,WAVE 92022 92022-1373 1
PIN,HANGER 92043 92043-1416 2
SPRING,PAD 92144 92144-1847 1
BOLT,SOCKET,8X18 92154 92154-3951 6
NUT 92210 92210-0615 1
