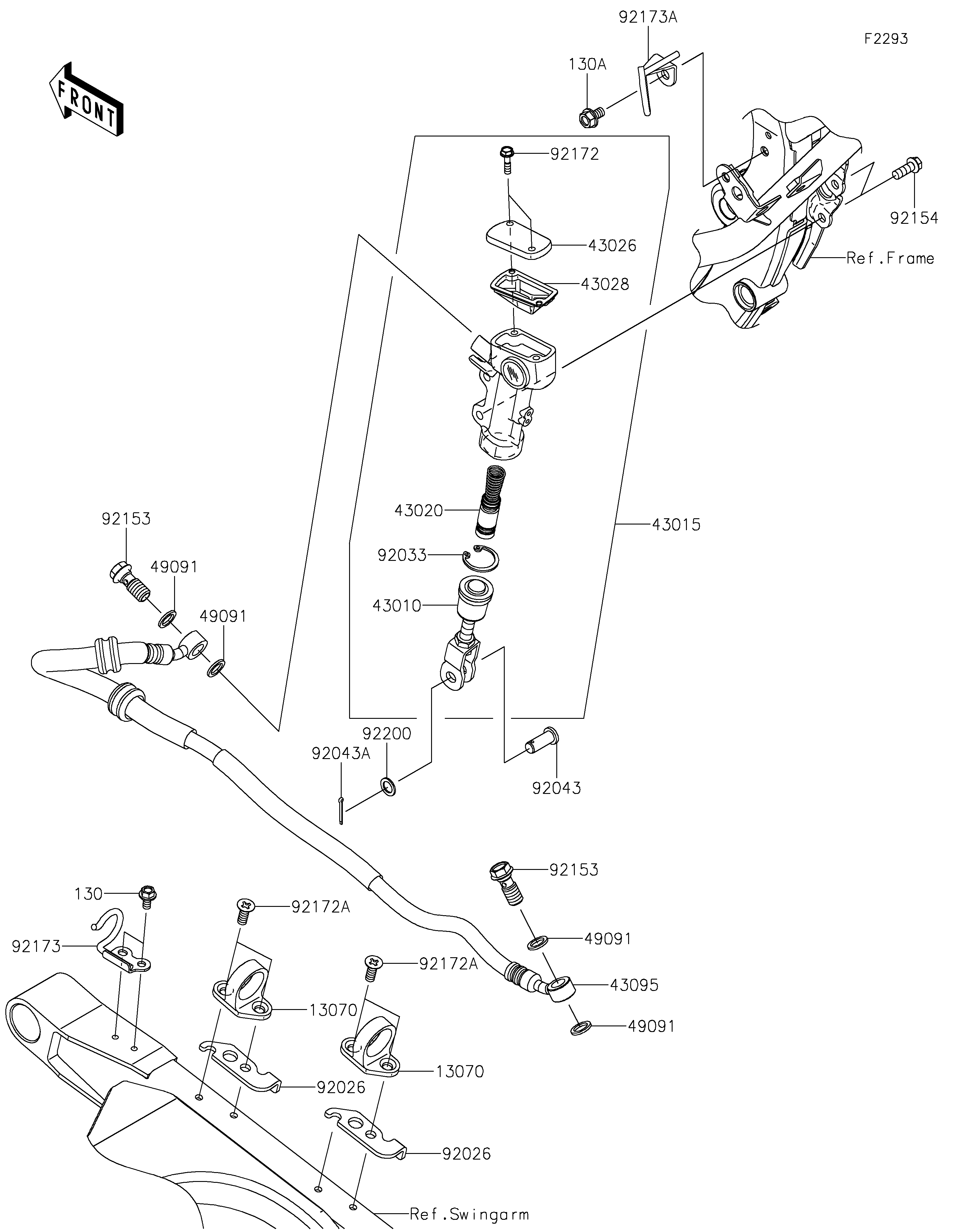

2020 KLX®230R - Rear Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
130
13070
13070
130A
43010
43015
43020
43026
43028
43095
49091
49091
49091
49091
92026
92026
92033
92043
92043A
92153
92153
92154
92172
92172A
92172A
92173
92173A
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,5X10 130 130BA0510 2
GUIDE,HOSE 13070 13070-1144 2
BOLT-FLANGED,6X10 130A 130BA0610 1
ROD-ASSY-BRAKE 43010 43010-0025 1
CYLINDER-ASSY-MASTER,RR 43015 43015-0724 1
PISTON-COMP-BRAKE 43020 43020-1094 1
CAP-BRAKE 43026 43026-0023 1
DIAPHRAGM 43028 43028-1092 1
HOSE-BRAKE,M/CYLINDER-CALIPER 43095 43095-1630 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
SPACER 92026 92026-0879 2
RING-SNAP,20.9X24.6X1.2 92033 92033-0079 1
PIN 92043 92043-0004 1
PIN,COTTER,2.0X15 92043A 92043-0766 1
BOLT,OIL,L=23 92153 92153-0029 2
BOLT,FLANGED,6X16 92154 92154-0460 2
SCREW 92172 92172-1064 2
SCREW,6X16 92172A 92172-1198 4
CLAMP,BRAKE HOSE,SWING ARM 92173 92173-1976 1
CLAMP,BRAKE HOSE,SWING ARM 92173A 92173-1978 1
WASHER,8.5X13X1 92200 92200-1980 1
