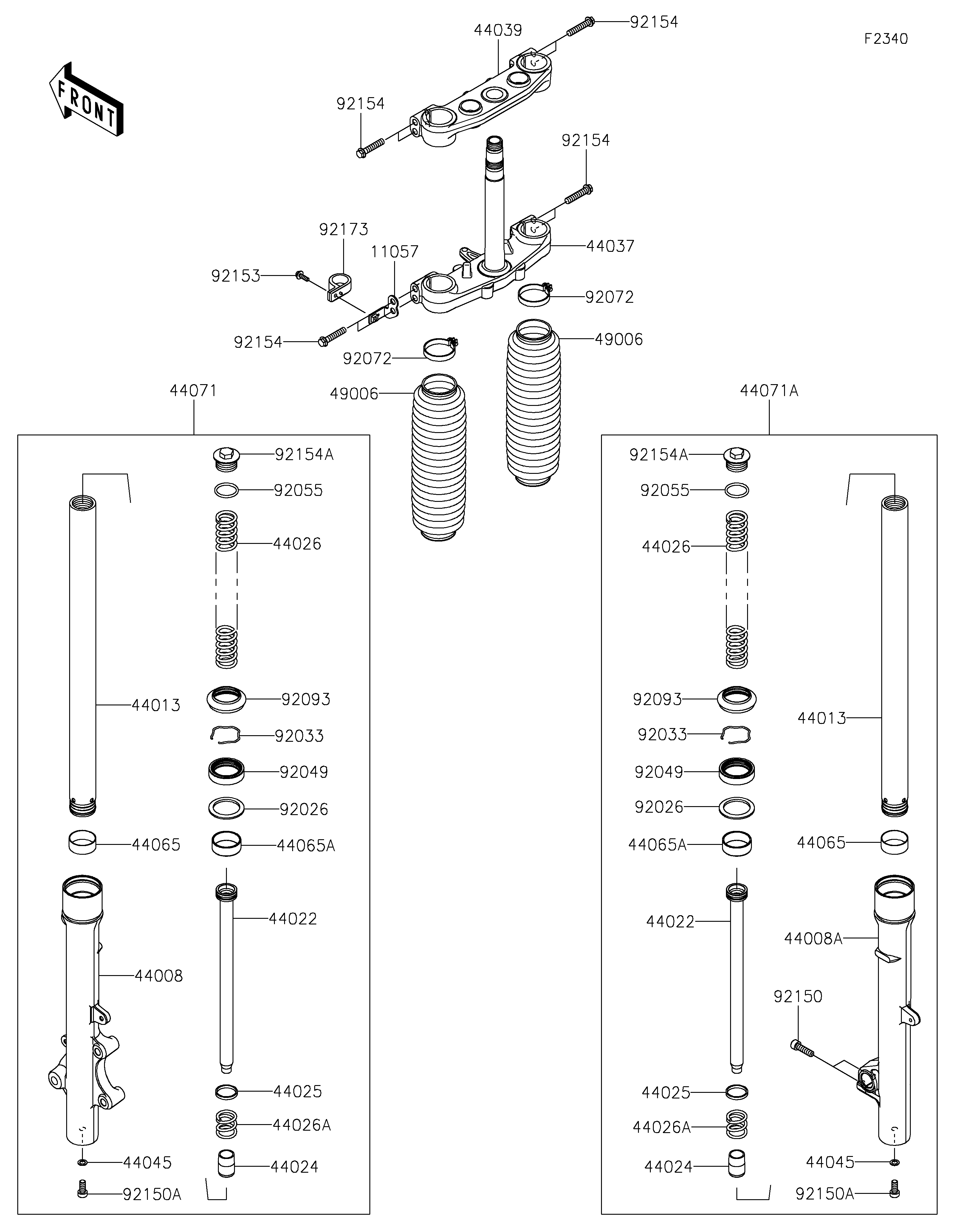

2020 KLX®230R - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
11057
44008
44008A
44013
44013
44022
44022
44024
44024
44025
44025
44026
44026
44026A
44026A
44037
44039
44045
44045
44065
44065
44065A
44065A
44071
44071A
49006
49006
92026
92026
92033
92033
92049
92049
92055
92055
92072
92072
92093
92093
92150
92150A
92150A
92153
92154
92154
92154
92154
92154A
92154A
92173
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11057 11057-2284 1
PIPE-FORK OUTER,LH 44008 44008-0089 1
PIPE-FORK OUTER,RH 44008A 44008-0090 1
PIPE-FORK INNER 44013 44013-0341 2
CYLINDER-FORK 44022 44022-0048 2
CAP-OIL-LOCK 44024 44024-0016 2
RING-FORK PISTON 44025 44025-1062 2
SPRING-FRONT FORK 44026 44026-0235 2
SPRING-FRONT FORK 44026A 44026-1556 2
HOLDER-FORK UNDER 44037 44037-0186 1
HOLDER-FORK UPPER 44039 44039-0190 1
GASKET,FORK CYLINDER BOLT 44045 44045-051 2
BUSHING-FRONT FORK 44065 44065-0067 2
BUSHING-FRONT FORK 44065A 44065-0068 2
DAMPER-ASSY,LH 44071 44071-1354 1
DAMPER-ASSY,RH 44071A 44071-1355 1
BOOT 49006 49006-0612 2
SPACER,FORK 92026 92026-1443 2
RING-SNAP 92033 92033-1286 2
SEAL-OIL 92049 92049-0734 2
RING-O 92055 92055-1456 2
BAND 92072 92072-0826 2
SEAL,FORK OUTER 92093 92093-1367 2
BOLT,SOCKET,8X30 92150 92150-1407 2
BOLT,SOCKET,8X18 92150A 92150-1432 2
BOLT,FLANGED 92153 92153-1397 1
BOLT 92154 92154-0463 8
BOLT 92154A 92154-3953 2
CLAMP 92173 92173-2246 1
