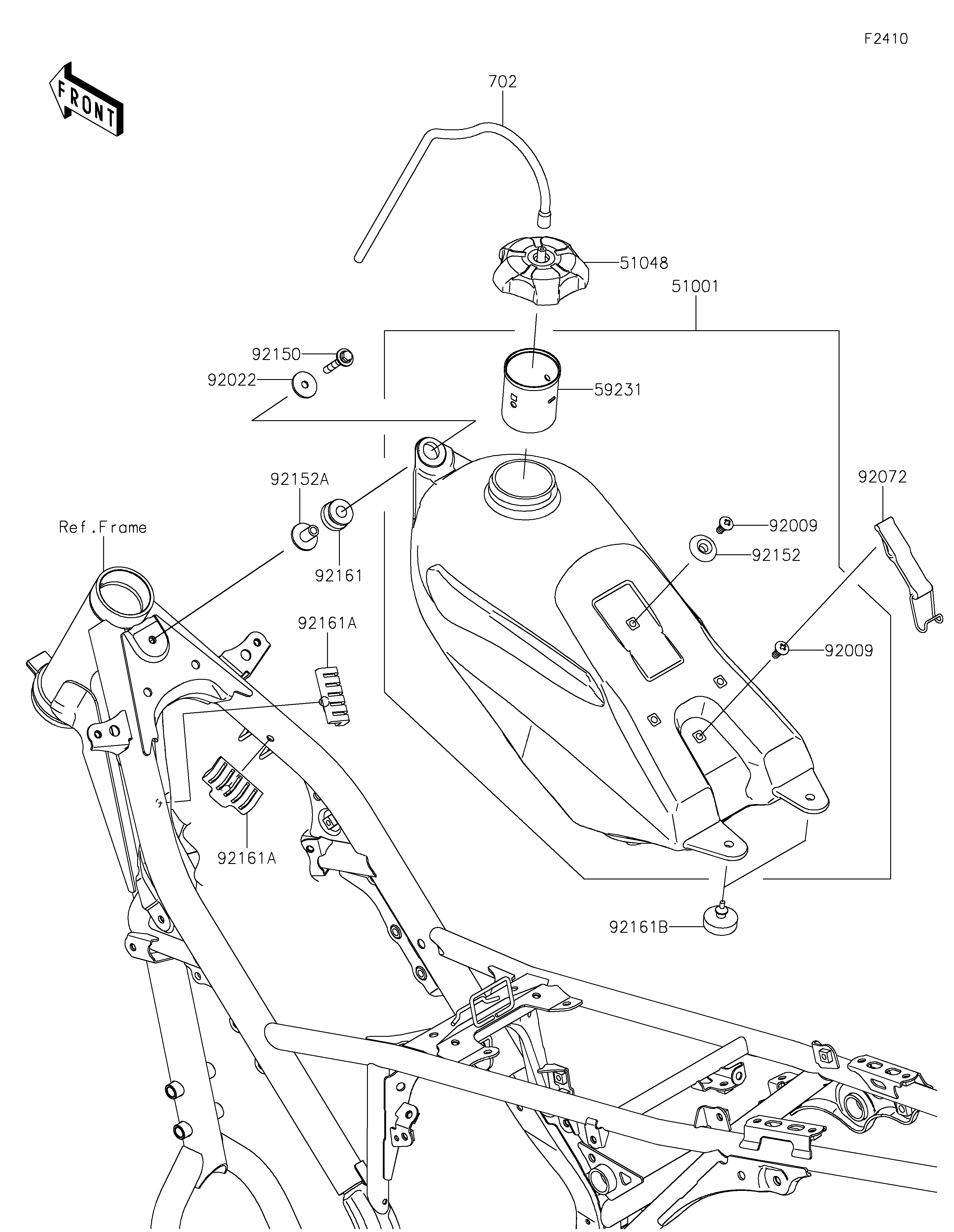

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TANK-COMP-FUEL 51001 51001-0875 1 CN,US
CAP-ASSY-TANK 51048 51048-0576 1 CN,US
FILLER 59231 59231-0042 1 CN,US
TUBE-RUBBER,5X8X400 702 702A05400 1 CN,US
SCREW,6MM 92009 92009-1971 2 CN,US
WASHER,6.5X24X2 92022 92022-1690 1 CN,US
BAND,FUEL TANK 92072 92072-0842 1 CN,US
BOLT,FLANGED,6X35 92150 92150-1527 1 CN,US
COLLAR 92152 92152-0569 1 CN,US
COLLAR,6.8X10X16 92152A 92152-2666 1 CN,US
DAMPER,FUEL TANK,FR 92161 92161-1392 1 CN,US
DAMPER 92161A 92161-2166 2 CN,US
DAMPER 92161B 92161-2203 2 CN,US
