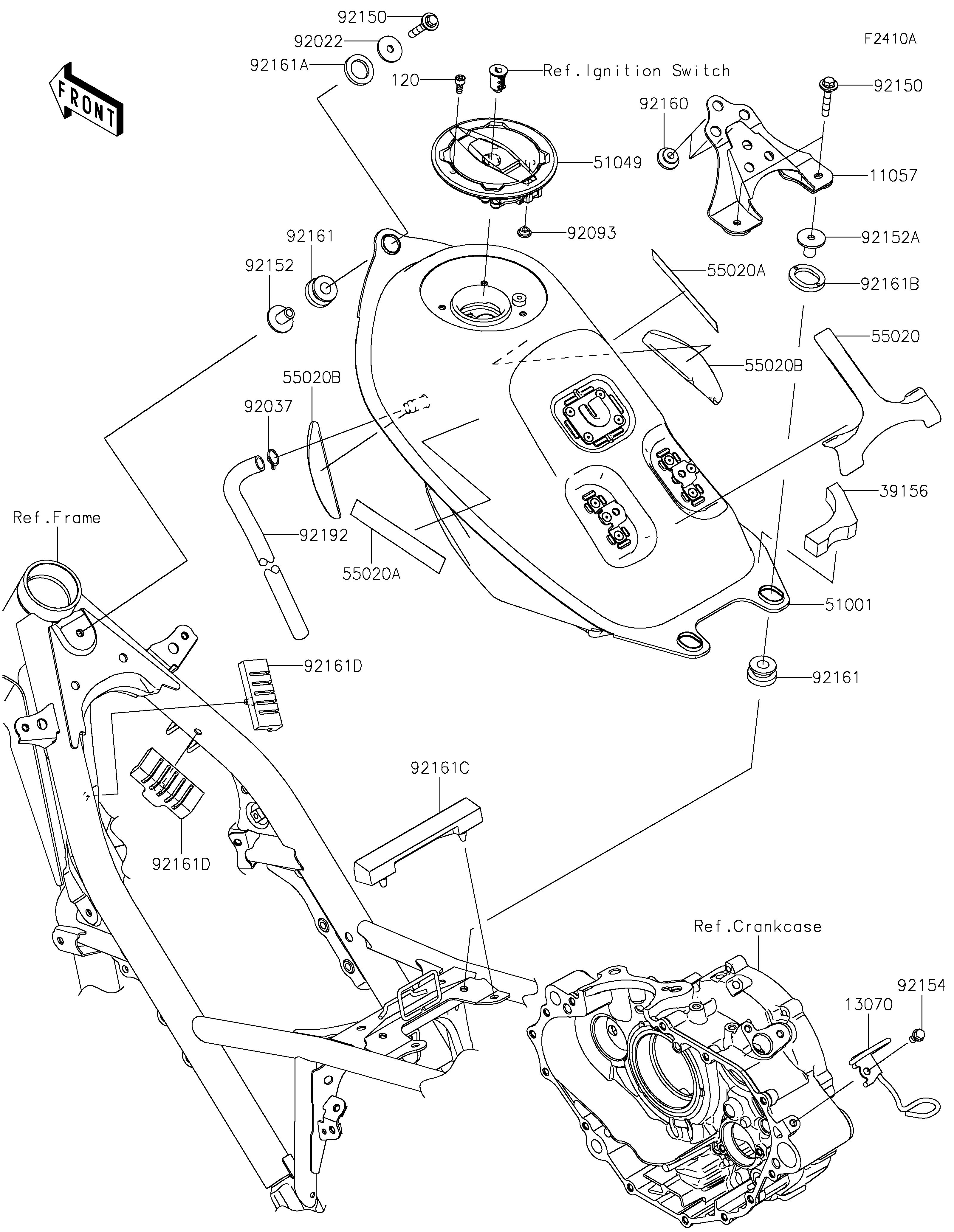

2020 KLX®230R - Fuel Tank(CA)

DOWNLOAD PDF
SELECT A NEW PART
11057
11057
13070
13070
39156
39156
51001
51001
51049
51049
55020
55020
55020A
55020A
55020A
55020A
55020B
55020B
55020B
55020B
92022
92022
92037
92037
92093
92093
92150
92150
92150
92150
92152
92152
92152A
92152A
92154
92154
92160
92160
92161
92161
92161
92161
92161A
92161A
92161B
92161B
92161C
92161C
120
120
92161D
92161D
92161D
92161D
92192
92192
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11057 11057-4023 1 CA
GUIDE 13070 13070-0909 1 CA
PAD 39156 39156-2463 1 CA
TANK-COMP-FUEL,F.S.BLACK 51001 51001-0876-25Q 1 CA
CAP-TANK 51049 51049-0735 1 CA
GUARD,FUEL TANK,UPP 55020 55020-2303 1 CA
GUARD,FUEL TANK,SIDE L&R 55020A 55020-2304 2 CA
GUARD,FUEL TANK,LWR 55020B 55020-2305 2 CA
WASHER,6.5X24X2 92022 92022-1690 1 CA
CLAMP,12.5MM 92037 92037-1271 1 CA
SEAL,FUEL TANK CAP 92093 92093-1030 1 CA
BOLT,FLANGED,6X35 92150 92150-1527 3 CA
COLLAR,6.8X10X16 92152 92152-2666 1 CA
COLLAR 92152A 92152-2678 2 CA
BOLT,FLANGED,6X10 92154 92154-0459 1 CA
DAMPER 92160 92160-1613 3 CA
DAMPER,FUEL TANK 92161 92161-1392 3 CA
DAMPER 92161A 92161-2216 1 CA
DAMPER 92161B 92161-2217 2 CA
DAMPER 92161C 92161-2231 1 CA
BOLT-SOCKET,5X12 120 120CA0512 4 CA
DAMPER 92161D 92161-2286 2 CA
TUBE,DRAIN 92192 92192-2305 1 CA
