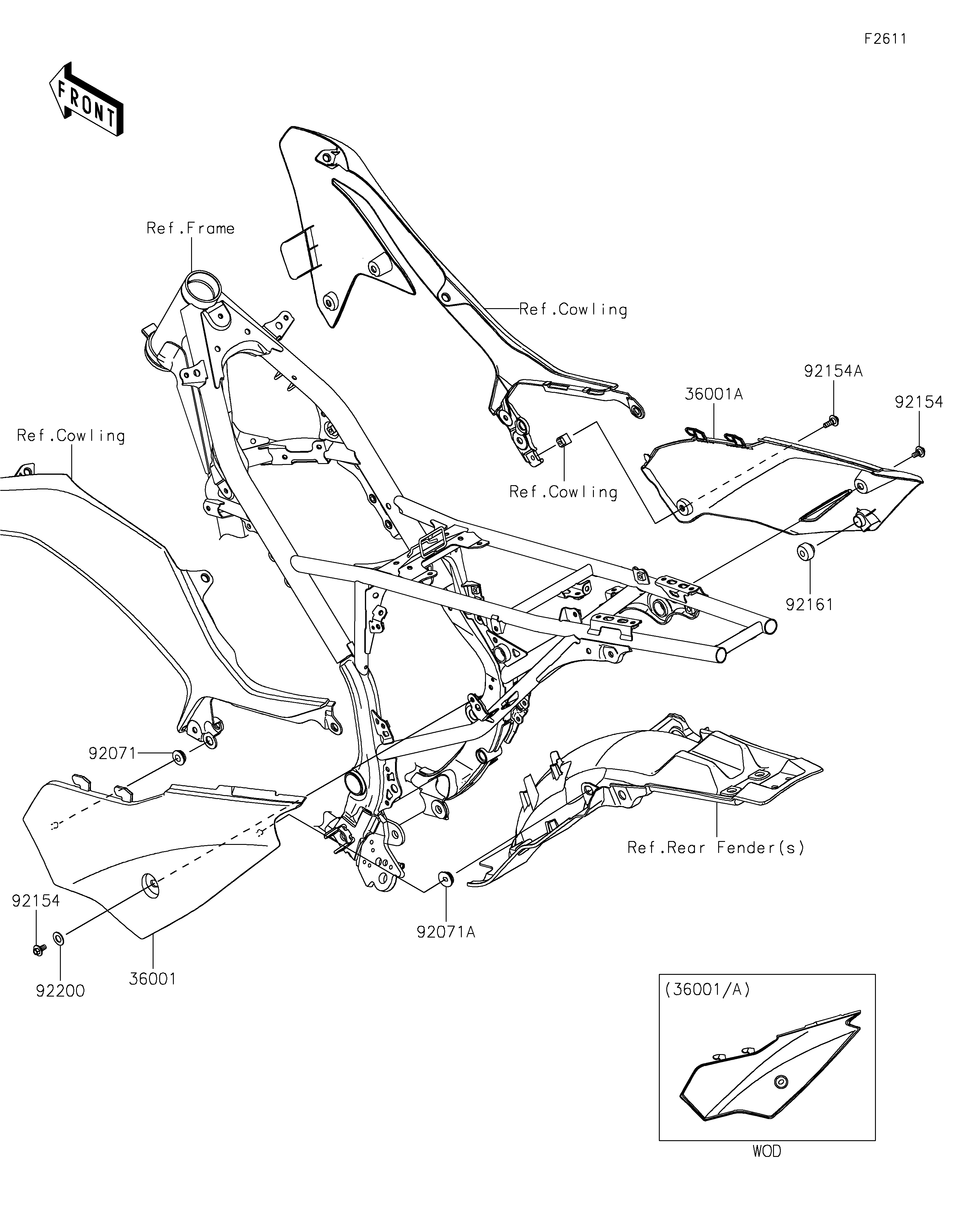

36001
36001A
92071
92071A
92154
92154
92154A
92161
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-SIDE,LH,B.WHITE 36001 36001-0678-266 1
COVER-SIDE,RH,B.WHITE 36001A 36001-0693-266 1
GROMMET 92071 92071-0794 1
GROMMET 92071A 92071-0795 1
BOLT,FLANGED,6X9 92154 92154-0546 2
BOLT,FLANGED,6X28 92154A 92154-1739 1
DAMPER 92161 92161-1783 1
WASHER,10.5X20X1.0 92200 92200-0870 1
