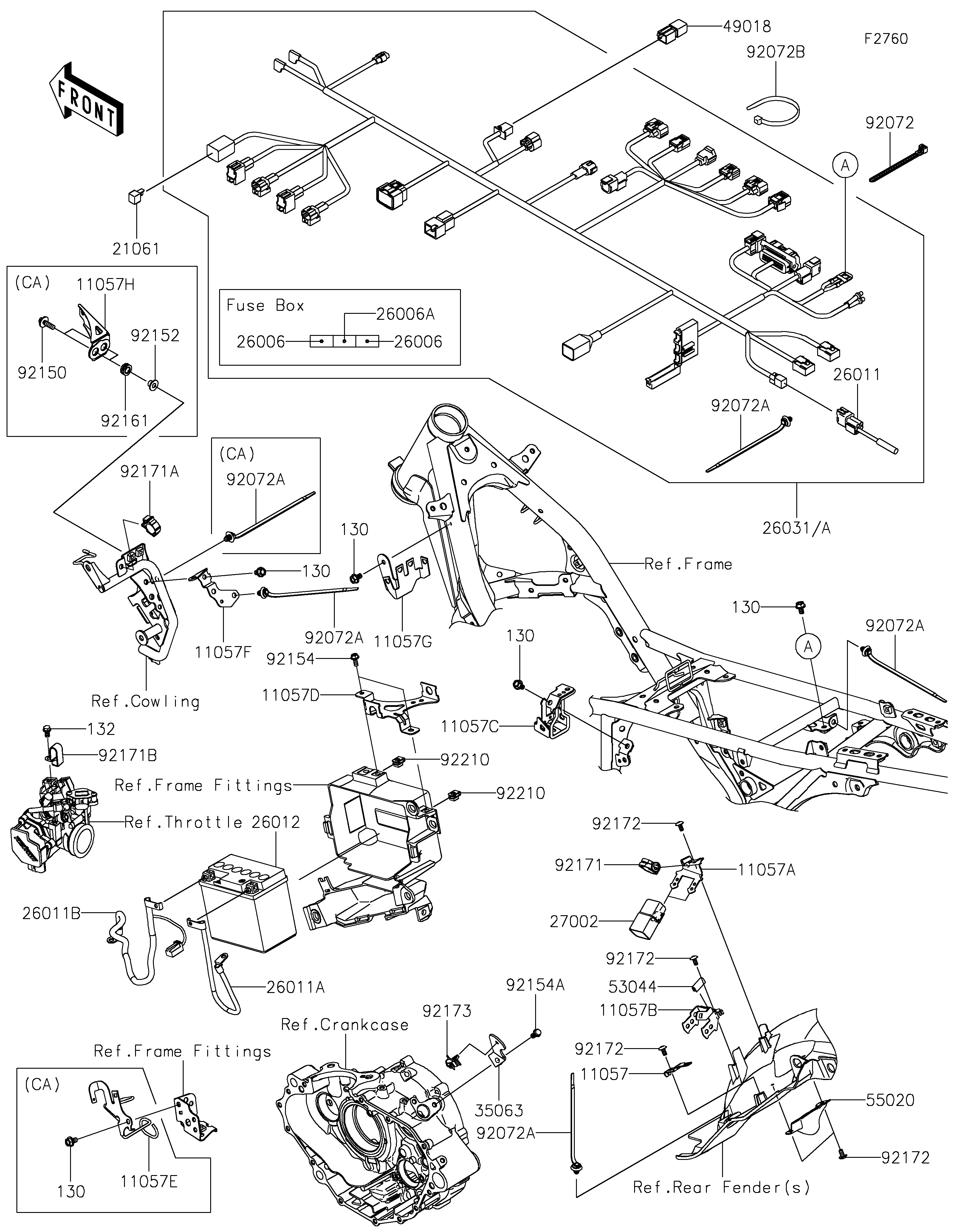

2020 KLX®230R - Chassis Electrical Equipment
11057
11057
11057A
11057A
11057B
11057B
11057C
11057C
11057D
11057D
11057E
11057E
11057F
11057F
11057G
11057G
11057H
11057H
21061
21061
26006
26006
26006
26006
26006A
26006A
26011
26011
26011A
26011A
26011B
26011B
26012
26012
26031
26031
26031A
26031A
27002
27002
35063
35063
49018
49018
53044
53044
55020
55020
92072
92072
92072A
92072A
92072A
92072A
92072A
92072A
92072A
92072A
92072A
92072A
92072B
92072B
92150
92150
92152
92152
92154
92154
92154A
92154A
92161
92161
92171
92171
92171A
92171A
130
130
130
130
130
130
130
130
130
130
132
132
92171B
92171B
92172
92172
92172
92172
92172
92172
92172
92172
92173
92173
92210
92210
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,DIAG | 11057 | 11057-2018 | 1 | ||
| BRACKET,RELAY-ASSY | 11057A | 11057-2019 | 1 | ||
| BRACKET,SWITCH | 11057B | 11057-2020 | 1 | ||
| BRACKET,VEHICLE DOWN SENSOR | 11057C | 11057-2021 | 1 | ||
| BRACKET,ECU | 11057D | 11057-2022 | 1 | ||
| BRACKET | 11057E | 11057-2463 | 1 | CA | |
| BRACKET,ENGINE START SWITCH | 11057F | 11057-2520 | 1 | ||
| BRACKET | 11057G | 11057-2539 | 1 | ||
| BRACKET,REGULATOR | 11057H | 11057-4104 | 1 | CA | |
| RECTIFIER | 21061 | 21061-1003 | 1 | ||
| FUSE,MINI BLADE,15A,BLUE | 26006 | 26006-0001 | 2 | ||
| FUSE,MINI BLADE,10A,RED | 26006A | 26006-1078 | 1 | ||
| WIRE-LEAD,DIAG | 26011 | 26011-0858 | 1 | ||
| WIRE-LEAD,BATTERY(+) | 26011A | 26011-1869 | 1 | ||
| WIRE-LEAD,BATTERY(-) | 26011B | 26011-1870 | 1 | ||
| BATTERY,YTX5L-BS,12V 4AH | 26012 | 26012-0905 | 1 | ||
| HARNESS,MAIN | 26031 | 26031-2573 | 1 | CA | |
| HARNESS,MAIN | 26031A | 26031-2807 | 1 | CN,US | |
| RELAY-ASSY | 27002 | 27002-1086 | 2 | ||
| STAY | 35063 | 35063-1476 | 1 | ||
| DIODE | 49018 | 49018-0005 | 1 | ||
| TRIM,9X6.5X20 | 53044 | 53044-0596 | 1 | ||
| GUARD,OXYGEN SENSOR | 55020 | 55020-2254 | 1 | ||
| BAND,L=140 | 92072 | 92072-1293 | 2 | ||
| BAND,OS170-FT7(BLACK) | 92072A | 92072-1414 | AR | ||
| BAND,L=152 | 92072B | 92072-3874 | 1 | ||
| BOLT,FLANGED,6X20 | 92150 | 92150-1339 | 2 | CA | |
| COLLAR | 92152 | 92152-2595 | 2 | CA | |
| BOLT,FLANGED,5X12 | 92154 | 92154-1215 | 2 | ||
| BOLT,FLANGED,6X12 | 92154A | 92154-1776 | 1 | ||
| DAMPER,8.3X16X6.4 | 92161 | 92161-1848 | 2 | CA | |
| CLAMP,20MM DIA. | 92171 | 92171-0069 | 1 | ||
| CLAMP,BRAKE HOSE | 92171A | 92171-0316 | 1 | ||
| BOLT-FLANGED,6X10 | 130 | 130BA0610 | 5 | CA | |
| BOLT-FLANGED-SMALL,6X10 | 132 | 132BB0610 | 1 | ||
| CLAMP | 92171B | 92171-0911 | 1 | ||
| SCREW,CROS,5X10 | 92172 | 92172-1255 | 5 | ||
| CLAMP | 92173 | 92173-1163 | 1 | ||
| NUT,PLATE,5MM | 92210 | 92210-0262 | 2 | ||
| BOLT-FLANGED,6X10 | 130 | 130BA0610 | 4 | CN,US |
