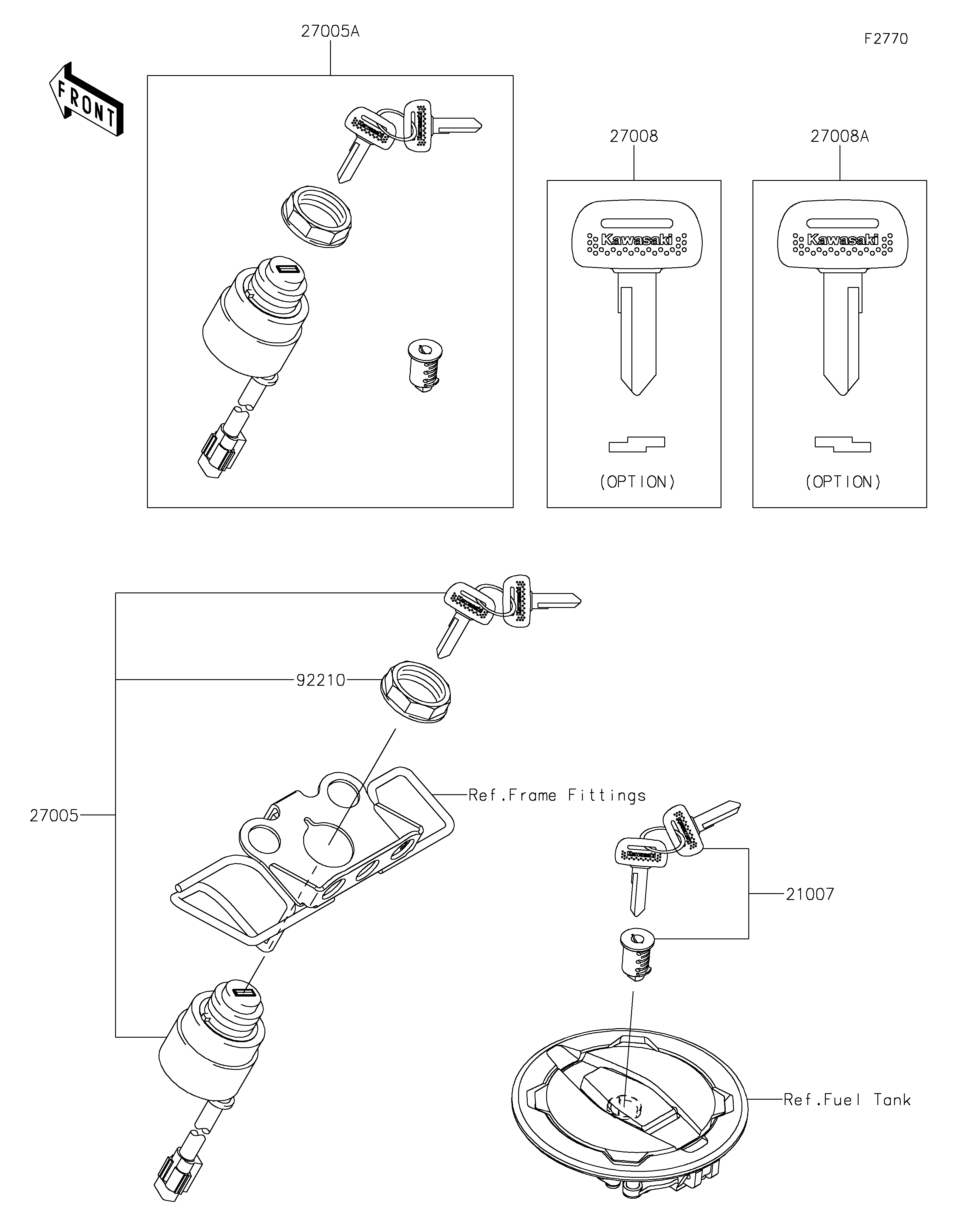

21007
27005
27005A
27008A
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ROTOR,LOCK,TANK CAP 21007 21007-5087 1 CA
SWITCH-ASSY-IGNITION 27005 27005-0669 1 CA
SWITCH-ASSY-IGNITION 27005A 27005-5169 1 CA
KEY-LOCK,BLANK 27008A 27008-0657 1 CA
NUT,IGNITION SWITCH 92210 92210-1264 1 CA
KEY-LOCK,BLANK 27008 27008-0656 1 CA
