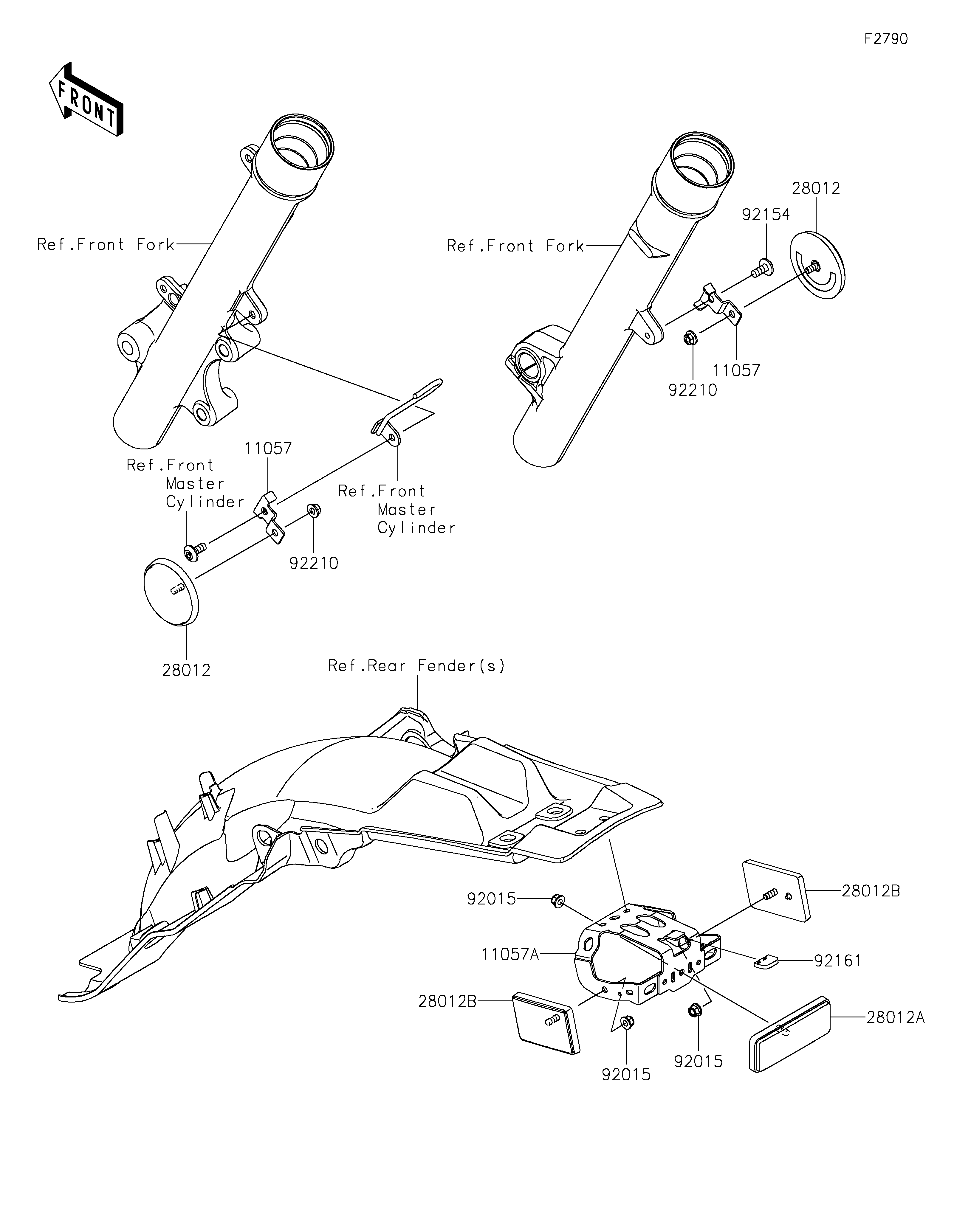

11057
11057
11057A
28012
28012
28012A
28012B
28012B
92015
92015
92015
92154
92161
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FR 11057 11057-2421 2 CN
BRACKET,RR 11057A 11057-2425 1 CN
REFLECTOR-REFLEX 28012 28012-0008 2 CN
REFLECTOR-REFLEX 28012A 28012-1077 1 CN
REFLECTOR-REFLEX 28012B 28012-1088 2 CN
NUT,LOCK,FLANGED,5MM 92015 92015-1752 3 CN
BOLT,SOCKET,6X14 92154 92154-3763 1 CN
DAMPER 92161 92161-0383 1 CN
NUT,FLANGED,5MM 92210 92210-0007 2 CN
