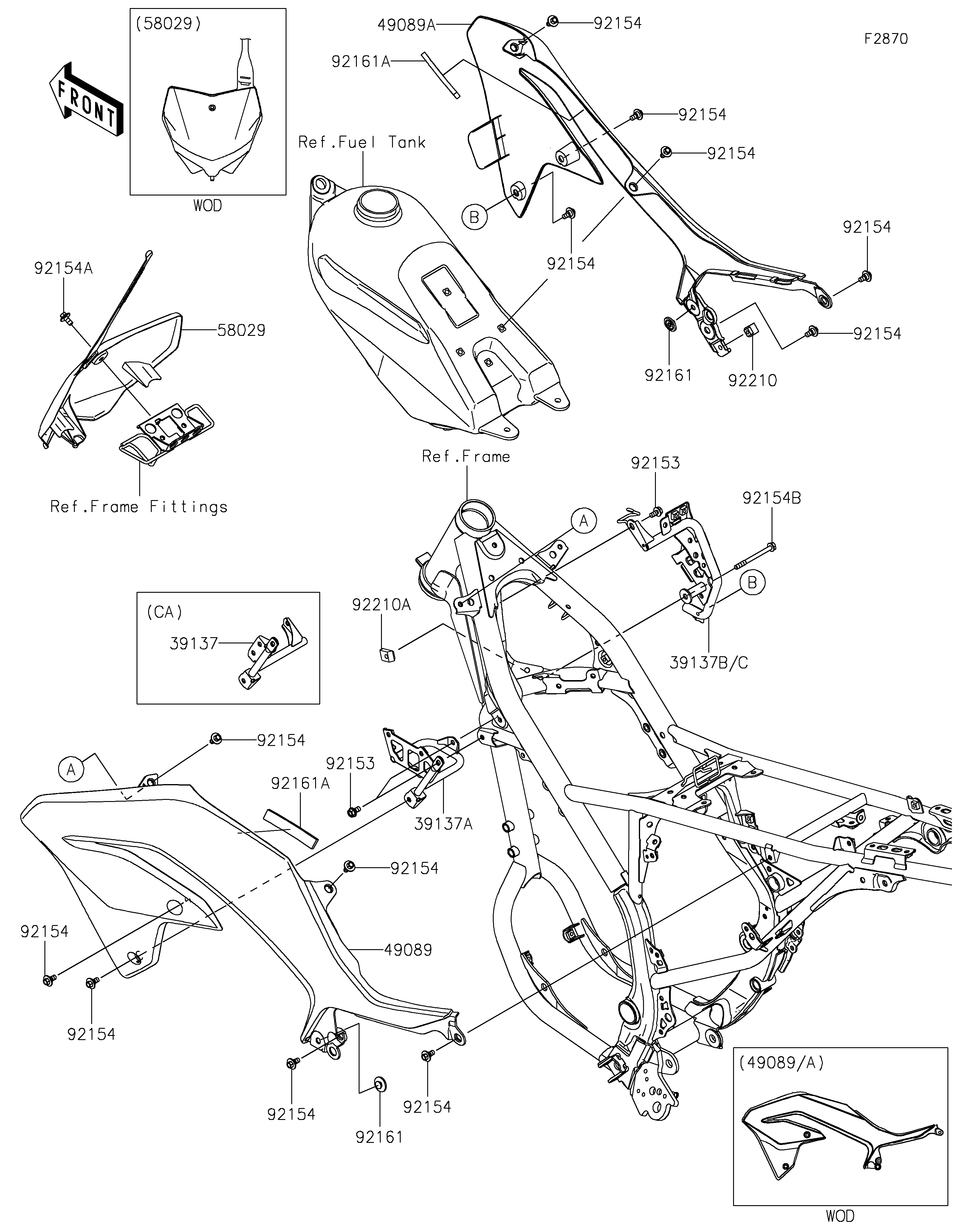

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
39137
39137A
39137B
39137C
49089
49089A
58029
92153
92153
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154
92154A
92154B
92161
92161
92161A
92161A
92210
92210A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| STAY-COMP,LH,P.SILVER | 39137 | 39137-0695-458 | 1 | CA | |
| STAY-COMP,LH,P.SILVER | 39137A | 39137-0701-458 | 1 | CN,US | |
| STAY-COMP,RH,P.SILVER | 39137B | 39137-0702-458 | 1 | _________________________________________CN,US | |
| STAY-COMP,RH,P.SILVER | 39137C | 39137-0706-458 | 1 | CA | |
| SHROUD-ENGINE,LH,L.GREEN | 49089 | 49089-0957-290 | 1 | ||
| SHROUD-ENGINE,RH,L.GREEN | 49089A | 49089-0958-290 | 1 | ||
| PLATE-NUMBER,B.WHITE | 58029 | 58029-0005-266 | 1 | ||
| BOLT,FLANGED,6X12 | 92153 | 92153-1283 | 3 | ||
| BOLT,FLANGED,6X9 | 92154 | 92154-0546 | 12 | ||
| BOLT,FLANGED,6X14 | 92154A | 92154-1231 | 1 | ||
| BOLT-FLANGED,6X70 | 92154B | 92154-4093 | 1 | ||
| DAMPER,8X22X10 | 92161 | 92161-1685 | 2 | ||
| DAMPER,70X15X6 | 92161A | 92161-1838 | 2 | ||
| NUT,6MM | 92210 | 92210-0218 | 1 | ||
| NUT | 92210A | 92210-1771 | 1 |
