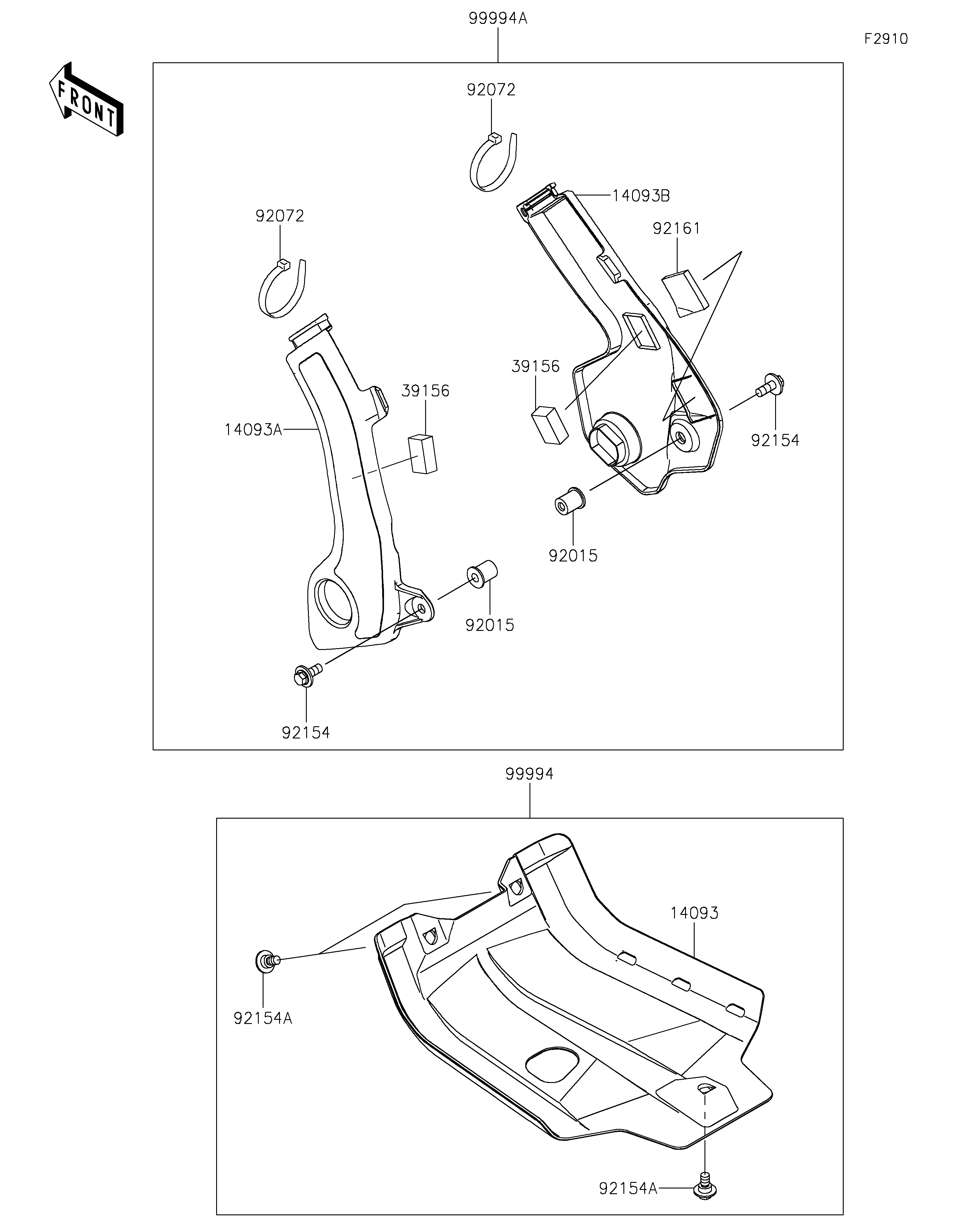

2020 KLX®230R - Accessory(Frame Cover)

DOWNLOAD PDF
SELECT A NEW PART
14093
14093A
14093B
39156
39156
92015
92015
92072
92072
92154
92154
92154A
92154A
92161
99994
99994A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,SKID PLATE 14093 14093-0857 1
COVER,FRAME,LH 14093A 14093-0858 1
COVER,FRAME,RH 14093B 14093-0859 1
PAD,15X25X10 39156 39156-2489 2
NUT 92015 92015-1700 2
BAND,L=202 92072 92072-1195 2
BOLT,FLANGED-SMALL,6X16 92154 92154-1183 2
BOLT,FLANGED,6X9 92154A 92154-4084 3
DAMPER 92161 92161-1591 1
SKID PLATE 99994 99994-1246 1
COVER-FRAME 99994A 99994-1247 1
