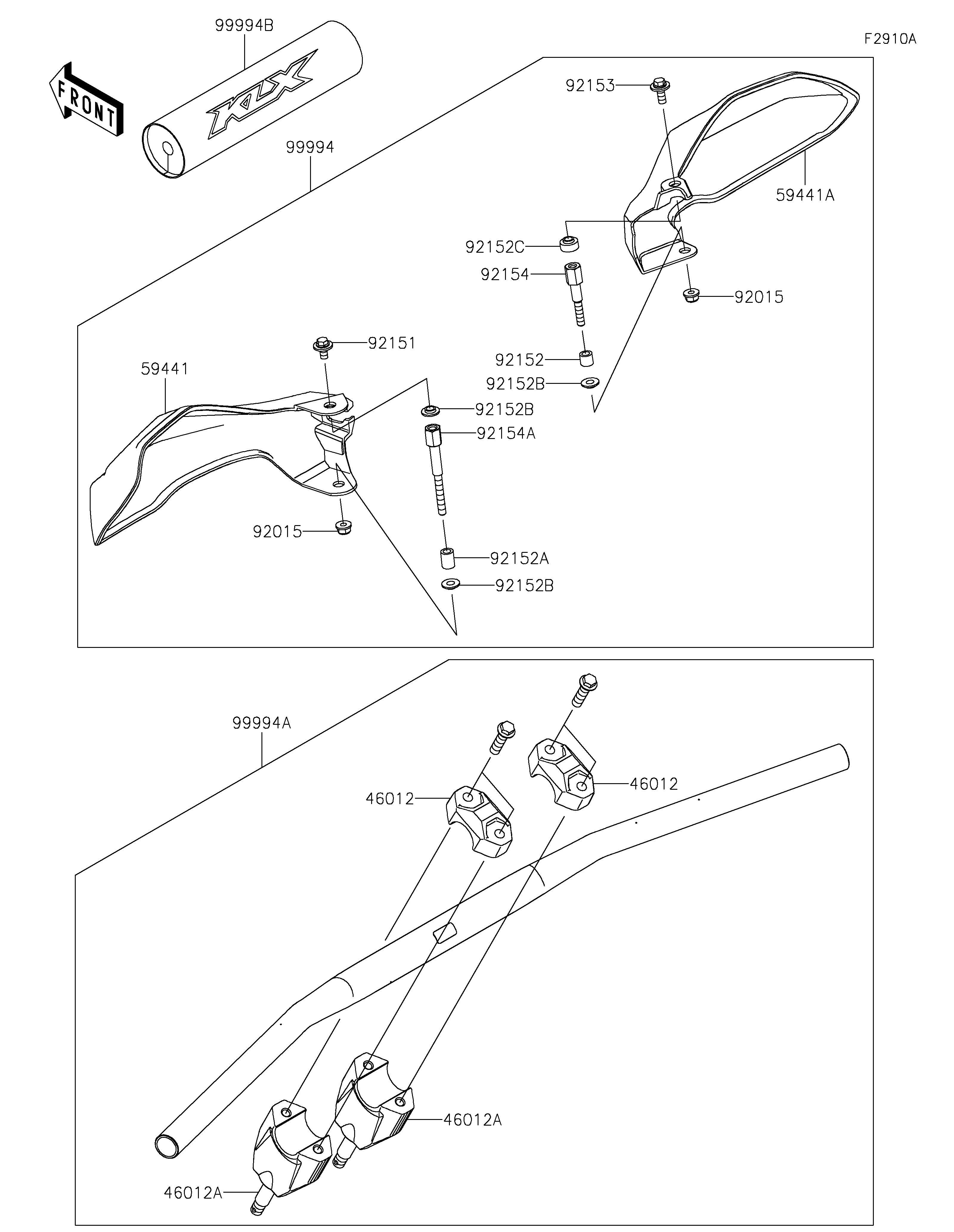

2020 KLX®230R - Accessory(Handle)

DOWNLOAD PDF
SELECT A NEW PART
46012
46012
46012A
46012A
59441
59441A
92015
92015
92151
92152
92152A
92152B
92152B
92152B
92152C
92153
92154
92154A
99994
99994A
99994B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER-HANDLE,UPP,P.SILVER 46012 46012-0359-458 2
HOLDER-HANDLE,LWR,P.SILVER 46012A 46012-0360-458 2
COVER-HANDLE,LH,EBONY 59441 59441-0045-6C 1
COVER-HANDLE,RH,EBONY 59441A 59441-0046-6C 1
NUT,LOCK,FLANGED,6MM 92015 92015-1603 2
BOLT,6X12 92151 92151-1985 1
COLLAR,6.5X10.5X9.3 92152 92152-1992 1
COLLAR,6.5X10.5X14 92152A 92152-2302 1
COLLAR,6.5X15X3.4 92152B 92152-2314 3
COLLAR 92152C 92152-2592 1
BOLT,FLANGED,6X16 92153 92153-1059 1
BOLT 92154 92154-1670 1
BOLT 92154A 92154-2359 1
HAND GUARD,EBONY 99994 99994-1248-6C 1
FAT TYPE HANDLE BAR,P.SILVER 99994A 99994-1250-458 1
HANDLE-BAR PAD 99994B 99994-1274 1
