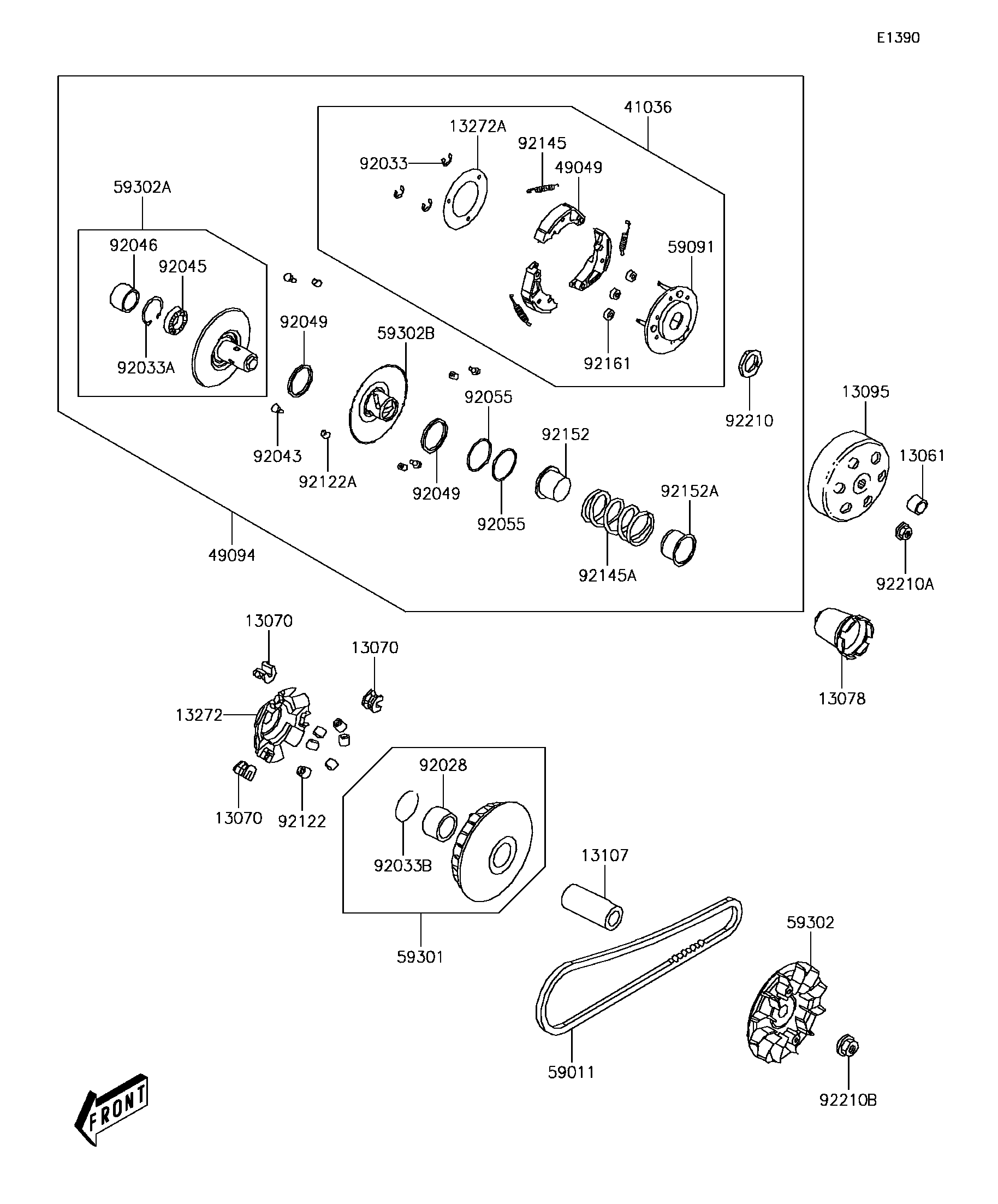

2017 BRUTE FORCE® 300 - Belt Converter

DOWNLOAD PDF
SELECT A NEW PART
13061
13070
13070
13070
13078
13095
13107
13272
13272A
41036
49049
49094
59011
59091
59301
59302
59302A
59302B
92028
92033
92033A
92033B
92043
92045
92046
92049
92049
92055
92055
92122
92122A
92145
92145A
92152
92152A
92161
92210
92210A
92210B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOSS,DRIVE SHAFT 13061 13061-Y002 1
GUIDE 13070 13070-Y001 3
RATCHET 13078 13078-Y005 1
HOUSING-COMP-CLUTCH 13095 13095-Y004 1
SHAFT,DRIVE 13107 13107-Y007 1
PLATE,RAMP 13272 13272-Y006 1
PLATE,CLUTCH SIDE 13272A 13272-Y007 1
HUB-ASSY 41036 41036-Y003 1
SHOE-CLUTCH 49049 49049-Y001 3
CONVERTER-ASSY-DRIVEN 49094 49094-Y003 1
BELT,DRIVE 59011 59011-Y003 1
PULLEY,DRIVEN 59091 59091-Y001 1
SHEAVE-MOVABLE 59301 59301-Y003 1
SHEAVE-COMP 59302 59302-Y007 1
SHEAVE-COMP,FIXED 59302A 59302-Y008 1
SHEAVE-COMP,MOVABLE 59302B 59302-Y009 1
BUSHING,27X33X37 92028 92028-Y001 1
RING-SNAP,7MM 92033 92033-Y016 3
RING-SNAP 92033A 92033-Y017 1
RING-SNAP,33MM 92033B 92033-Y018 1
PIN,GUIDE 92043 92043-Y016 4
BEARING-BALL,6902U 92045 92045-Y019 1
BEARING-NEEDLE,22X29X18 92046 92046-Y005 1
SEAL-OIL 92049 92049-Y012 2
RING-O 92055 92055-Y024 2
ROLLER,WEIGHT 92122 92122-Y007 6
ROLLER,GUIDE 92122A 92122-Y008 4
SPRING,CLUTCH 92145 92145-Y026 3
SPRING 92145A 92145-Y027 1
COLLAR,SEAL 92152 92152-Y016 1
COLLAR,SPRING 92152A 92152-Y017 1
DAMPER,CLUTCH 92161 92161-Y009 3
NUT,28MM 92210 92210-Y002 1
NUT,12MM 92210A 92210-Y037 1
NUT,FLANGE,14MM 92210B 92210-Y038 1
