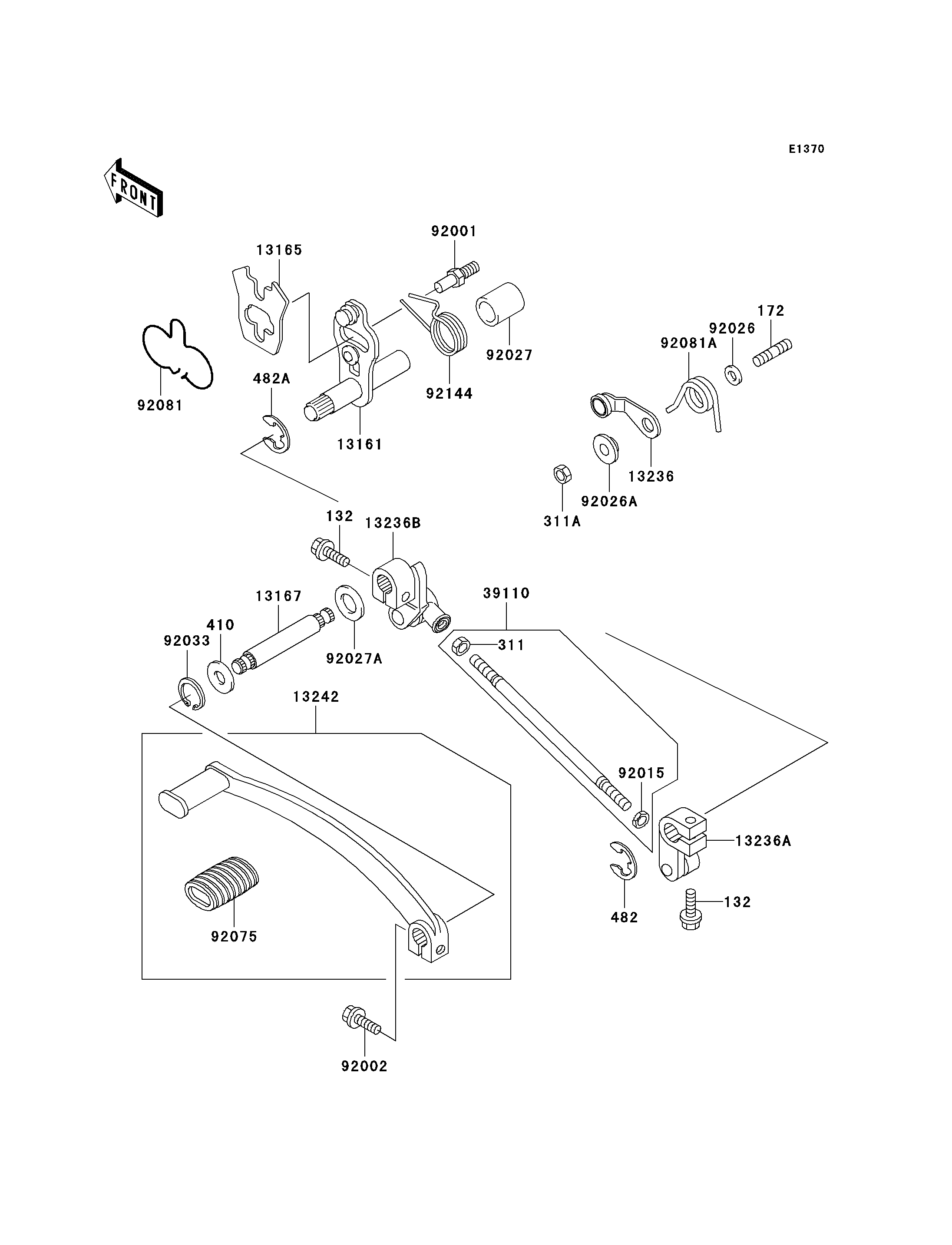

2009 Vulcan® 500 LTD - Gear Change Mechanism
132
132
172
311
311A
410
482
482A
13161
13165
13167
13236
13236A
13236B
13242
39110
92001
92002
92015
92026
92026A
92027
92027A
92033
92075
92081
92081A
92144
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL,6X20 | 132 | 132BB0620 | 2 | ||
BOLT-STUD,6X14 | 172 | 172BA0614 | 1 | ||
NUT-HEX | 311 | 311BA0600 | 1 | ||
NUT-HEX,6MM | 311A | 311BB0600 | 1 | ||
WASHER-PLAIN-SMALL,12MM,BLACK | 410 | 410AB1200 | 1 | ||
CIRCLIP-TYPE-E | 482 | 482EA7000 | 1 | ||
CIRCLIP-TYPE-E,12MM | 482A | 482J0200 | 1 | ||
LEVER-COMP-CHANGE SHAFT | 13161 | 13161-1117 | 1 | ||
PAWL,CHANGE LEVER | 13165 | 13165-1034 | 1 | ||
SHAFT-CHANGE | 13167 | 13167-1059 | 1 | ||
LEVER-COMP,GEAR POSITION | 13236 | 13236-1103 | 1 | ||
LEVER-COMP,CHANGE | 13236A | 13236-1123 | 1 | ||
LEVER-COMP,CHANGE | 13236B | 13236-1401 | 1 | ||
LEVER-ASSY-CHANGE,PEDAL | 13242 | 13242-1331 | 1 | ||
ROD-ASSY-TIE | 39110 | 39110-1116 | 1 | ||
BOLT,RETURN SPRING | 92001 | 92001-1455 | 1 | ||
BOLT,6X20 | 92002 | 92002-1237 | 1 | ||
NUT,LEFT HANDED,6MM | 92015 | 92015-1178 | 1 | ||
SPACER,6.3X12X1.0 | 92026 | 92026-094 | 1 | ||
SPACER | 92026A | 92026-1217 | 1 | ||
COLLAR,13X18.3X21.5 | 92027 | 92027-1440 | 1 | ||
COLLAR,13.2X22X5.5 | 92027A | 92027-1855 | 1 | ||
RING-SNAP,11MM | 92033 | 92033-1189 | 1 | ||
DAMPER | 92075 | 92075-1585 | 1 | ||
SPRING,CHANGE LEVER | 92081 | 92081-1785 | 1 | ||
SPRING,POSITION LEVER | 92081A | 92081-1786 | 1 | ||
SPRING,CHANGE PEDAL RETURN | 92144 | 92144-1644 | 1 |
BOLT-FLANGED-SMALL,6X20 | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-STUD,6X14 | |
REF # | 172 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT-HEX | |
REF # | 311 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT-HEX,6MM | |
REF # | 311A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER-PLAIN-SMALL,12MM,BLACK | |
REF # | 410 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CIRCLIP-TYPE-E | |
REF # | 482 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CIRCLIP-TYPE-E,12MM | |
REF # | 482A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-COMP-CHANGE SHAFT | |
REF # | 13161 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PAWL,CHANGE LEVER | |
REF # | 13165 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-CHANGE | |
REF # | 13167 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-COMP,GEAR POSITION | |
REF # | 13236 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-COMP,CHANGE | |
REF # | 13236A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-COMP,CHANGE | |
REF # | 13236B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-ASSY-CHANGE,PEDAL | |
REF # | 13242 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD-ASSY-TIE | |
REF # | 39110 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,RETURN SPRING | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X20 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,LEFT HANDED,6MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPACER,6.3X12X1.0 | |
REF # | 92026 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPACER | |
REF # | 92026A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,13X18.3X21.5 | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,13.2X22X5.5 | |
REF # | 92027A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-SNAP,11MM | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,CHANGE LEVER | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,POSITION LEVER | |
REF # | 92081A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,CHANGE PEDAL RETURN | |
REF # | 92144 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
