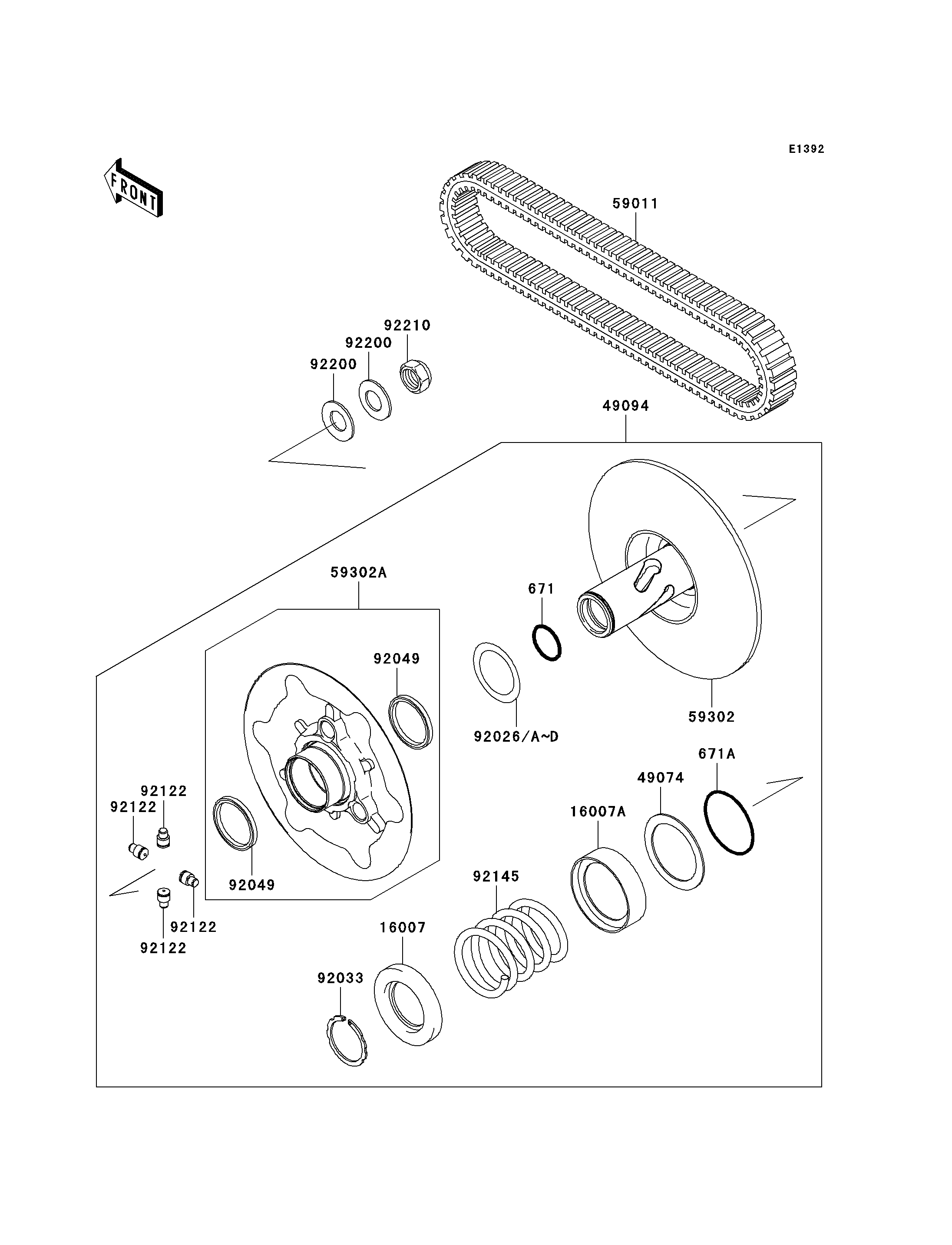

2006 Prairie 700 4x4 - Driven Converter/Drive Belt
671
671A
16007
16007A
49074
49094
59011
59302
59302A
92026
92026A
92026B
92026C
92026D
92033
92049
92049
92122
92122
92122
92122
92145
92200
92200
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
O RING | 671 | 671D2530 | 1 | ||
O RING | 671A | 671D2550 | 1 | ||
SEAT-SPRING | 16007 | 16007-1203 | 1 | ||
SEAT-SPRING,SHEAVE MOVABLE | 16007A | 16007-1221 | 1 | ||
PLATE-THRUST | 49074 | 49074-1055 | 1 | ||
CONVERTER-ASSY-DRIVEN | 49094 | 49094-0005 | 1 | ||
BELT | 59011 | 59011-0003 | 1 | ||
SHEAVE-COMP,FIXED | 59302 | 59302-0001 | 1 | ||
SHEAVE-COMP,MOVABLE | 59302A | 59302-0002 | 1 | ||
SPACER,T=0.30 | 92026 | 92026-0034 | AR | ||
SPACER,T=1.00 | 92026A | 92026-1565 | 1 | ||
SPACER,T=0.60 | 92026B | 92026-1569 | AR | ||
SPACER,T=1.40 | 92026C | 92026-1570 | AR | ||
SPACER,T=0.80 | 92026D | 92026-1617 | AR | ||
RING-SNAP | 92033 | 92033-1317 | 1 | ||
SEAL-OIL | 92049 | 92049-1528 | 2 | ||
ROLLER | 92122 | 92122-1209 | 4 | ||
SPRING,YELLOW | 92145 | 92145-1462 | 1 | ||
WASHER | 92200 | 92200-1505 | 2 | ||
NUT,18MM | 92210 | 92210-1367 | 1 |
