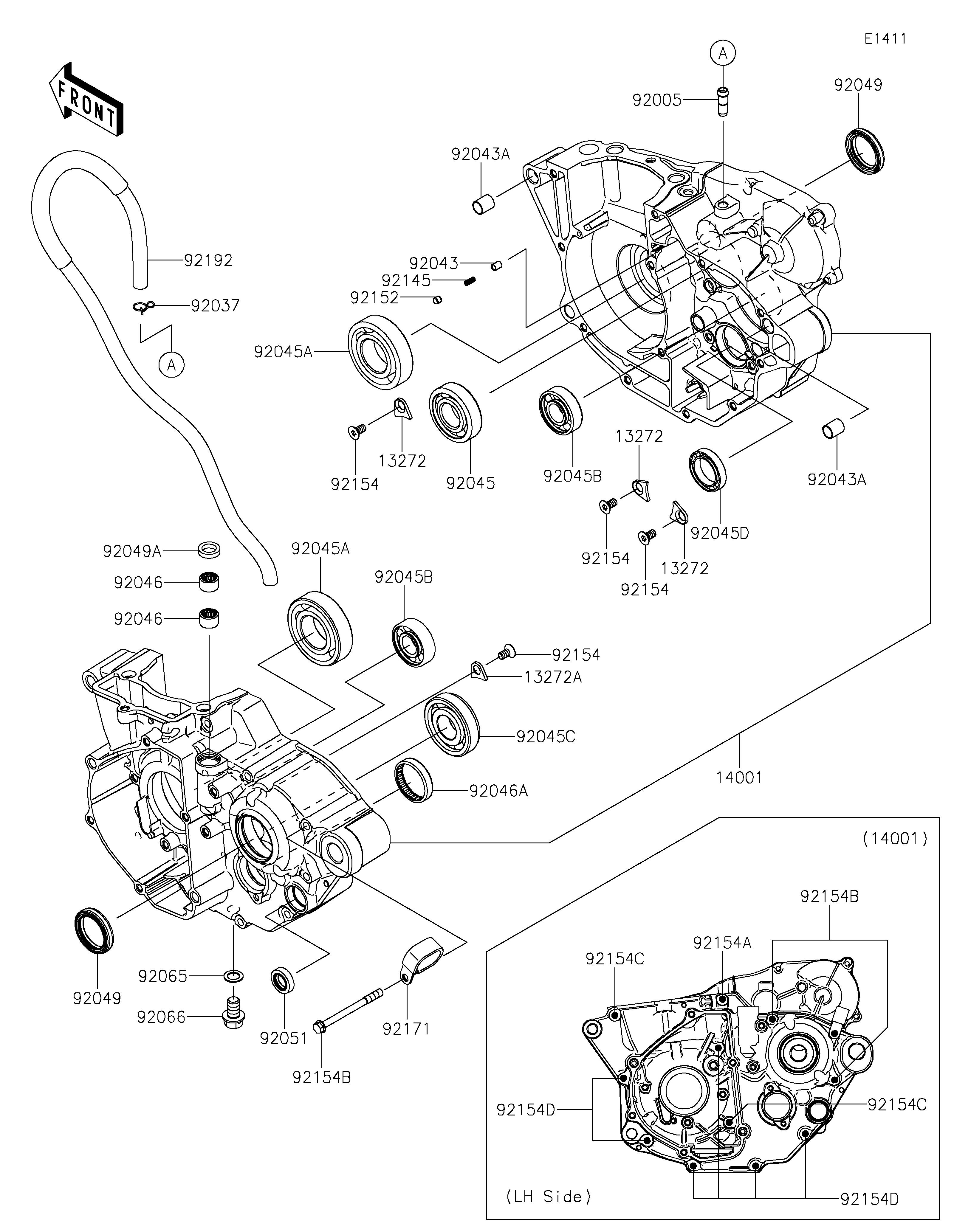

2020 KX250 - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
13272
13272
13272
13272A
14001
92005
92037
92043
92043A
92043A
92045
92045A
92045A
92045B
92045B
92045C
92045D
92046
92046
92046A
92049
92049
92049A
92051
92065
92066
92145
92152
92154
92154
92154
92154
92154A
92154B
92154B
92154C
92154C
92154D
92154D
92171
92192
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE 13272 13272-0488 3
PLATE 13272A 13272-0670 1
SET-CRANKCASE 14001 14001-0721 1
FITTING 92005 92005-1369 1
CLAMP,TUBE 92037 92037-1972 1
PIN,PLUNGER 92043 92043-1676 1
PIN,10.1X12X14 92043A 92043-4009 2
BEARING-BALL,22X50X14 92045 92045-0051 1
BEARING-BALL,CRANKSHAFT MAIN 92045A 92045-0827 2
BEARING-BALL,TMB203LU 92045B 92045-1287 2
BEARING-BALL,SX04A81C3 92045C 92045-1335 1
BEARING-BALL,6805JRZ 92045D 92045-1432 1
BEARING-NEEDLE,HK1210FM 92046 92046-0034 2
BEARING-NEEDLE,7E-HKS33X38X8 92046A 92046-1221 1
SEAL-OIL,TC 30 40 7 92049 92049-0030 2
SEAL-OIL,AG0353-F0 92049A 92049-1262 1
SEAL-OIL,TB13225.5 92051 92051-005 1
GASKET,10.5X16X1 92065 92065-058 1
PLUG,DRAIN 92066 92066-1437 1
SPRING 92145 92145-0453 1
COLLAR 92152 92152-2453 1
BOLT,TORX 92154 92154-1621 4
BOLT,FLANGED,6X65 92154A 92154-1929 1
BOLT,FLANGED,6X70 92154B 92154-1930 3
BOLT,FLANGED,6X50 92154C 92154-2097 2
BOLT,FLANGED,6X60 92154D 92154-2098 6
CLAMP 92171 92171-0594 1
TUBE,BREATHER 92192 92192-1658 1
