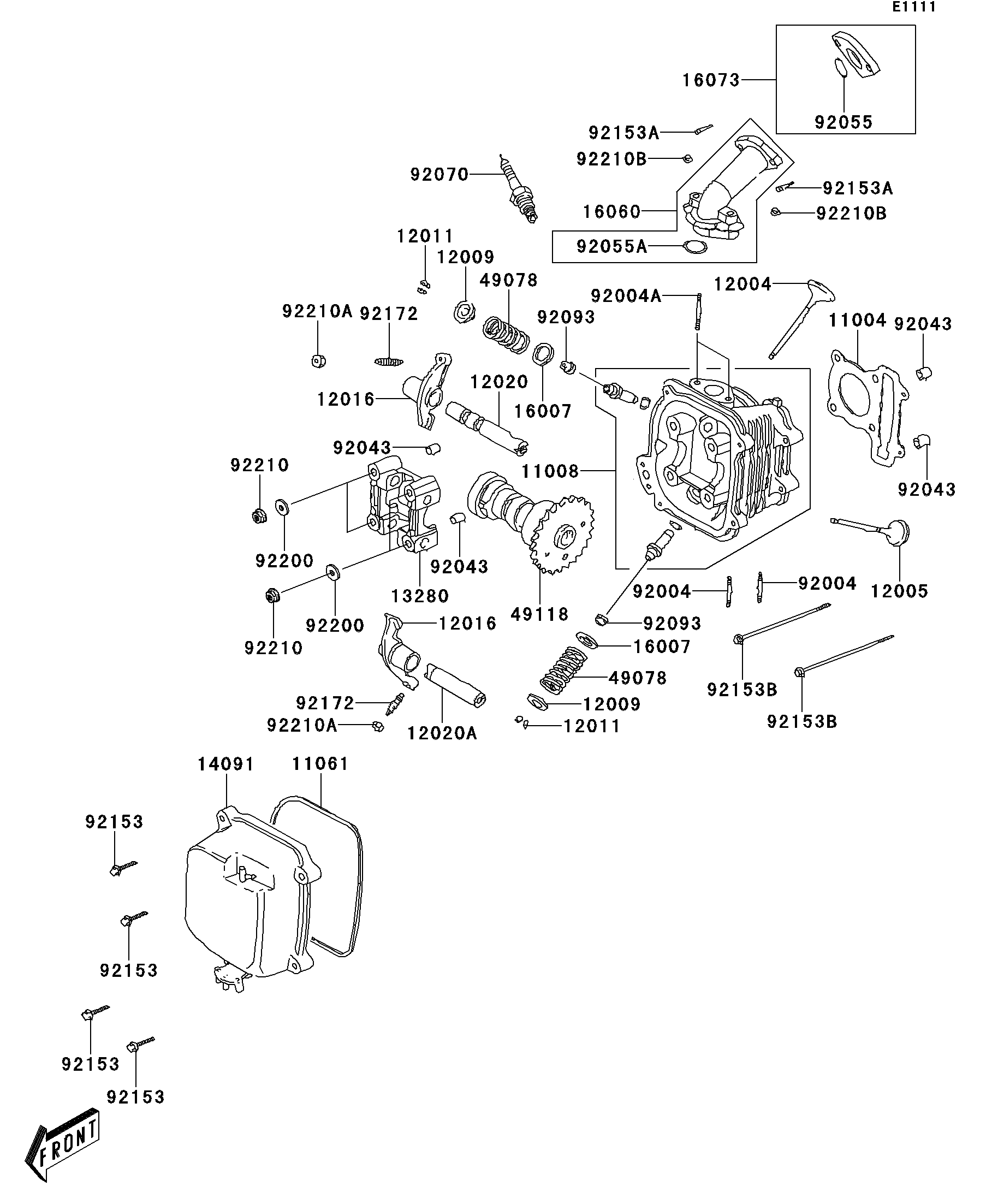

2007 KFX50 - Cylinder Head(B7F)

DOWNLOAD PDF
SELECT A NEW PART
11004
11008
11061
12004
12005
12009
12009
12011
12011
12016
12016
12020
12020A
13280
14091
16007
16007
16060
16073
49078
49078
49118
92004
92004
92004A
92043
92043
92043
92043
92055
92055A
92070
92093
92093
92153
92153
92153
92153
92153A
92153A
92153B
92153B
92172
92172
92200
92200
92210
92210
92210A
92210A
92210B
92210B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-HEAD 11004 11004-Y001 1
HEAD-COMP-CYLINDER 11008 11008-Y001 1
GASKET,CYLINDER HEAD COVER 11061 11061-Y011 1
VALVE-INTAKE 12004 12004-Y001 1
VALVE-EXHAUST 12005 12005-Y001 1
RETAINER-VALVE SPRING 12009 12009-Y001 2
COLLET 12011 12011-Y001 4
ARM-ROCKER 12016 12016-Y002 2
SHAFT-ROCKER,IN 12020 12020-Y002 1
SHAFT-ROCKER,EX 12020A 12020-Y004 1
HOLDER,CAMSHAFT 13280 13280-Y001 1
COVER,CYLINDER HEAD 14091 14091-Y001 1
SEAT-SPRING 16007 16007-Y001 2
PIPE-INTAKE 16060 16060-Y002 1
INSULATOR 16073 16073-Y002 1
SPRING-ENGINE VALVE,OUTER 49078 49078-Y001 2
CAMSHAFT-COMP 49118 49118-Y001 1
STUD,6X32 92004 92004-Y005 2
STUD,6X50 92004A 92004-Y007 2
PIN,8X14 92043 92043-Y006 4
RING-O,23X2.4 92055 92055-Y007 1
RING-O,22X2.0 92055A 92055-Y008 1
PLUG-SPARK,CR7HSA 92070 92070-Y002 1
SEAL 92093 92093-Y001 2
BOLT,FLANGE,6X25 92153 92153-Y027 4
BOLT,FLANGE,6X25 92153A 92153-Y051 2
BOLT,FLANGE,6X85 92153B 92153-Y055 2
SCREW 92172 92172-Y003 2
WASHER,7MM 92200 92200-Y006 4
NUT,7MM 92210 92210-Y003 4
NUT 92210A 92210-Y004 2
NUT,6MM 92210B 92210-Y027 2
