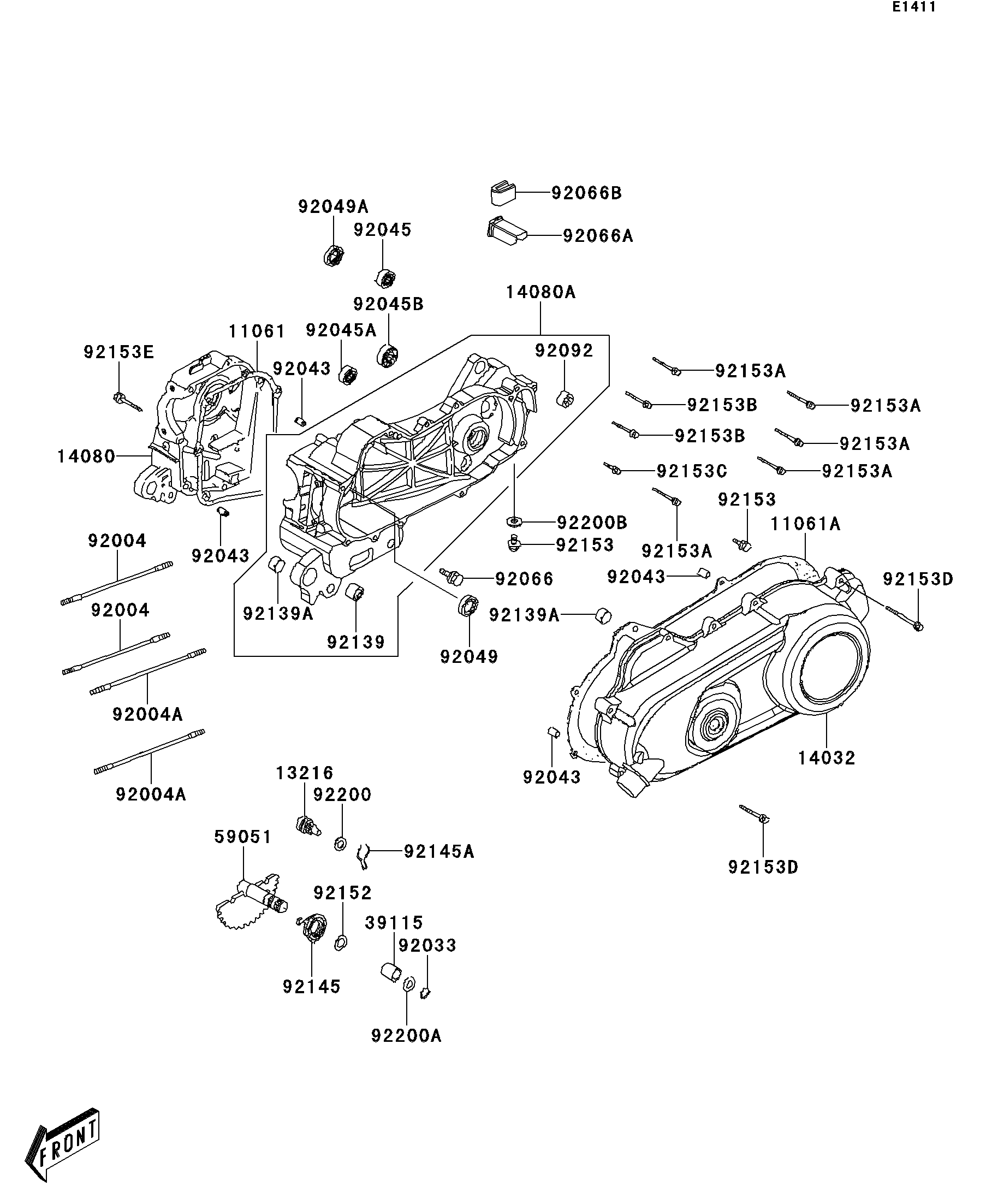

2008 KFX®50 - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
11061
11061A
13216
14032
14080
14080A
39115
59051
92004
92004
92004A
92004A
92033
92043
92043
92043
92043
92045
92045A
92045B
92049
92049A
92066
92066A
92066B
92092
92139
92139A
92139A
92145
92145A
92152
92153
92153
92153A
92153A
92153A
92153A
92153A
92153B
92153B
92153C
92153D
92153D
92153E
92200
92200A
92200B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,CRANK CASE 11061 11061-Y002 1
GASKET,CLUTCH COVER 11061A 11061-Y006 1
GEAR-COMP,KICK DRIVEN 13216 13216-Y001 1
COVER-CLUTCH,BLACK 14032 14032-Y001-931 1
CRANKCASE,RH 14080 14080-Y002 1
CRANKCASE,LH 14080A 14080-Y004 1
SHAFT-IDLER,KICK 39115 39115-Y001 1
GEAR-SPUR,KICK STARTER 59051 59051-Y001 1
STUD,7X168 92004 92004-Y001 2
STUD,7X176 92004A 92004-Y003 2
RING-SNAP 92033 92033-Y012 1
PIN,8X14 92043 92043-Y012 4
BEARING-BALL,6201 92045 92045-Y002 1
BEARING-BALL,6203 92045A 92045-Y003 1
BEARING-BALL,6203 92045B 92045-Y006 1
SEAL-OIL,19.8X30X5 92049 92049-Y001 1
SEAL-OIL,17X30X6 92049A 92049-Y006 1
PLUG,DRAIN 92066 92066-Y003 1
PLUG 92066A 92066-Y004 1
PLUG 92066B 92066-Y006 1
BUSHING-RUBBER 92092 92092-Y002 1
BUSHING 92139 92139-Y001 1
BUSHING 92139A 92139-Y002 2
SPRING 92145 92145-Y001 1
SPRING,KICK DRIVEN GEAR 92145A 92145-Y011 1
COLLAR 92152 92152-Y006 1
BOLT,FLANGE,8X12 92153 92153-Y001 2
BOLT,FLANGE,8X40 92153A 92153-Y035 5
BOLT,FLANGE,8X35 92153B 92153-Y039 2
BOLT,FLANGE,6X12 92153C 92153-Y046 1
BOLT,FLANGE,6X35 92153D 92153-Y053 8
BOLT,FLANGE,6X45 92153E 92153-Y054 1
WASHER,10MM 92200 92200-Y002 1
WASHER 92200A 92200-Y008 1
WASHER,8MM 92200B 92200-Y010 1
