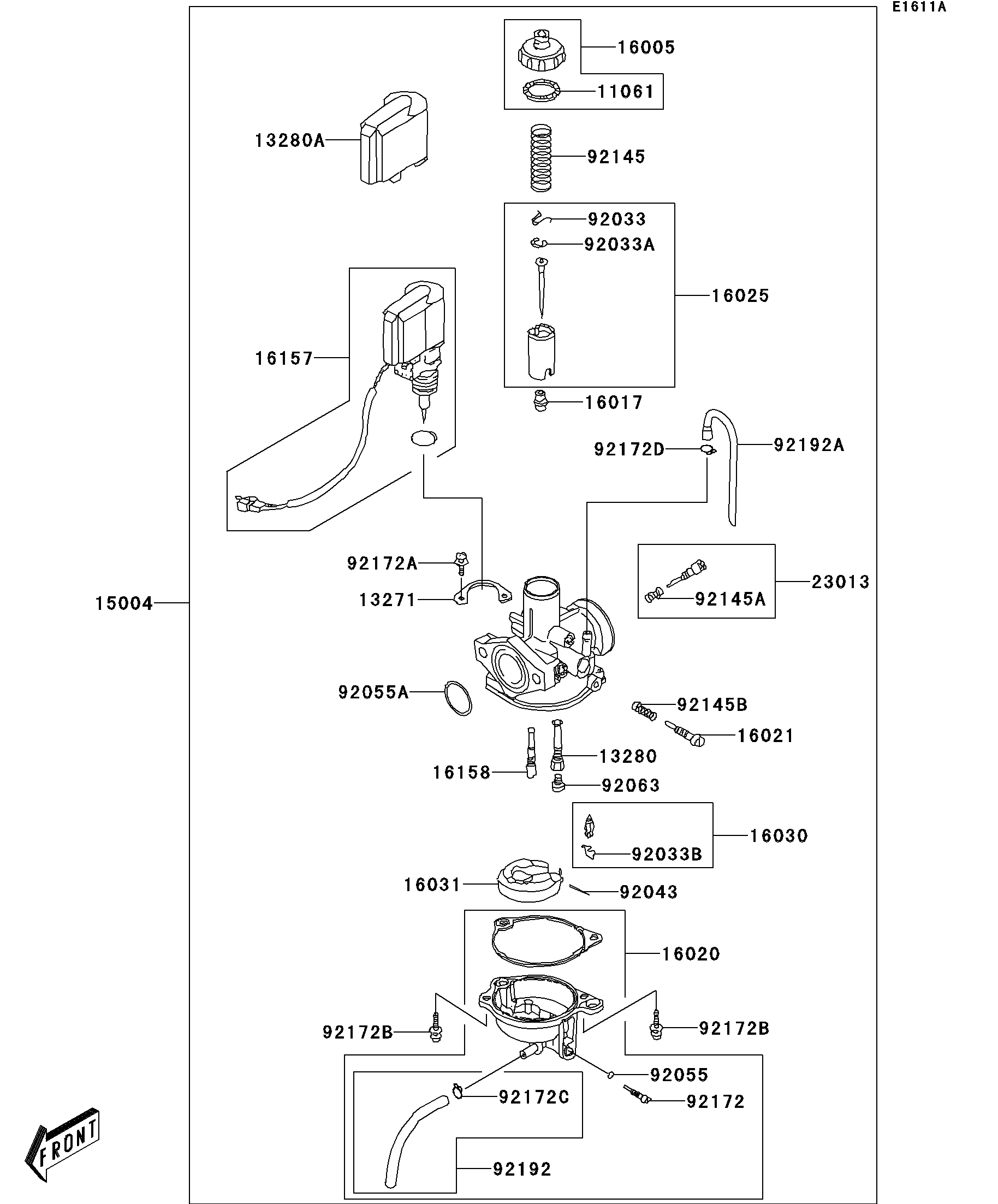

2008 KFX®50 - Carburetor(B8F/B9F)

DOWNLOAD PDF
SELECT A NEW PART
11061
13271
13280
13280A
15004
16005
16017
16020
16021
16025
16030
16031
16157
16158
23013
92033
92033A
92033B
92043
92055
92055A
92063
92145
92145A
92145B
92172
92172A
92172B
92172B
92172C
92172D
92192
92192A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET 11061 11061-Y001 1
PLATE 13271 13271-Y001 1
HOLDER,NEEDLE JET 13280 13280-Y007 1
HOLDER,CAP 13280A 13280-Y008 1
CARBURETOR-ASSY 15004 15004-Y001 1
TOP-CHAMBER 16005 16005-Y001 1
JET-NEEDLE 16017 16017-Y001 1
CHAMBER-FLOAT 16020 16020-Y001 1
SCREW-THROTTLE STOP 16021 16021-Y001 1
VALVE-THROTTLE 16025 16025-Y003 1
VALVE-FLOAT,ASSY 16030 16030-Y002 1
FLOAT 16031 16031-Y001 1
JET-STARTER 16157 16157-Y001 1
JET-SLOW 16158 16158-Y001 1
SCREW-ASSY,ADJUST 23013 23013-Y001 1
RING-SNAP 92033 92033-Y002 1
RING-SNAP 92033A 92033-Y003 1
RING-SNAP 92033B 92033-Y004 1
PIN 92043 92043-Y002 1
RING-O 92055 92055-Y001 1
RING-O 92055A 92055-Y016 1
JET-MAIN 92063 92063-Y002 1
SPRING 92145 92145-Y002 1
SPRING 92145A 92145-Y003 1
SPRING 92145B 92145-Y004 1
SCREW,DRAIN 92172 92172-Y001 1
SCREW 92172A 92172-Y012 2
SCREW 92172B 92172-Y013 2
CLAMP 92172C 92172-Y022 1
CLAMP 92172D 92172-Y023 1
TUBE,ASSY 92192 92192-Y006 1
TUBE 92192A 92192-Y011 1
