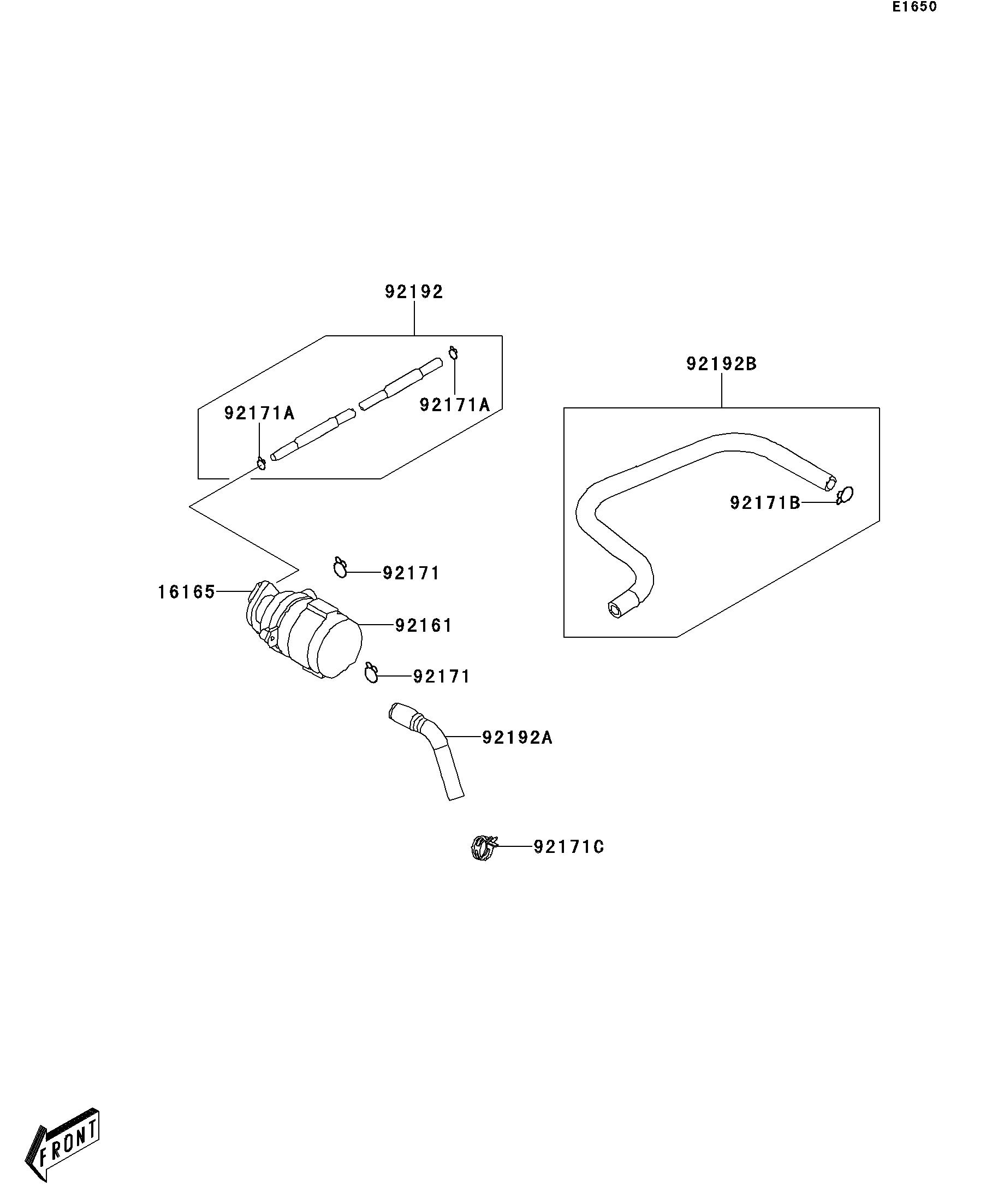

16165
92161
92171
92171
92171A
92171A
92171B
92171C
92192
92192A
92192B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SEPARATOR 16165 16165-Y002 1
DAMPER 92161 92161-Y008 1
CLAMP 92171 92171-Y016 2
CLAMP 92171A 92171-Y017 2
CLAMP 92171B 92171-Y020 1
CLAMP 92171C 92171-Y022 1
TUBE,VACUUM 92192 92192-Y007 1
TUBE,AICV-REED VALVE 92192A 92192-Y009 1
TUBE,AIR-AICV 92192B 92192-Y010 1
