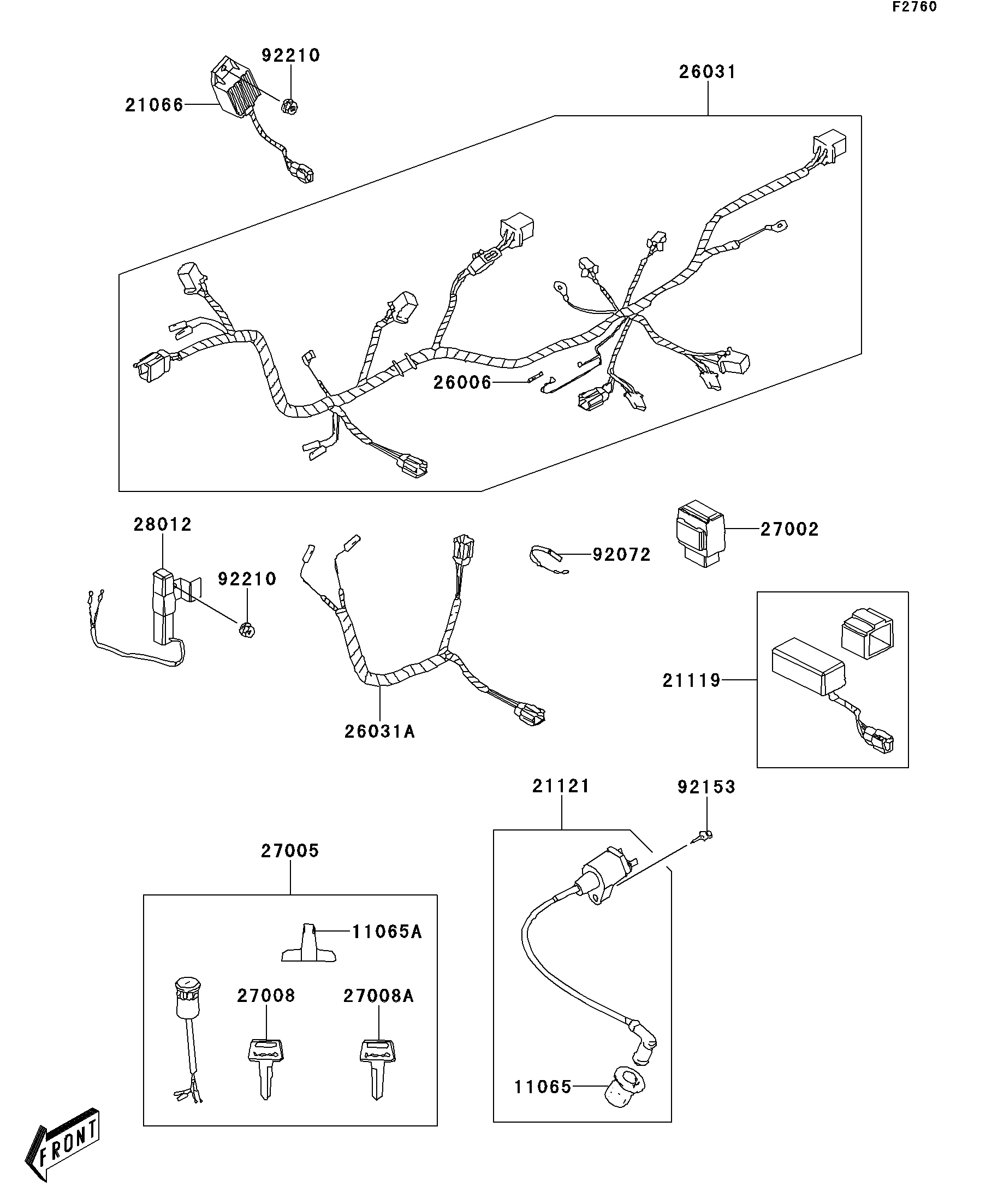

2008 KFX®90 - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
11065
11065A
21066
21119
21121
26006
26031
26031A
27002
27005
27008
27008A
28012
92072
92153
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11065 11065-Y001 1
CAP,KEY 11065A 11065-Y007 1
REGULATOR-VOLTAGE 21066 21066-Y001 1
IGNITER 21119 21119-Y002 1
COIL-IGNITION 21121 21121-Y001 1
FUSE,7A 26006 26006-Y001 2
HARNESS,MAIN 26031 26031-Y002 1
HARNESS,SUB 26031A 26031-Y003 1
RELAY-ASSY 27002 27002-Y002 1
SWITCH-ASSY-IGNITION 27005 27005-Y001 1
KEY-LOCK,BLANK 27008 27008-Y001 1
KEY-LOCK,BLANK 27008A 27008-Y002 1
RESISTOR 28012 28012-Y001 1
BAND 92072 92072-Y003 4
BOLT,FLANGE,5X22 92153 92153-Y006 1
NUT,6MM 92210 92210-Y027 2
