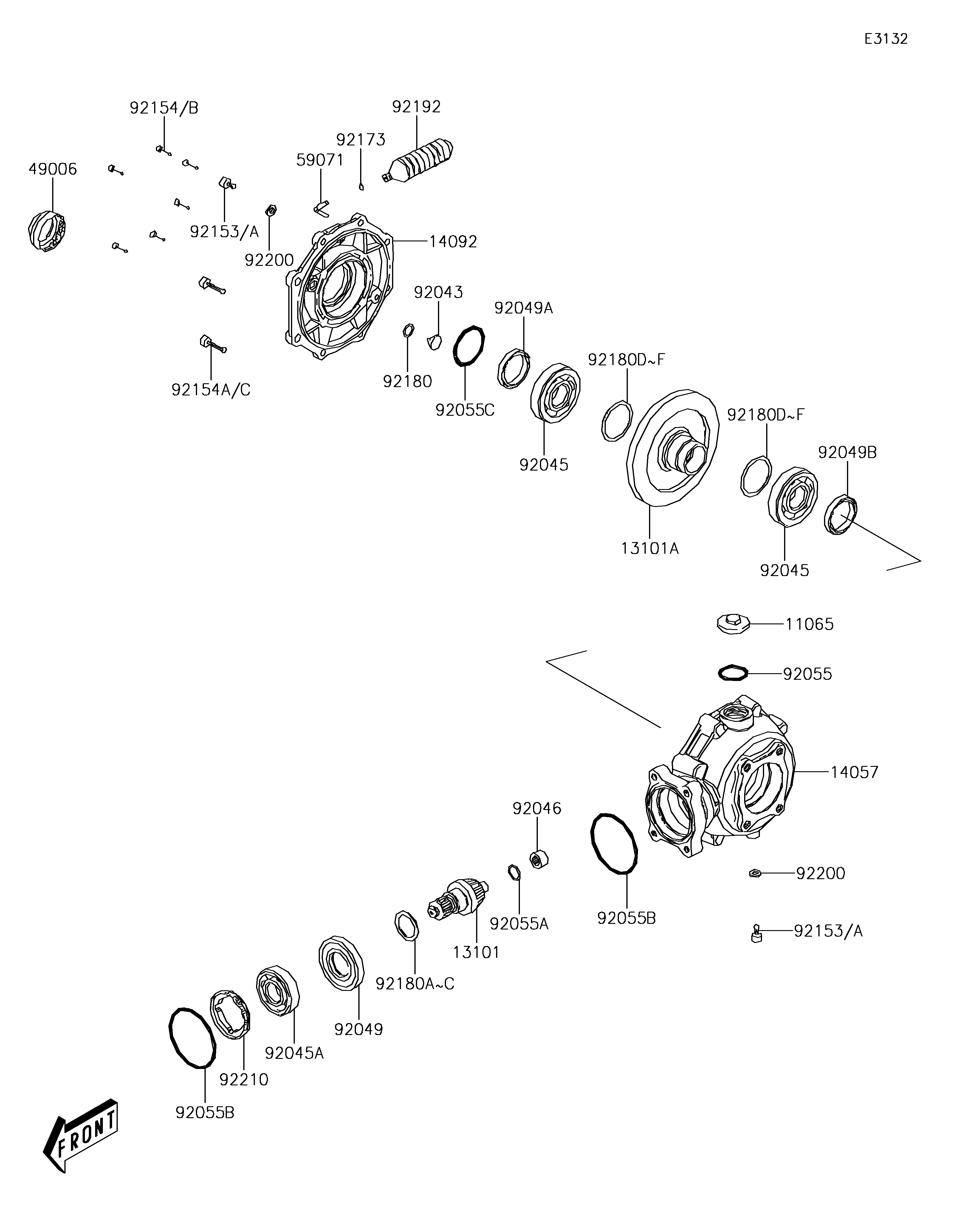

2013 BRUTE FORCE® 300 - Drive Shaft/Final Gear

DOWNLOAD PDF
SELECT A NEW PART
11065
13101
13101A
14057
14092
49006
59071
92043
92045
92045
92045A
92046
92049
92049A
92049B
92055
92055A
92055B
92055B
92055C
92153
92153
92154
92154A
92173
92180
92180A
92180B
92180C
92180D
92180D
92180E
92180E
92180F
92180F
92192
92200
92200
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11065 11065-Y006 1
GEAR-ASSY,PINION 13101 13101-Y001 1
GEAR-ASSY,RING 13101A 13101-Y002 1
CASE-COMP-GEAR 14057 14057-Y001 1
COVER,RH 14092 14092-Y018 1
BOOT,RR,AXLE SHAFT 49006 49006-Y007 1
JOINT,BREATHER 59071 59071-Y002 1
PIN,RING GEAR,STOPPER 92043 92043-Y022 1
BEARING-BALL,6009 92045 92045-Y022 2
BEARING-BALL,6206 92045A 92045-Y029 1
BEARING-NEEDLE,14X20X12 92046 92046-Y007 1
SEAL-OIL,35X70X10 92049 92049-Y020 1
SEAL-OIL,44X60X7 92049A 92049-Y021 1
SEAL-OIL,42X62X7 92049B 92049-Y022 1
RING-O,30.8MM 92055 92055-Y005 1
CIRCLIP 92055A 92055-Y031 1
RING-O,74.4X3.1 92055B 92055-Y032 2
RING-O,31.7X3.5 92055C 92055-Y033 1
BOLT,FLANGE,8X12 92153 92153-Y001 2
BOLT,8X30 92154 92154-Y033 6
BOLT,10X35 92154A 92154-Y045 2
CLAMP,10.5 92173 92173-Y023 1
SHIM,T=0.3 92180 92180-Y025 1
SHIM,PINION GEAR,A 92180A 92180-Y026 AR
SHIM,PINION GEAR,B 92180B 92180-Y027 AR
SHIM,PINION GEAR,C 92180C 92180-Y028 AR
SHIM,RING GEAR,A 92180D 92180-Y029 AR
SHIM,RING GEAR,B 92180E 92180-Y030 AR
SHIM,RING GEAR,C 92180F 92180-Y031 AR
TUBE,BREATHER 92192 92192-Y016 1
WASHER,8MM 92200 92200-Y010 2
NUT,LOCK,65MM 92210 92210-Y052 1
