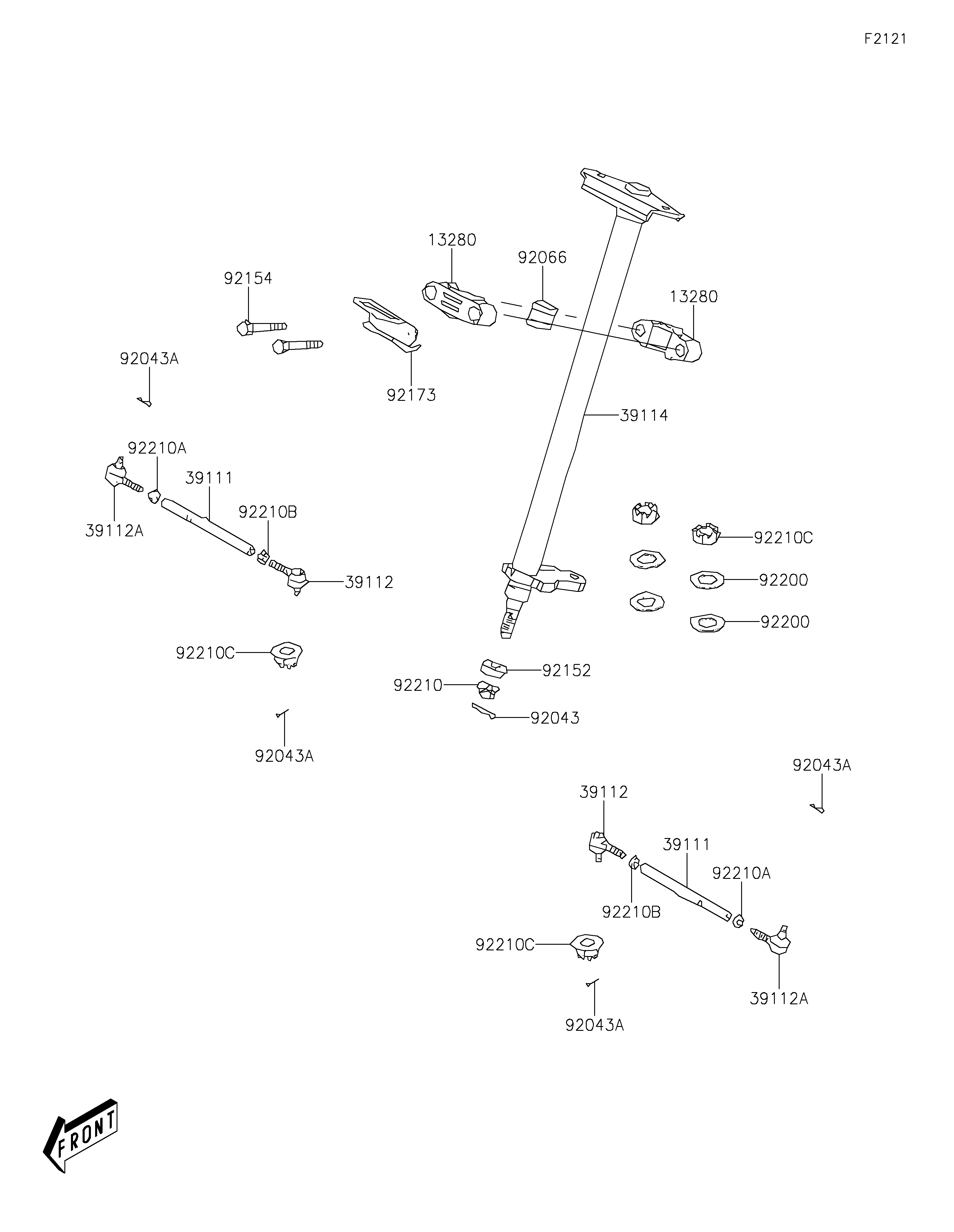

2012 BRUTE FORCE® 300 - Steering Shaft
13280
13280
39111
39111
39112
39112
39112A
39112A
39114
92043
92043A
92043A
92043A
92043A
92066
92152
92154
92173
92200
92200
92210
92210A
92210A
92210B
92210B
92210C
92210C
92210C
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOLDER,STEERING | 13280 | 13280-Y015 | 2 | ||
| ROD-TIE | 39111 | 39111-Y002 | 2 | ||
| RODEND-TIE | 39112 | 39112-Y005 | 2 | ||
| RODEND-TIE | 39112A | 39112-Y006 | 2 | ||
| SHAFT-COMP-STRG | 39114 | 39114-Y002 | 1 | ||
| PIN,3X25 | 92043 | 92043-Y009 | 1 | ||
| PIN,2.5X25 | 92043A | 92043-Y018 | 4 | ||
| PLUG | 92066 | 92066-Y011 | 1 | ||
| COLLAR | 92152 | 92152-Y019 | 1 | ||
| BOLT,FANGE,8X60 | 92154 | 92154-Y024 | 2 | ||
| CLAMP,STEERING HOLDER | 92173 | 92173-Y012 | 1 | ||
| WASHER,10MM | 92200 | 92200-Y047 | 4 | ||
| NUT,14MM | 92210 | 92210-Y012 | 1 | ||
| NUT,10MM | 92210A | 92210-Y021 | 2 | ||
| NUT,10MM | 92210B | 92210-Y022 | 2 | ||
| NUT | 92210C | 92210-Y043 | 4 |
