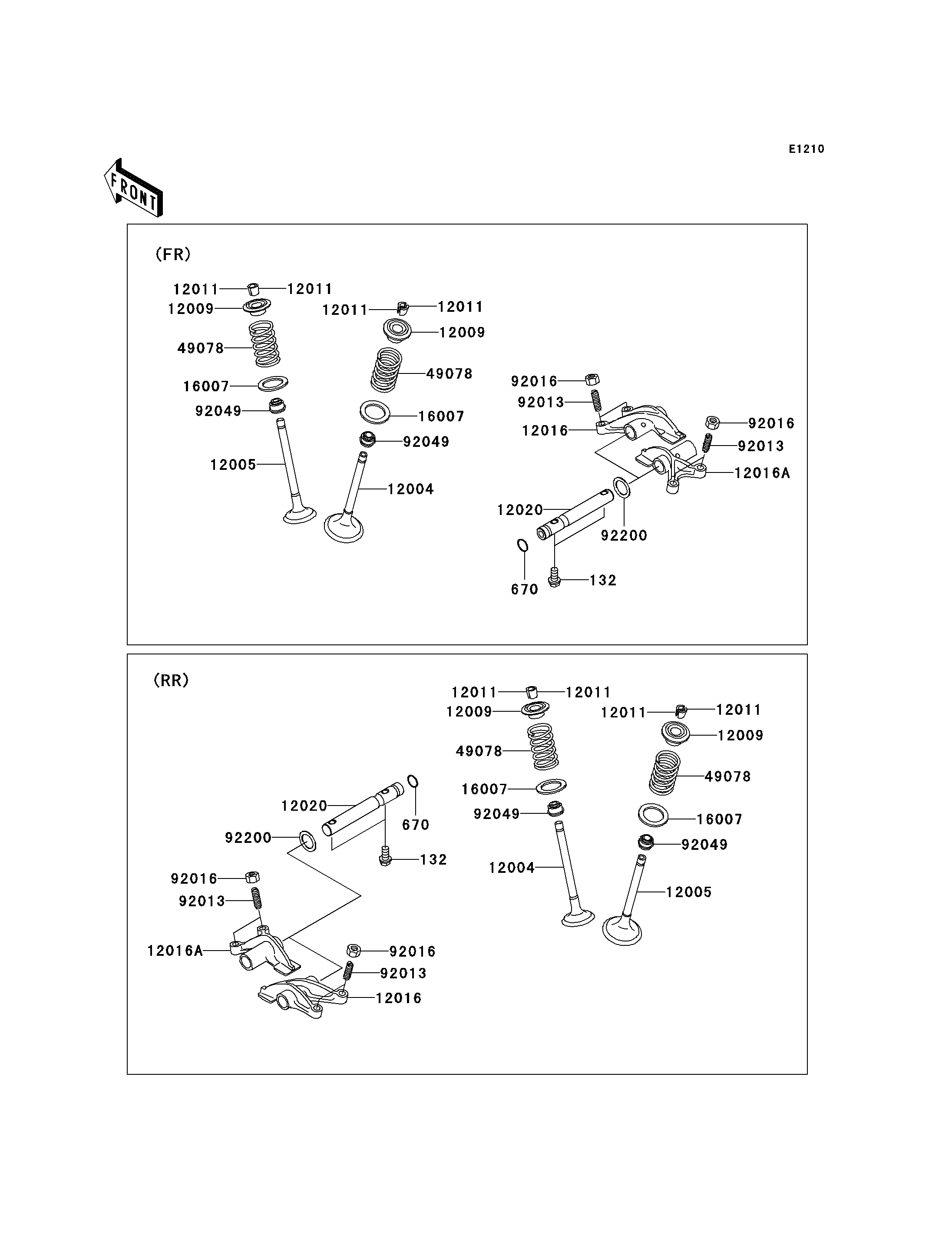

2004 Prairie 700 4x4 Hardwoods Green HD - Valve(s)(B1)
132
132
670
670
12004
12004
12005
12005
12009
12009
12009
12009
12011
12011
12011
12011
12011
12011
12011
12011
12016
12016
12016A
12016A
12020
12020
16007
16007
16007
16007
49078
49078
49078
49078
92013
92013
92013
92013
92016
92016
92016
92016
92049
92049
92049
92049
92200
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL | 132 | 132Y0612 | 8 | ||
| O RING,9MM | 670 | 670D1509 | 4 | ||
| VALVE-INTAKE | 12004 | 12004-1146 | 4 | ||
| VALVE-EXHAUST | 12005 | 12005-1349 | 4 | ||
| RETAINER-VALVE SPRING | 12009 | 12009-1056 | 8 | ||
| COLLET | 12011 | 12011-1051 | 16 | ||
| ARM-ROCKER,EXHAUST | 12016 | 12016-1128 | 2 | ||
| ARM-ROCKER,INTAKE | 12016A | 12016-1129 | 2 | ||
| SHAFT-ROCKER | 12020 | 12020-1083 | 4 | ||
| SEAT-SPRING,17.5X23.8X0.5 | 16007 | 16007-1178 | 8 | ||
| SPRING-ENGINE VALVE | 49078 | 49078-1073 | 8 | ||
| SCREW,6MM | 92013 | 92013-009 | 8 | ||
| NUT,6MM | 92016 | 92016-061 | 8 | ||
| SEAL-OIL,VSB58.558 | 92049 | 92049-1218 | 8 | ||
| WASHER,ROCKER ARM | 92200 | 92200-1508 | 4 |
| BOLT-FLANGED-SMALL | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| O RING,9MM | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| VALVE-INTAKE | |
| REF # | 12004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| VALVE-EXHAUST | |
| REF # | 12005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RETAINER-VALVE SPRING | |
| REF # | 12009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| COLLET | |
| REF # | 12011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 16 |
| DESTINATION | |
| REMARKS | |
| ARM-ROCKER,EXHAUST | |
| REF # | 12016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| ARM-ROCKER,INTAKE | |
| REF # | 12016A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SHAFT-ROCKER | |
| REF # | 12020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SEAT-SPRING,17.5X23.8X0.5 | |
| REF # | 16007 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| SPRING-ENGINE VALVE | |
| REF # | 49078 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| SCREW,6MM | |
| REF # | 92013 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| NUT,6MM | |
| REF # | 92016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,VSB58.558 | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| WASHER,ROCKER ARM | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
