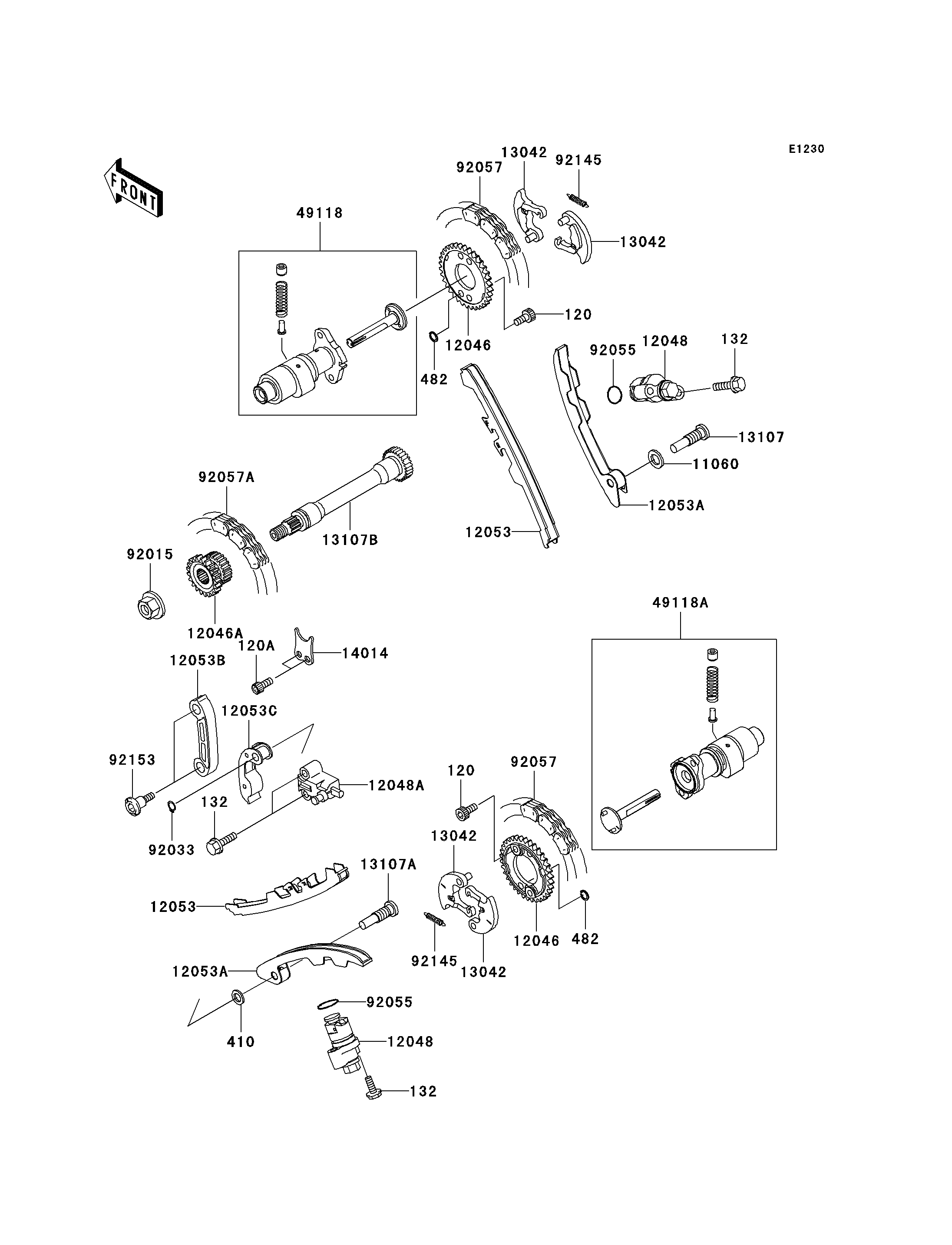

2004 Prairie 700 4x4 Hardwoods Green HD - Camshaft(s)/Tensioner(B1)
120
120
120A
132
132
132
410
482
482
11060
12046
12046
12046A
12048
12048
12048A
12053
12053
12053A
12053A
12053B
12053C
13042
13042
13042
13042
13107
13107A
13107B
14014
49118
49118A
92015
92033
92055
92055
92057
92057
92057A
92145
92145
92153
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-SOCKET,6X10 | 120 | 120P0610 | 4 | ||
BOLT-SOCKET,6X14 | 120A | 120S0614 | 2 | ||
BOLT-FLANGED-SMALL,6X30 | 132 | 132Y0630 | 6 | ||
WASHER-PLAIN-SMALL,8MM | 410 | 410B0800 | 1 | ||
CIRCLIP-TYPE-E | 482 | 482J5000 | 4 | ||
GASKET | 11060 | 11060-1966 | 1 | ||
SPROCKET,CAMSHAFT,34T | 12046 | 12046-1203 | 2 | ||
SPROCKET,2ND SHAFT,21T&17T | 12046A | 12046-1207 | 1 | ||
TENSIONER-ASSY,CAM | 12048 | 12048-1176 | 2 | ||
TENSIONER-ASSY,SECONDARY | 12048A | 12048-1177 | 1 | ||
GUIDE-CHAIN,CAMSHAFT,TENSION | 12053 | 12053-1441 | 2 | ||
GUIDE-CHAIN,CAMSHAFT,SLACK | 12053A | 12053-1442 | 2 | ||
GUIDE-CHAIN,TENSION | 12053B | 12053-1443 | 1 | ||
GUIDE-CHAIN,SLACK | 12053C | 12053-1444 | 1 | ||
WEIGHT,DECOMP | 13042 | 13042-1141 | 4 | ||
SHAFT,CHAIN GUIDE,FR | 13107 | 13107-1443 | 1 | ||
SHAFT,CHAIN GUIDE,RR | 13107A | 13107-1444 | 1 | ||
SHAFT,SECONDARY | 13107B | 13107-1514 | 1 | ||
PLATE-POSITION,DRIVE | 14014 | 14014-1148 | 1 | ||
CAMSHAFT-COMP,FR | 49118 | 49118-1193 | 1 | ||
CAMSHAFT-COMP,RR | 49118A | 49118-1194 | 1 | ||
NUT,FLANGED,12MM | 92015 | 92015-1433 | 1 | ||
RING-SNAP,8MM | 92033 | 92033-1039 | 1 | ||
RING-O,18.8X1.9 | 92055 | 92055-086 | 2 | ||
CHAIN,CAM SHAFT | 92057 | 92057-1487 | 2 | ||
CHAIN,SECONDARY SHAFT | 92057A | 92057-1488 | 1 | ||
SPRING,DECOMP | 92145 | 92145-1303 | 2 | ||
BOLT,SOCKET,6X24.5 | 92153 | 92153-1200 | 2 |
BOLT-SOCKET,6X10 | |
REF # | 120 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT-SOCKET,6X14 | |
REF # | 120A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL,6X30 | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
WASHER-PLAIN-SMALL,8MM | |
REF # | 410 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CIRCLIP-TYPE-E | |
REF # | 482 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
GASKET | |
REF # | 11060 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPROCKET,CAMSHAFT,34T | |
REF # | 12046 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPROCKET,2ND SHAFT,21T&17T | |
REF # | 12046A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TENSIONER-ASSY,CAM | |
REF # | 12048 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
TENSIONER-ASSY,SECONDARY | |
REF # | 12048A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN,CAMSHAFT,TENSION | |
REF # | 12053 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN,CAMSHAFT,SLACK | |
REF # | 12053A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN,TENSION | |
REF # | 12053B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN,SLACK | |
REF # | 12053C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WEIGHT,DECOMP | |
REF # | 13042 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SHAFT,CHAIN GUIDE,FR | |
REF # | 13107 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT,CHAIN GUIDE,RR | |
REF # | 13107A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT,SECONDARY | |
REF # | 13107B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE-POSITION,DRIVE | |
REF # | 14014 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAMSHAFT-COMP,FR | |
REF # | 49118 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAMSHAFT-COMP,RR | |
REF # | 49118A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,FLANGED,12MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-SNAP,8MM | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,18.8X1.9 | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CHAIN,CAM SHAFT | |
REF # | 92057 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CHAIN,SECONDARY SHAFT | |
REF # | 92057A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,DECOMP | |
REF # | 92145 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,6X24.5 | |
REF # | 92153 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
