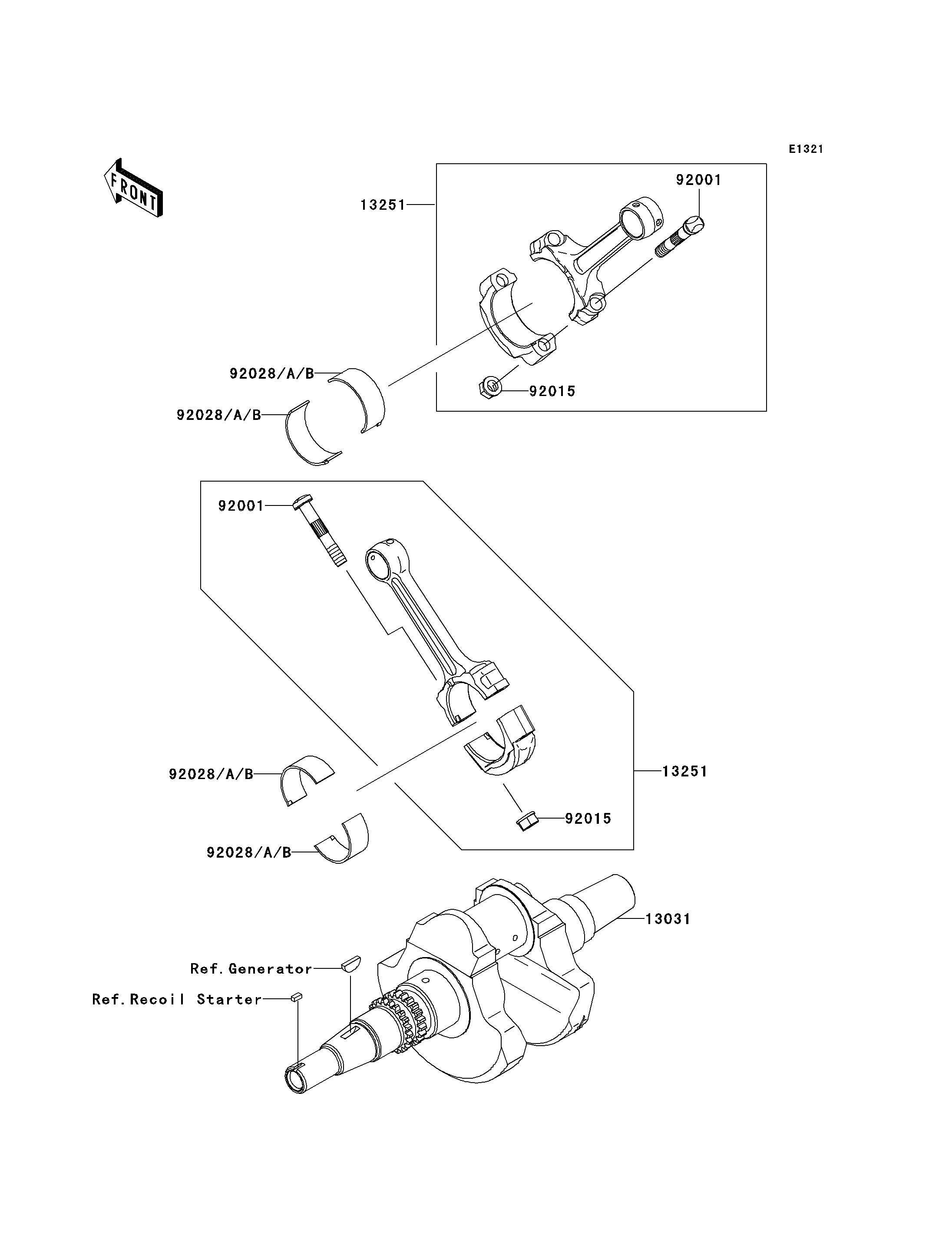

2004 Prairie 700 4x4 Hardwoods Green HD - Crankshaft
13031
13251
13251
92001
92001
92015
92015
92028
92028
92028
92028
92028A
92028A
92028A
92028A
92028B
92028B
92028B
92028B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CRANKSHAFT-COMP | 13031 | 13031-0030 | 1 | ||
| ROD-ASSY-CONNECTING | 13251 | 13251-1143 | 2 | ||
| BOLT,CONNECTING ROD | 92001 | 92001-1980 | 4 | ||
| NUT,FLANGED,8MM | 92015 | 92015-1311 | 4 | ||
| BUSHING,CONNECTING ROD,GREEN | 92028 | 92028-1961 | AR | ||
| BUSHING,CONNECTING ROD,YELLOW | 92028A | 92028-1962 | 4 | ||
| BUSHING,CONNECTING ROD,BROWN | 92028B | 92028-1963 | AR |
