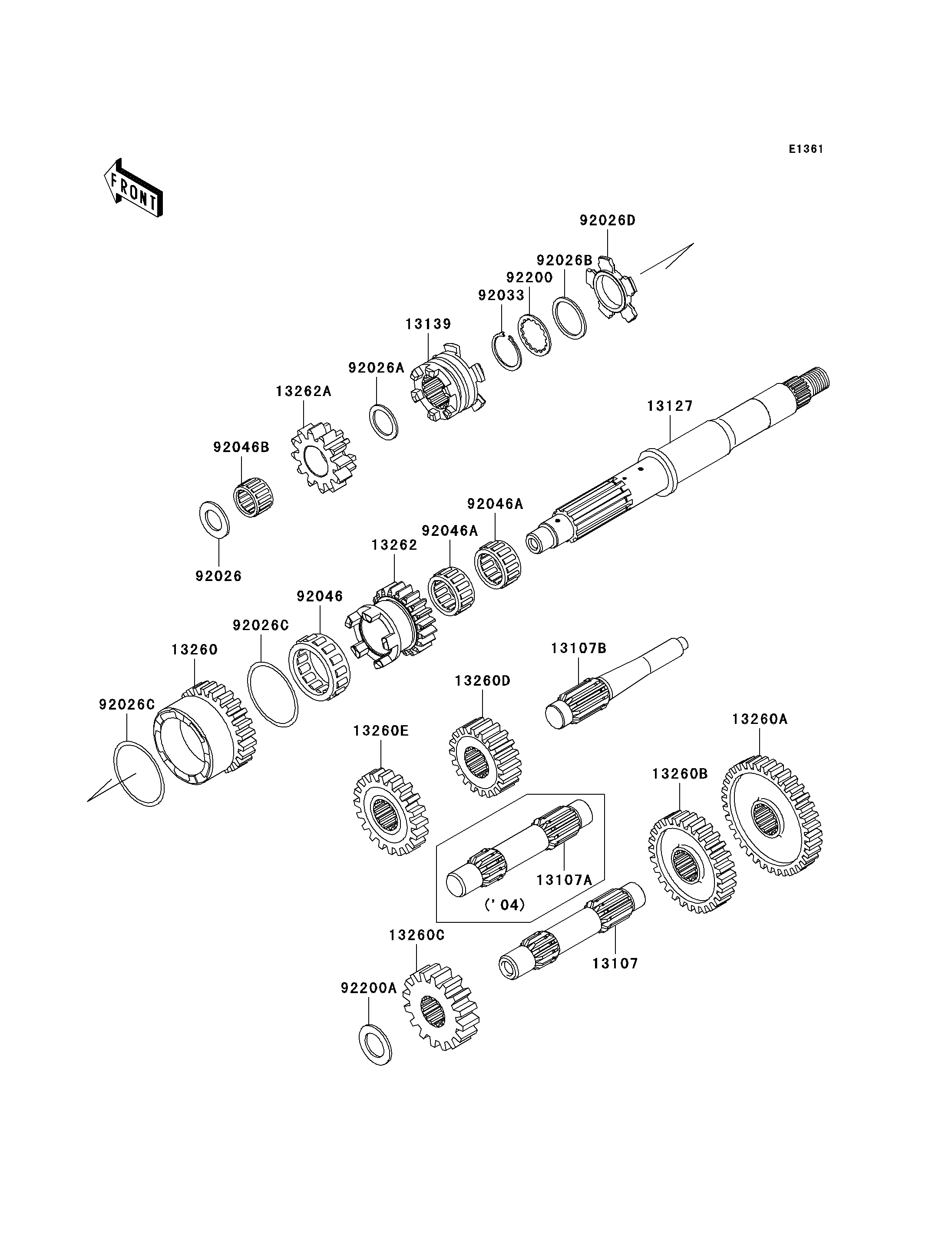

2004 Prairie 700 4x4 Hardwoods Green HD - Transmission

DOWNLOAD PDF
SELECT A NEW PART
13107A
13107B
13127
13139
13260
13260A
13260B
13260C
13260D
13260E
13262
13262A
92026
92026A
92026B
92026C
92026C
92026D
92033
92046
92046A
92046A
92046B
92200
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT,COUNTER 13107A 13107-1436 1
SHAFT,REVERSE,IDLE 13107B 13107-1437 1
SHAFT-TRANSMISSION INPUT 13127 13127-1282 1
SHIFTER 13139 13139-0003 1
GEAR,INPUT HIGH,26T 13260 13260-1867 1
GEAR,DRIVEN LOW,36T 13260A 13260-1869 1
GEAR,DRIVEN HIGH,30T 13260B 13260-1870 1
GEAR,OUTPUT DRIVE,18T 13260C 13260-1871 1
GEAR,OUTPUT REVERSE,16T 13260D 13260-1872 1
GEAR,DRIVEN REVERSE,16T 13260E 13260-1873 1
GEAR,INPUT LOW,20T 13262 13262-0234 1
GEAR,INPUT REVERSE,12T 13262A 13262-0235 1
SPACER,17.3X30X2.0 92026 92026-1415 1
SPACER,21.2X29X1.6 92026A 92026-1568 1
SPACER,28.2X34.5X1.6 92026B 92026-1587 1
SPACER,48.2X54.3X1.0 92026C 92026-1599 2
SPACER,HI&LOW 92026D 92026-1600 1
RING-SNAP,25.9X30.6X1.2 92033 92033-1037 1
BEARING-NEEDLE,HIGH GEAR 92046 92046-1276 1
BEARING-NEEDLE,FWF-283317 92046A 92046-1278 2
BEARING-NEEDLE,REVERSE GEAR 92046B 92046-1279 1
WASHER,28.5X34.0X1.5 92200 92200-1240 1
WASHER,20.3X33X2.0 92200A 92200-1351 1
